Cisco 7600 Series Module Guide

2-33
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
Gigabit Ethernet Switching Modules

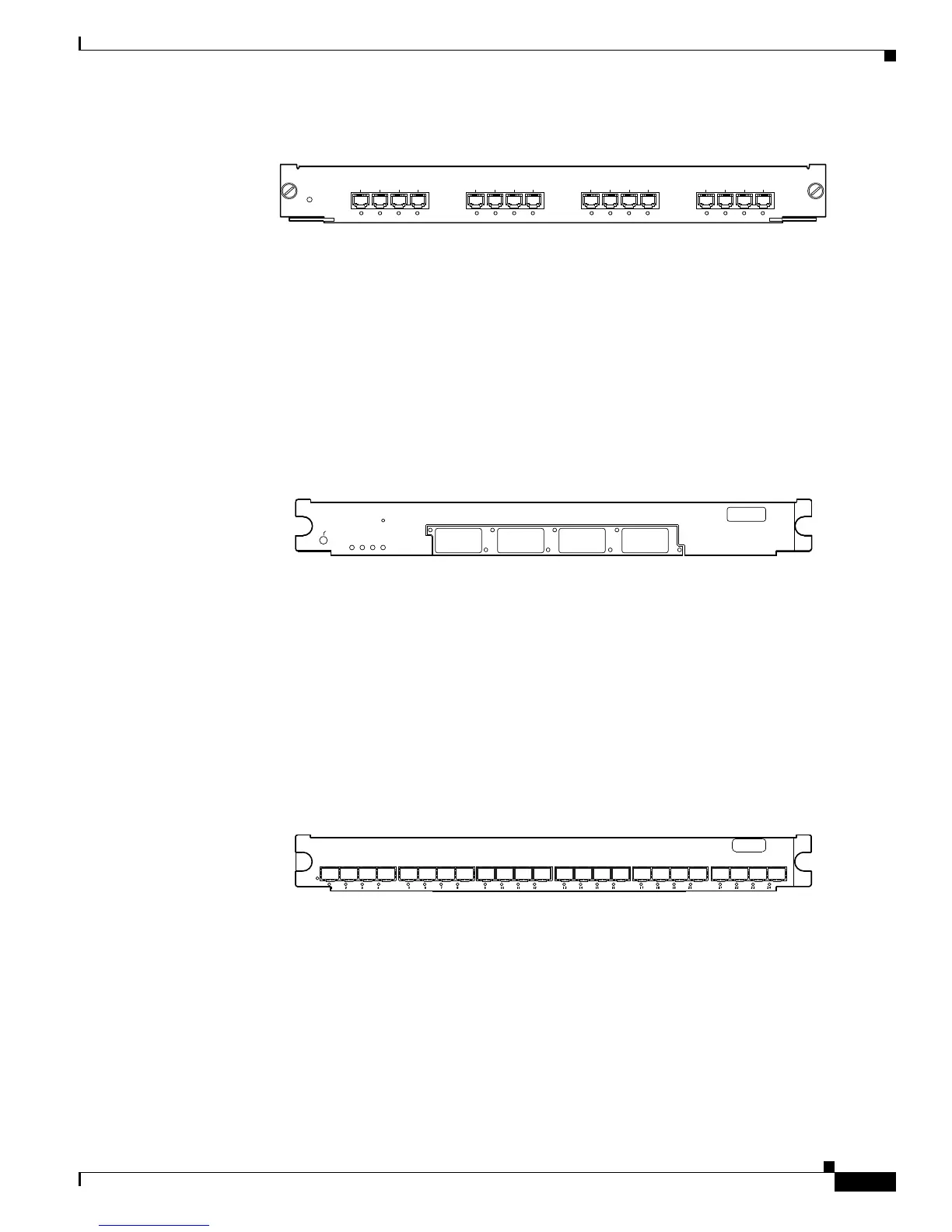

Figure 2-30 16-Port 10/100/1000BASE-T Gigabit Ethernet Switching Module (WS-X6516-GE-TX)
The front panel LEDs are described in Table 2-3 on page 2-35.
4-Port 10 Gigabit Ethernet Switching Module (WS-X6704-10GE)
The 4-port 10-Gigabit Ethernet switching module (WS-X6704-10GE) provides 4 switched, 10-Gigabit
Ethernet ports. (See
Figure 2-31.) The four ports support hot-swappable 10GBASE-LR long-reach or
10GBASE-ER extended reach XenPak optical transceivers. The WS-X6704-10GE module has dual
fabric channel interface and requires the Supervisor Engine
720.
The QoS port architecture (Rx/Tx) for this module is 1q8t/1p7q8t.
Figure 2-31 4-Port 10 Gigabit Ethernet Switching Module (WS-X6704-10GE)
The front panel LEDs are described in Table 2-3 on page 2-35.
24-Port Gigabit Ethernet Switching Module (WS-X6724-SFP)
The 24-port Gigabit Ethernet switching module (WS-X6724-SFP) provides 24 switched, Gigabit
Ethernet ports. (See
Figure 2-32.) The 24 ports support hot-swappable Small Form-Factor Pluggable
(SFP) 1000BASE-SX, 1000BASE-LX/LH, and 1000BASE-ZX optical transceivers. The
WS-X6724-SFP module has single fabric channel interface and requires the Supervisor Engine
720.
The QoS port architecture (Rx/Tx) for this module is 1q8t/1p3q8t.
Figure 2-32 24-Port Gigabit Ethernet Switching Module (WS-X6724-SFP)
The front panel LEDs are described in Table 2-3 on page 2-35.
48-Port Gigabit Ethernet Switching Module (WS-X6748-SFP)
The 48-port Gigabit Ethernet switching module (WS-X6748-SFP) provides 48 switched, Gigabit
Ethernet ports. (See
Figure 2-33.) The 48 ports support hot-swappable Small Form-Factor Pluggable
(SFP) 1000BASE-SX, 1000BASE-LX/LH, and 1000BASE-ZX optical transceivers. The
WS-X6748-SFP module has a dual fabric channel interface and requires the Supervisor Engine
720.
The QoS port architecture (Rx/Tx) for this module is 1q8t/1p3q8t.
63187
WS-X6516-GE-T X
16 PORT 1000 BASE-T GE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LINK
STATUS
LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK
WS-X6704-10GE
STATUS
LINK 1
LINK 2
LINK 3
LINK 4
PORT 1
TX RX
PORT 2
TX RX
PORT 3
TX RX
PORT 4
TX RX
4 PORT 10 GIGABIT ETHERNET
99885
STATUS
WS-X6724-SFP
24 PORT GIGABIT ETHERNET-SFP
99886
