Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
Gigabit Ethernet Switching Modules
Note These modules are Class 1 laser products. Refer to the Regulatory Compliance and Safety Information
for the Cisco 7600 Series Routers for information on working with lasers.
16-Port Gigabit Ethernet Switching Module (WS-X6316-GE-TX)
The 16-port Gigabit Ethernet switching module (WS-X6316-GE-TX) provides 16 switched, full-duplex
Gigabit Ethernet ports. (See
Figure 2-21.) Ports have RJ-45 connectors for Category 5 UTP. The
WS-X6316-GE-TX module has enhanced QoS features.
The QoS port architecture (Rx/Tx) for this module is 1p1q4t/1p2q2t.

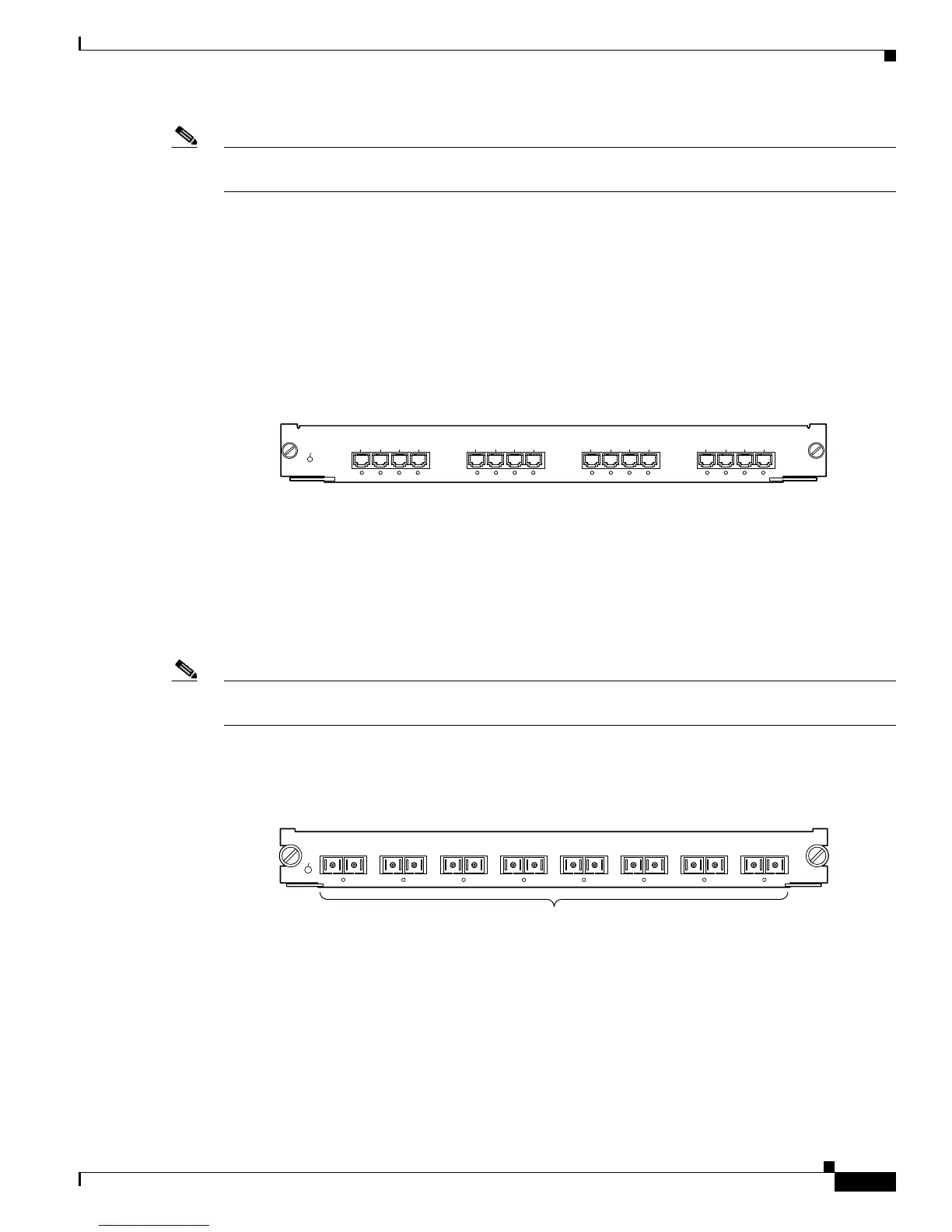

Figure 2-21 16-Port Gigabit Ethernet Switching Module (WS-X6316-GE-TX)
The front panel LEDs are described in Table 2-3 on page 2-35.
8-Port Gigabit Ethernet Switching Module (WS-X6408-GBIC)
The 8-port Gigabit Ethernet switching module (WS-X6408-GBIC) provides eight switched, full-duplex
Gigabit Ethernet ports that you can configure with any combination of 1000BASE-SX, LX/LH, and ZX
GBICs, copper GBICs, or Coarse Wave Division Multiplexer (CWDM) GBICs. (See
Figure 2-22.)
Note CWDM GBICs are used with the CWDM Passive Optical System. For more information on the CWDM
Passive Optical System, refer to the Installation Note for the CWDM Passive Optical System.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 2-22 8-Port Gigabit Ethernet Switching Module (WS-X6408-GBIC)
The front panel LEDs are described in Table 2-3 on page 2-35.
8-Port Gigabit Ethernet Switching Module (WS-X6408A-GBIC)
The 8-port Gigabit Ethernet switching module (WS-X6408A-GBIC) provides eight switched,
full-duplex Gigabit Ethernet ports that you can configure with any combination of 1000BASE-SX,
LX/LH, and ZX GBICs, copper GBICs, or Coarse Wave Division Multiplexer (CWDM) GBICs. (See
Figure 2-23.) The WS-X6408A-GBIC module has enhanced QoS features.
44314
WS-X6316-GE-7X
16 PORT 1000 BASE-T GE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK LINK
S
T
A
T
U
S
16061
8 PORT GIGABIT ETHERNET
WS-X6408
1
LINK
STATUS
2345678
LINK LINK LINK LINK LINK LINK LINK
1000BASE-X GBIC ports
