2-26
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
10/100 and 10/100/1000 Ethernet Switching Modules

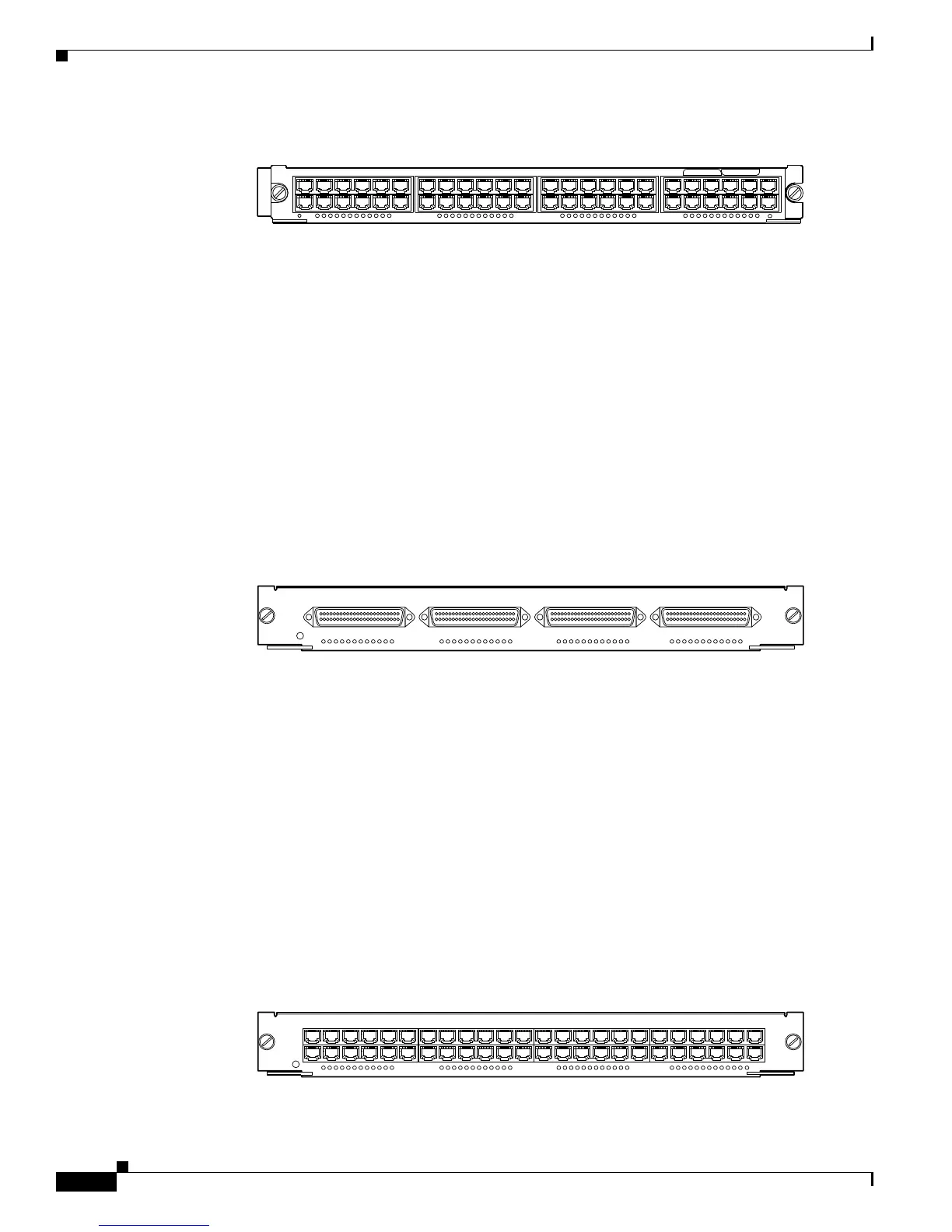

Figure 2-17 48-Port 10/100/1000BASE-T Ethernet Switching Module (WS-X6548V-GE-TX)
The front panel LEDs are described in Table 2-3 on page 2-35.
48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module
(WS-X6548-RJ-21)
The 48-port 10/100BASE-T switching module (WS-X6548-RJ-21) provides 48 switched, 10/100-Mbps,
full- or half-duplex ports. (See
Figure 2-18.) The module has 4 RJ-21 connectors (12 ports per
connector) for Category 5, Category 5e, or Category 6 cable. The WS-X6548-RJ-21 module has 1-MB
per-port packet buffers and a single fabric channel interface. The switching module is upgradable to
support distributed forwarding with an optional Distributed Forwarding Card (WS-F6K-DFC). The
WS-X6548-RJ-21 module is auto-MDI/MDIX capable; you can use either straight or crossover cable,
and the module will automatically detect and adjust for the cable type.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.
Figure 2-18 48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module (WS-X6548-RJ-21)
The front panel LEDs are described in Table 2-3 on page 2-35.
48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module
(WS-X6548-RJ-45)
The 48-port 10/100BASE-T switching module (WS-X6548-RJ-45) provides 48 switched, 10/100-Mbps,
full- or half-duplex ports. (See
Figure 2-19.) Ports have RJ-45 connectors for Category 5, 5e, and 6
cable. The WS-X6548-RJ-45 module has 1-MB per-port packet buffers and a single fabric channel
interface. The switching module is upgradable to support distributed forwarding with an optional
Distributed Forwarding Card (WS-F6K-DFC). The WS-X6548-RJ-45 module is auto-MDI/MDIX
capable; you can use either straight or crossover cable, and the module will automatically detect and
adjust for the cable type.
The QoS port architecture (Rx/Tx) for this module is 1p1q0t/1p3q1t.
Figure 2-19 48-Port 10/100BASE-T Fabric-Enabled Ethernet Switching Module (WS-X6548-RJ-45)
The front panel LEDs are described in Table 2-3 on page 2-35.
90852
WS-X6148-GE-TX
STATUS
48 PORT 10/100/1000
BASE-T GE
SWITCHING MODULE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
PHONE
1
2
11
12
13
14
23
24
25
26
35
36
37
38
47
48
63672
48 PORT 10/100 BASE-T
ETHERNET
SWITCHING MODULE
WS-X6548-RJ21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
13-24
1-12
25-36
37-48
STATUS
63673
48 PORT 10/100 BASE-T
ETHERNET
SWITCHING MODULE
WS-X6548
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
PHONE
STATUS
1
2
11
12
13
14
35
36
37
38
47
48
23
24
25
26
