2-22
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 2 Ethernet and Gigabit Ethernet Switching Modules
10/100 and 10/100/1000 Ethernet Switching Modules
24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-MM)
The 24-port 100BASE-FX switching module (WS-X6324-100FX-MM) provides 24 switched,
100-Mbps, full- or half-duplex ports. (See
Figure 2-10.) The module has 24 MT-RJ connectors for
connection to the MMF cable.
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and Safety Information for
the Cisco 7600 Series Routers for information on working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.

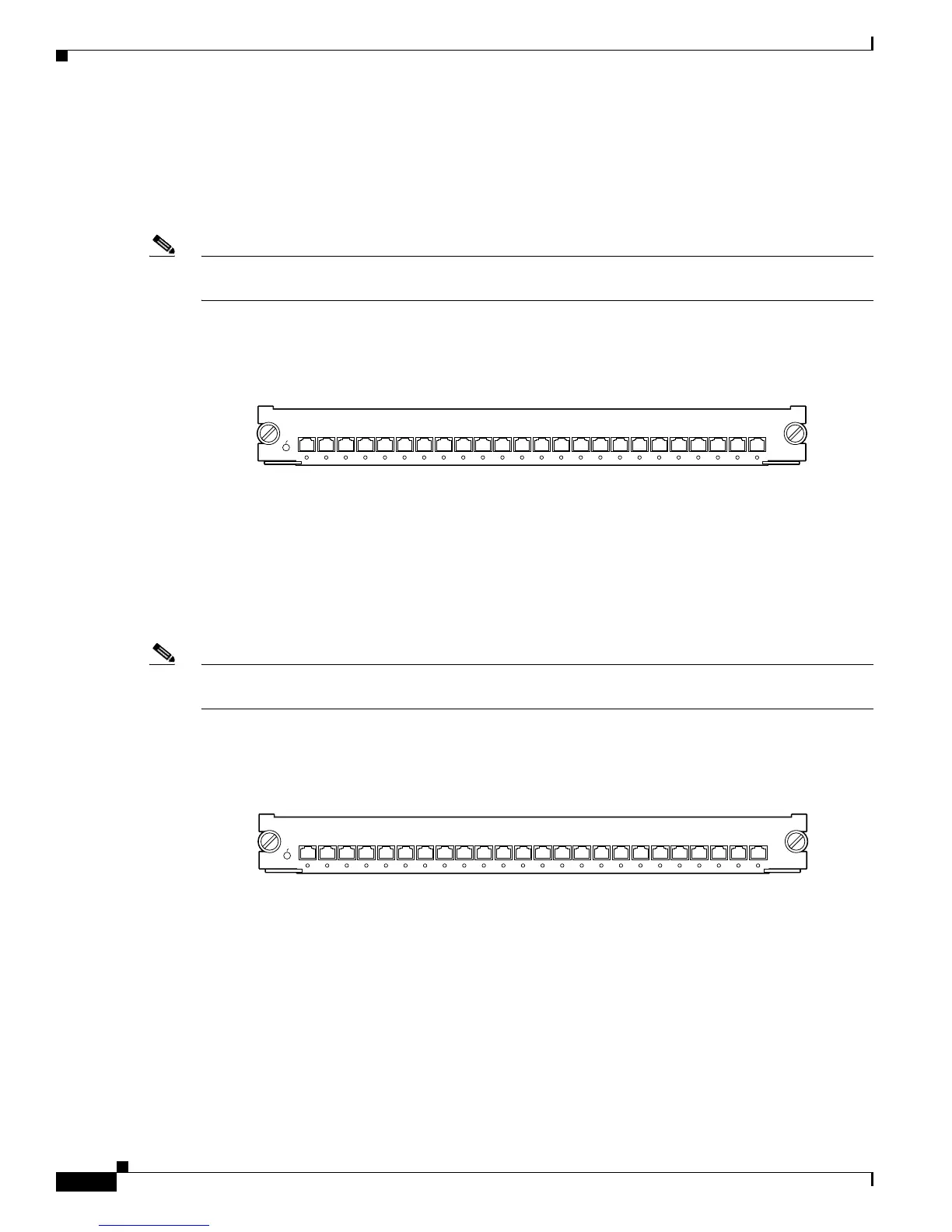

Figure 2-10 24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-MM)
The front panel LEDs are described in Table 2-3 on page 2-35.
24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-SM)
The 24-port 100BASE-FX switching module (WS-X6324-100FX-SM) provides 24 switched, 100-Mbps,
full- or half-duplex ports. (See
Figure 2-11.) The module has 24 MT-RJ connectors for connection to
SMF cable.
Note This module is a Class 1 laser product. Refer to the Regulatory Compliance and Safety Information for
the Cisco 7600 Series Routers for information on working with lasers.
The QoS port architecture (Rx/Tx) for this module is 1q4t/2q2t.
Figure 2-11 24-Port 100BASE-FX Ethernet Switching Module (WS-X6324-100FX-SM)
The front panel LEDs are described in Table 2-3 on page 2-35.
24 PORT 100FX-MMF
WS-X6324-100FX-MM
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
STATUS
44744
24 PORT 100FX-SMF
WS-X6324-100FX-SM
1
LINK
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
9
LINK
10
LINK
11
LINK
12
LINK
13
LINK
14
LINK
15
LINK
16
LINK
17
LINK
18
LINK
19
LINK
20
LINK
21
LINK
22
LINK
23
LINK
24
LINK
STATUS
44745
