Chapter 11 Switch Fabric Modules
Switch Fabric Module 2 (WS-X6500-SFM2)
The front panel on the Switch Fabric Module has a 2-line by 20-character LCD display. The display
allows you to monitor the module’s input/outport port traffic and local bus traffic. The display also shows
system information.
Two push button switches control the LCD display:
• SELECT—This switch is used for LCD display menu selection.
• NEXT—This switch is used to scroll to the next item on the LCD display menu.
Switch Fabric Module 2 (WS-X6500-SFM2)
The Switch Fabric Module 2 (WS-X6500-SFM2) can be installed in any Cisco 7600 series router. (See
Figure 11-2.) The Switch Fabric Module 2 requires Supervisor Engine 2 and must be installed in slot 5
or slot 6 of the Cisco 7606, Cisco 7609, or OSR-7609 routers, or in slot 7 or slot 8 of the Cisco 7613
router.
Note The Switch Fabric 2 module cannot be installed in the Cisco 7603 router.
For redundancy, you can install a second Switch Fabric Module 2. The first-installed Switch Fabric
Module
2 functions as the primary module. When you install two modules at the same time, the module
in slot
5 or slot 7 functions as the primary module, and the module installed in slot 6 or slot 8 functions
as the standby. If you reset the Switch Fabric Module
2 installed in slot 5 or slot 7, the module in slot 6
or slot
8 becomes the primary.

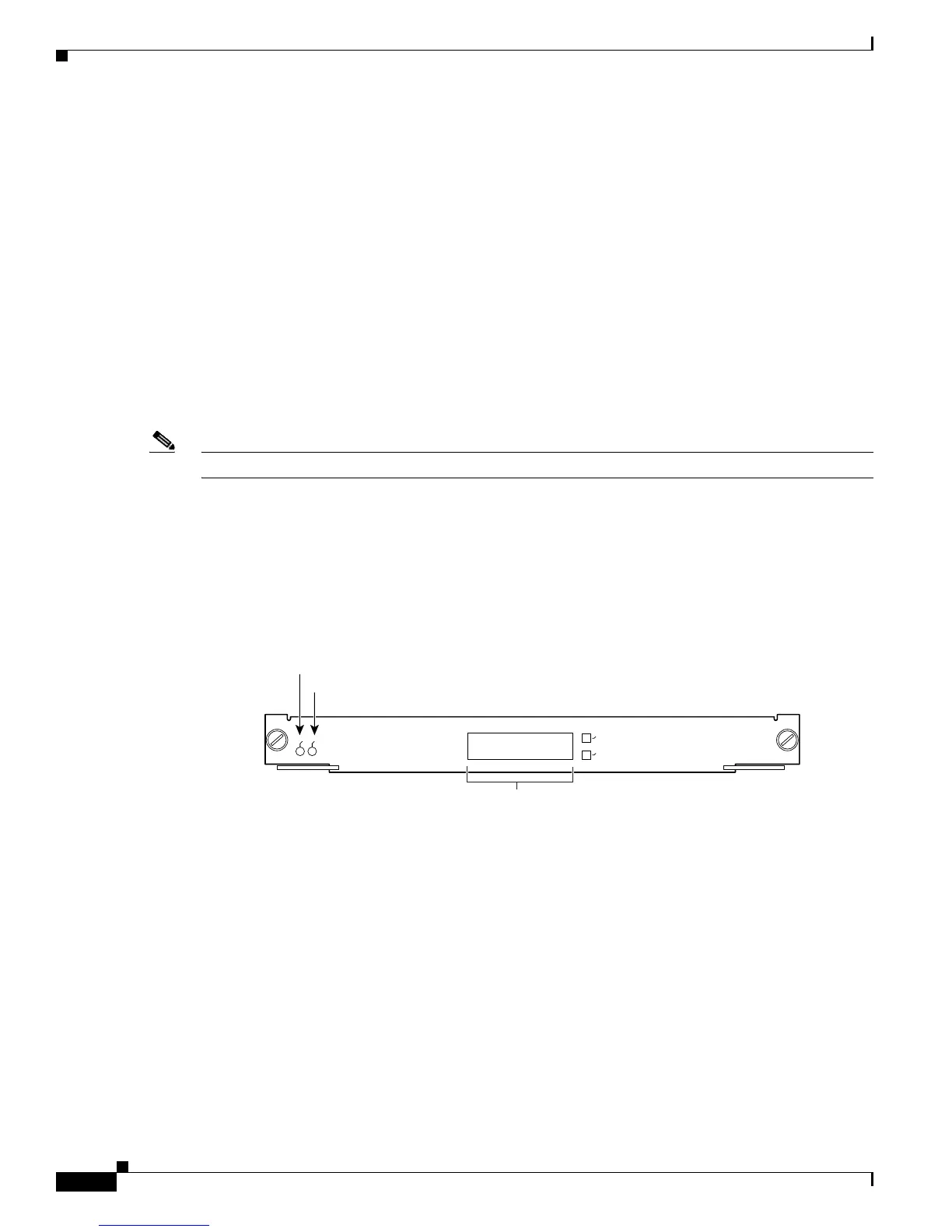

Figure 11-2 Switch Fabric Module 2 (WS-X6500-SFM2)
Two front-panel LEDs provide status information for the module and indicate whether the module is
active. The STATUS LED functions are listed in
Table 7-1 on page 7-2. The ACTIVE LED is green when
the Switch Fabric Module is operational and active and is orange when the module is in standby mode.
The front panel of the Switch Fabric Module 2 has a 2-line by 20-character LCD display. The display
allows you to monitor the module’s input/outport port traffic and local bus traffic. The display also shows
system information.
Two push button switches control the LCD display:
• SELECT—This switch is used for LCD display menu selection.
• NEXT—This switch is used to scroll to the next item on the LCD display menu.
51177
SWITCH FABRIC MDL
S
TA
TU
S
S
EL
E
CT
N
EXT
WS-X6500-SFMIA
A
C
TIV
E
STATUS LED
ACTIVE LED
2 Line X 20 character
LCD display
