12-6
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 12 Voice-Related Modules
24-Port FXS Analog Interface Module (WS-X6624-FXS)
24-Port FXS Analog Interface Module (WS-X6624-FXS)
The 24-port FXS analog interface module (WS-X6624-FXS) interfaces connect directly to standard
analog telephones or fax machines. The module interfaces supply ring voltage and dial tone
. The module
emulates the central office (CO) or private branch exchange (PBX), providing a service to an analog
telephone or fax machine. The telephone or fax machine connected through the FXS module operates as
if it were connected to a normal CO or PBX line.
The front panel LEDs are shown in Figure 12-5.
Note When installing the WS-X6624-FXS analog interface module in a chassis, you must have a system
ground cable attached to the chassis. Refer to the c7600 Series Installation Guide for the system
grounding cable installation procedure.

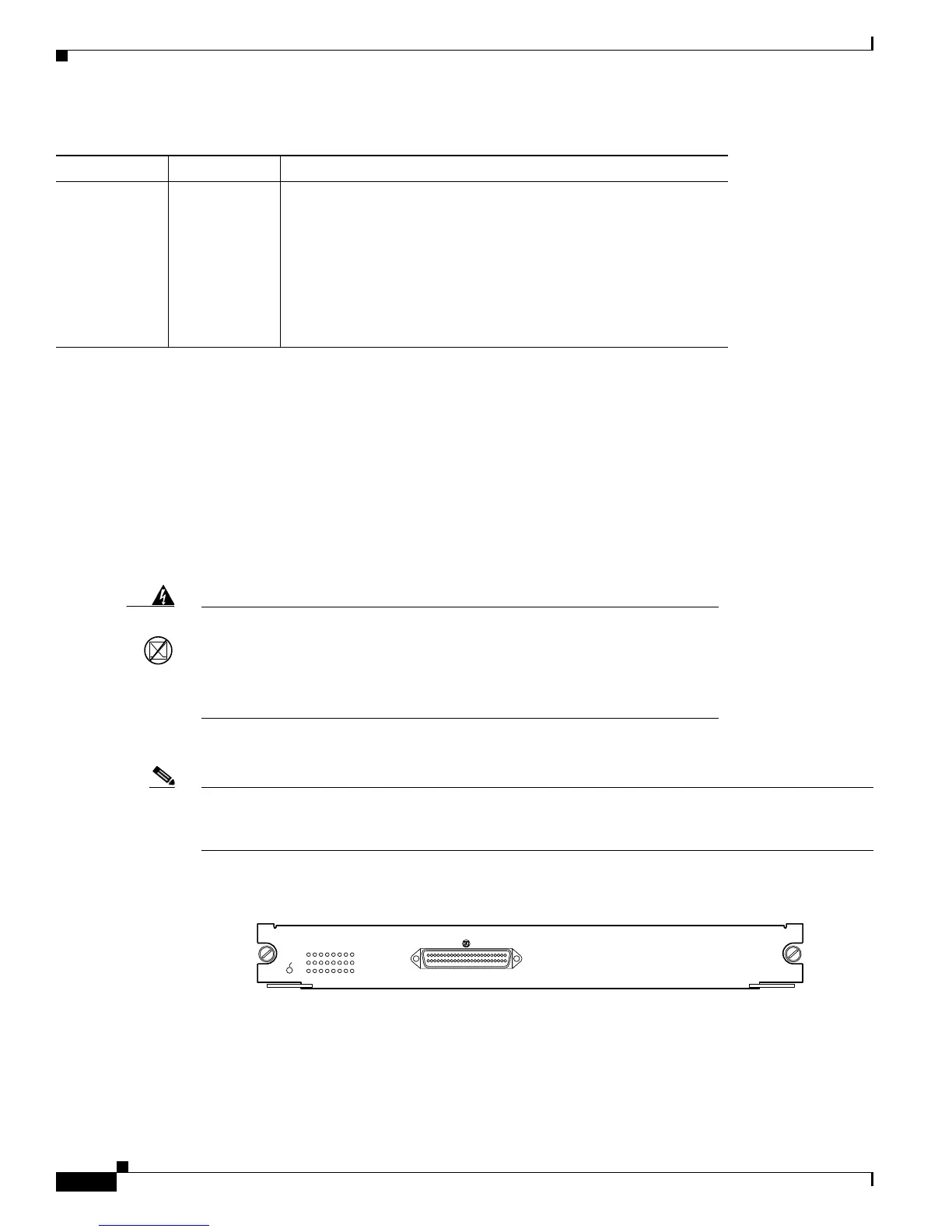

Figure 12-5 24-Port FXS Analog Interface Module (WS-X6624-FXS)
When the 24-port FXS analog interface module is powered up, it initializes various hardware
components and communicates with the supervisor engine.
The front panel LEDs are described in Table 12-5.
LINK Green The link is up.
Yellow Frame synchronization has been lost or an RAI signal has been
received.
Flashing
Yellow
The SPAN is in loopback.
Red No carrier is detected or an AIS signal has been received.
Off The registration with Cisco CallManager is lost.
Table 12-4 8-Port PSTN Interface Module LEDs (continued)
LED Color/State Description
Warning
If the symbol of suitability with an overlaid cross appears above a port, you
must not connect the port to a public network that follows the European Union
standards. Connecting the port to this type of public network can cause severe
personal injury or can damage the unit.
Statement 1031
33431
WS-X6624-FXS
24 PORT FXS ANALOG STATION
1
4
7
10
13
16
19
22
2
5
8
11
14
17
20
23
3
6
9
12
15
18
21
24
24-1
STATUS
