Chapter 2 Switch Installation
Installing the Switch
Table-Mounting or Shelf-Mounting
To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope. Attach the four rubber feet to the recessed areas at the bottom of the chassis (see Figure 2-11).

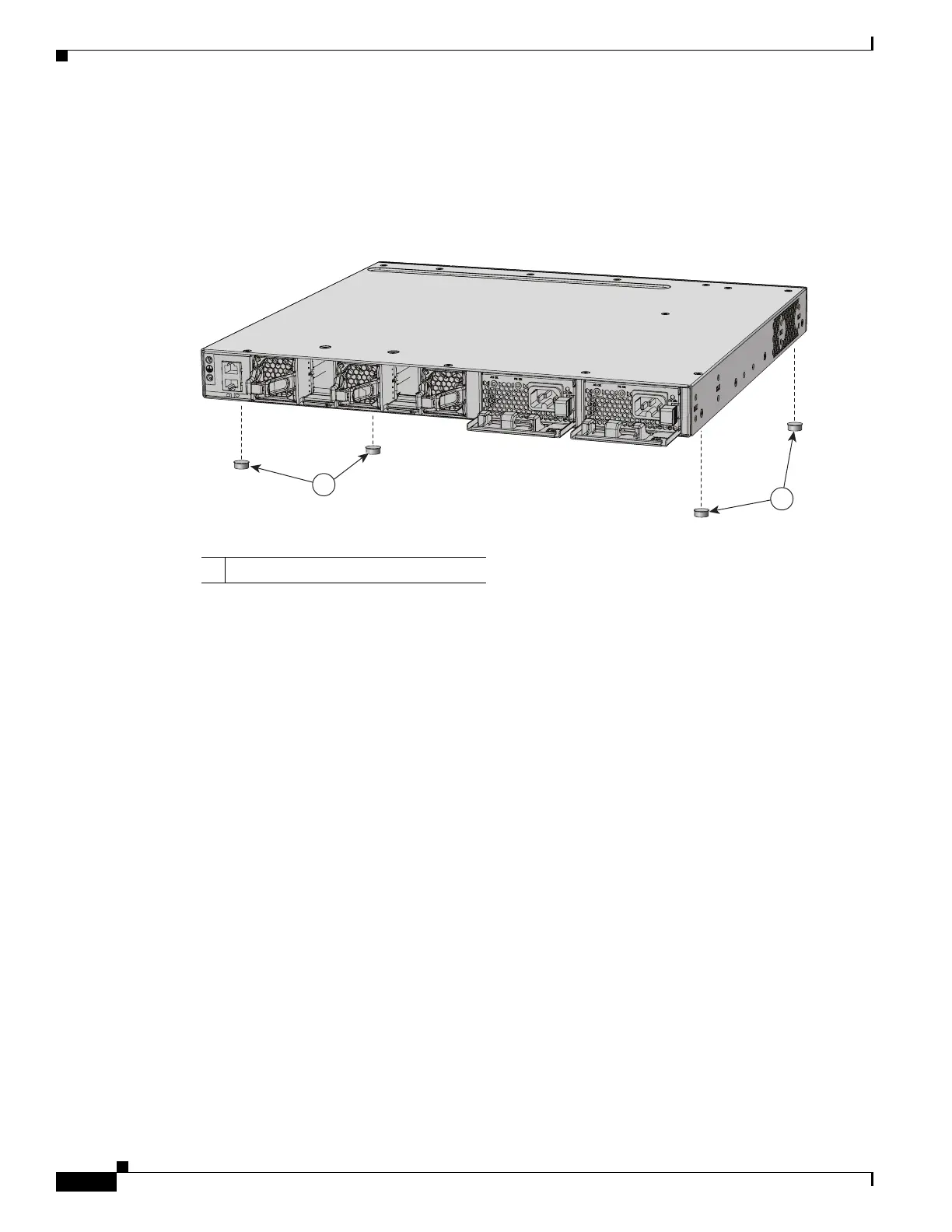

Figure 2-11 Attaching the Adhesive Pads for Table-Mounting or Shelf-Mounting
After you complete the switch installation, see the “After Installing the Switch” section on page 2-14 for
more information about the switch configuration.
After Installing the Switch
After the switch is installed, you can configure the switch using various options.
• Configure the switch by running the Express Setup to enter the initial switch configuration. For
instructions, see the Catalyst 3650 Switch Getting Started Guide at
http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3650/hardware/quick/guide/cat3650_gs
g.html.
• Use the CLI setup program to enter the initial switch configuration.
• Connect to the front-panel ports. See the “Connecting a Device to an Ethernet Port” section on
page 2-19.
1 Adhesive pads
1
1
347793
P
W
R
-C2-6
40WA
C
P
W
R
-C2-640
WA
C
CONSOLE
MGMT
