Catalyst 3650 Switch Hardware Installation Guide
OL-29734-01
Chapter 3 Installing the Fan
Fan Module Installation
Installing a Fan Module
Step 1 Pinch the fan module release handle, and slide the module out.
Caution You should replace the fan module within 5 minutes to avoid overheating the switch.
Step 2 Install the fan module in the fan slot, and firmly push it into the slot, applying pressure to the end of the
module, not the extraction handles. When correctly inserted, the fan module is flush with the switch rear
panel. When the fan is operating, a green LED is on in the top left corner of the fan. See Figure 3-2.
Warning
Do not reach into a vacant slot when installing or removing a module. Exposed circuitry is an energy
hazard.
Statement 206

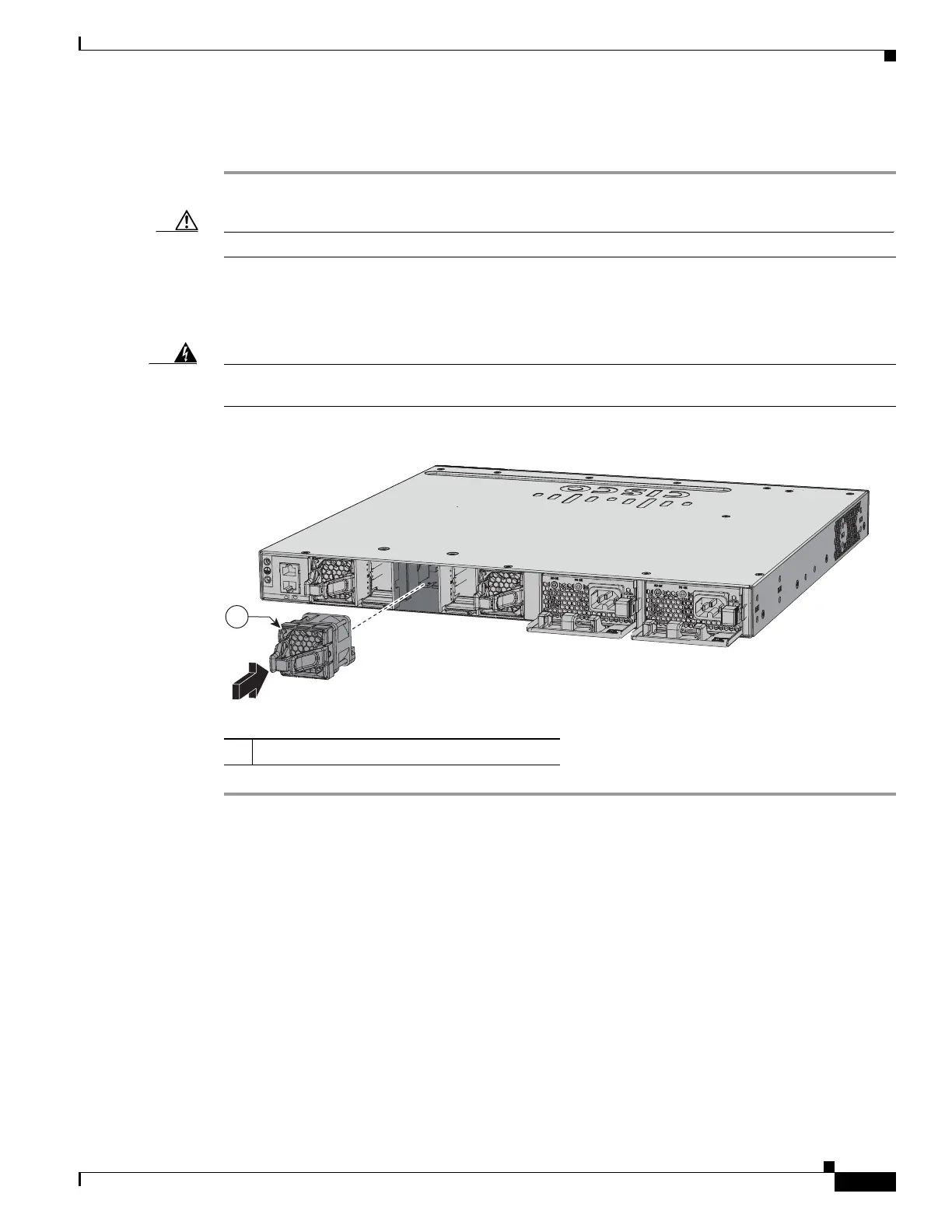

Figure 3-2 Installing the Fan Module
1 Fan LED
347794
PWR
-C2-6
40WAC
PWR
-C2-6
40WD
C
CONSOLE
MGMT
1
