Chapter 2 Switch Installation
Installing and Removing an SFP and SFP+ Module

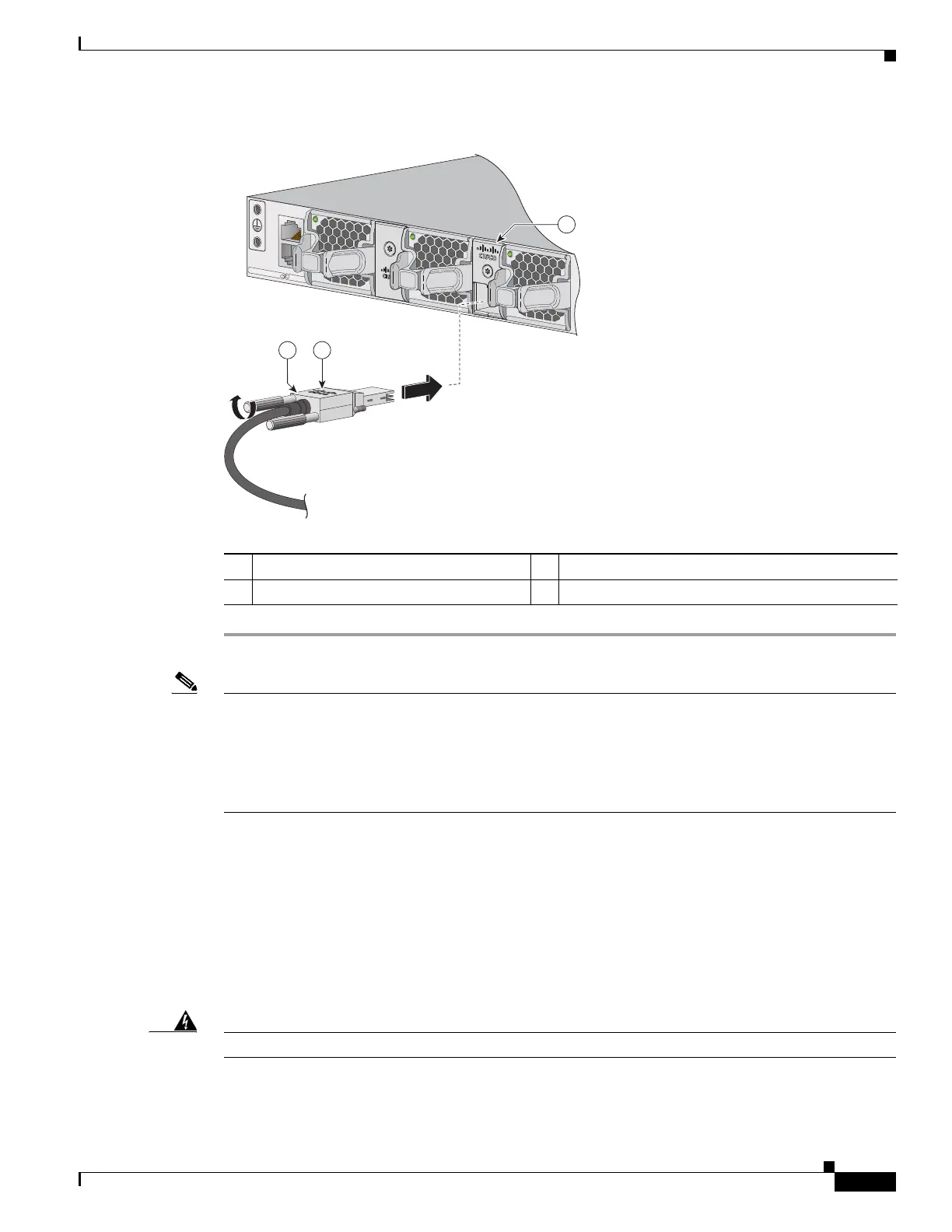

Figure 2-14 Connecting the StackWise Cable to the StackWise Adapter
Note • When you have to remove the StackWise cable from the connector, make sure that you fully unscrew
the correct screws. When the connectors are not being used, replace the dust covers.
• If the StackWise cable is difficult to remove, you can use a flat-blade screwdriver to assist with
removing the cable screws. The screwdriver only works for cable removal and is designed to slip off
if used for cable installation.
Installing and Removing an SFP and SFP+ Module
This section explains how to install and remove SFP and SFP+ modules.
Installing an SFP and SFP+ Module
Warning Class 1 laser product. Statement 1008
1 StackWise cable 3 StackWise adapter installed in a StackWise port
2 Cisco logo
C
ONSOLE
M
G
M
T
347841
21
3
