Cisco Catalyst 3750-X User Manual

37-37
Catalyst 3750-X and 3560-X Switch Software Configuration Guide
OL-21521-01
Chapter 37 Configuring Network Security with ACLs
Using VLAN Maps with Router ACLs

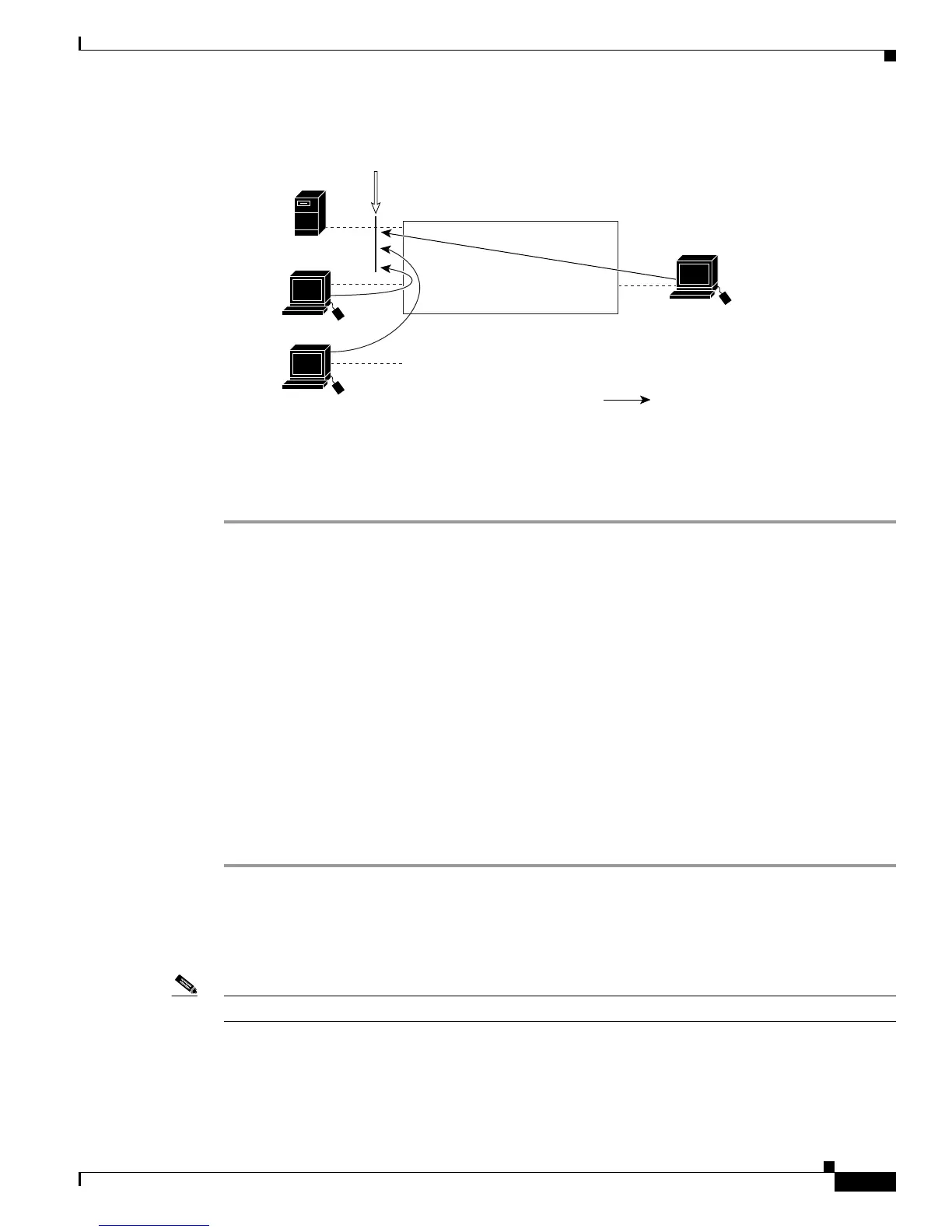

Figure 37-5 Deny Access to a Server on Another VLAN
This example shows how to deny access to a server on another VLAN by creating the VLAN map
SERVER 1 that denies access to hosts in subnet 10.1.2.0.8, host 10.1.1.4, and host 10.1.1.8 and permits
other IP traffic. The final step is to apply the map SERVER1 to VLAN 10.
Step 1 Define the IP ACL that will match the correct packets.
Switch(config)# ip access-list extended SERVER1_ACL
Switch(config-ext-nacl))# permit i
p 10.1.2.0 0.0.0.255 host 10.1.1.100
Switch(config-ext-nacl))# permit i
p host 10.1.1.4 host 10.1.1.100
Switch(config-ext-nacl))# permit i
p host 10.1.1.8 host 10.1.1.100
Switch(config-ext-nacl))# exit
Step 2 Define a VLAN map using this ACL that will drop IP packets that match SERVER1_ACL and forward
IP packets that do not match the ACL.
Switch(config)# vlan access-map SERVER1_MAP
Switch(config-access-map)# match i
p address SERVER1_ACL
Switch(config-access-map)# action drop
Switch(config)# vlan access-map SE
RVER1_MAP 20
Switch(config-access-map)# action forward
Switch(config-access-map)# exit
Step 3 Apply the VLAN map to VLAN 10.
Switch(config)# vlan filter SERVER1_MAP vlan-list 10.
Using VLAN Maps with Router ACLs
Note Router ACLs and VLAN maps are not supported on switches running the LAN base feature set.
To access control both bridged and routed traffic, you c
an use VLAN maps only or a combination of
router ACLs and VLAN maps. You can define router ACLs on both input and output routed VLAN
interfaces, and you can define a VLAN map to access control the bridged traffic.
Layer 3 switch
Host (VLAN 20)
Host (VLAN 10)
Host (VLAN 10)
Server (VLAN 10)
101356
VLAN map
Subnet
10.1.2.0/8
10.1.1.100
10.1.1.4
10.1.1.8
Packet
