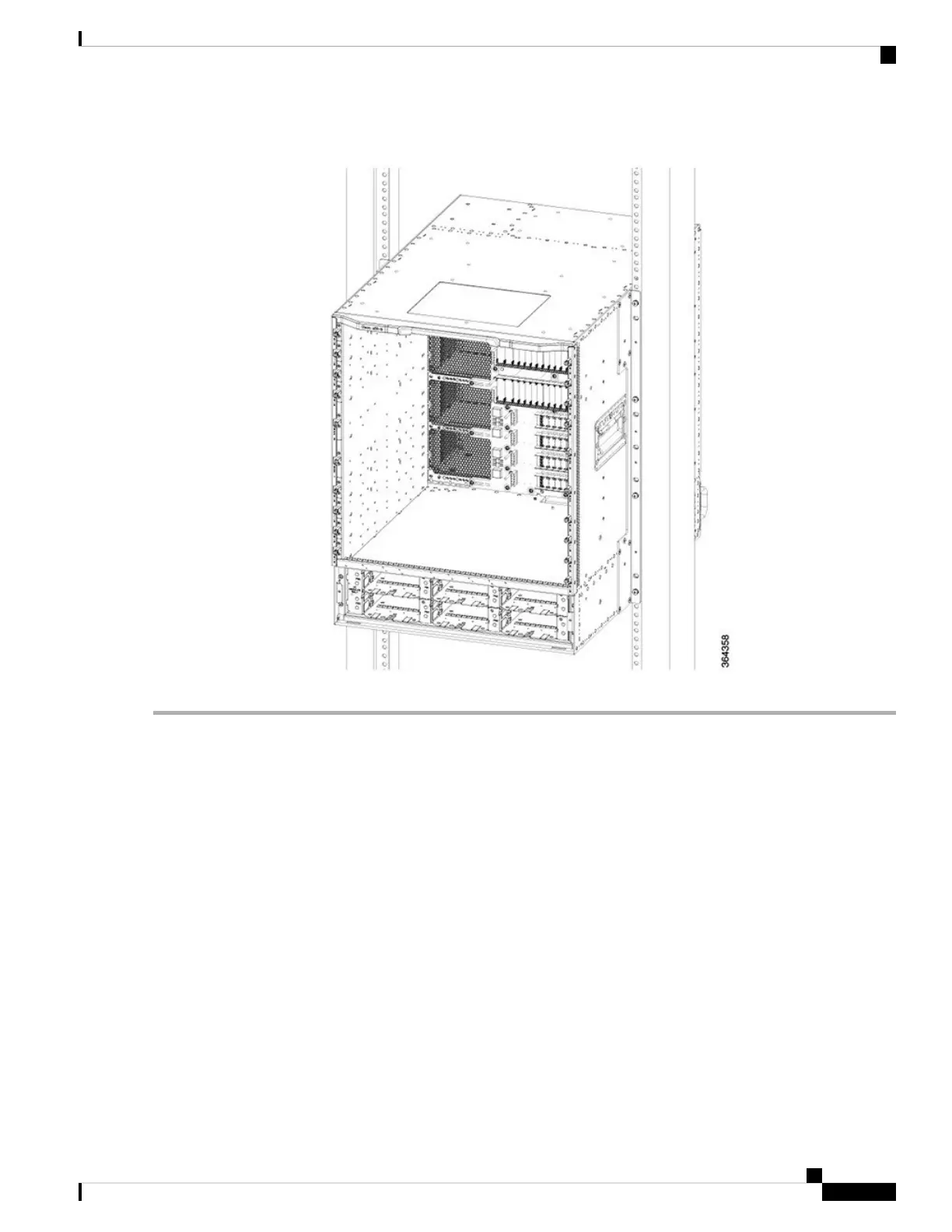

Figure 31: Two-Post Rack Mounting
What to do next
Attach the cable management bracket.
Attaching the Cable-Management Brackets
The rear RF cable-management brackets mount to the right rear side of the chassis to provide cable-management
to coaxial cables exiting the RF PIC modules. These brackets provide a reference configuration that allows
installation and removal of cables and modules in the rear of the chassis.
Each RF cable-management bracket for the Cisco cBR chassis contains four independent U-type
cable-management provisions, with two captive screws for attaching to the chassis, and provides cable dressing
of each RF PIC cardslot.
Before you begin
Required Tools and Equipment
#2 Phillips torque screwdriver
Cisco Converged Broadband Routers Hardware Installation Guide
65
Installing the Cisco cBR Chassis
Attaching the Cable-Management Brackets
