Cisco IE 3010 User Manual

29
Switch Installation
Installing the Switch

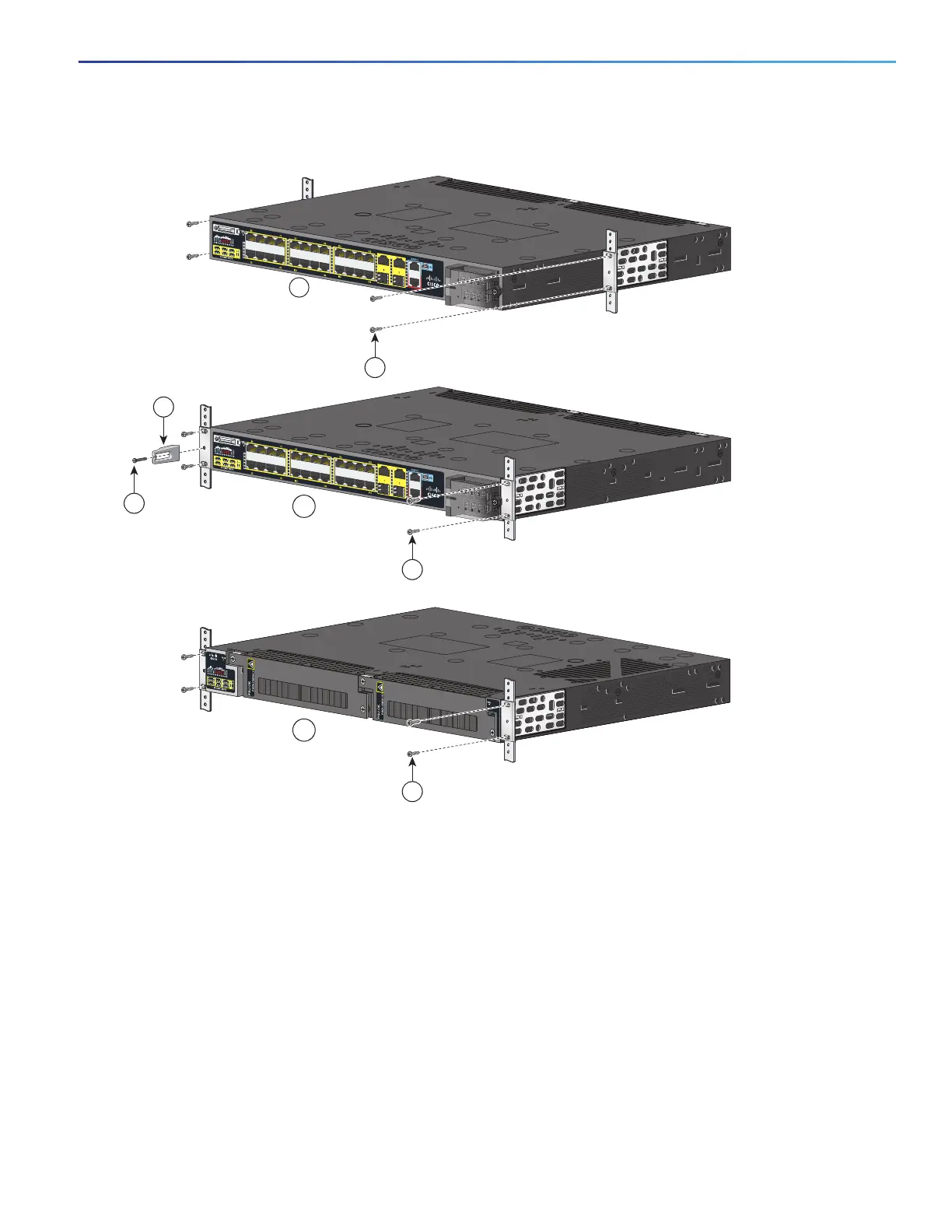

Figure 19 Rack-Mounting
After the switch is mounted in the rack:
1. Wire the switch to a power source. See Power Supply Installation, page 47
2. Connect the ports. See the Connecting Devices to the Ethernet Ports, page 44.
3. Attach the cable guide to prevent the cables from obscuring the LED panels on the devices in the rack. Use the
supplied black screw shown in Figure 19 on page 29 to attach the cable guide to the left or right bracket.
For configuration instructions about the CLI setup program, go to Configuring the Switch with the CLI Setup Program,
page 81
1 Mid-mounting position 4 Phillips machine screws
2 Cable screw 5 Power-supply-side mounting position
3 Cable-side mounting position 6 Cable guide
Cisco IE 3010
6
2
208367
3
4
4
4
5
1
Cisco
Sw itch Series
IE 3010
Cisco IE 3010
