CLUTCH
GEARBOX
DRIVESHAFTS
CLUTCH SPECIFICATION
Engines : HFX – KFV – NFU - 8HX – 8HW – 8HV – 8HY
NOTE : All the clutches are «push» type with hydraulic control.

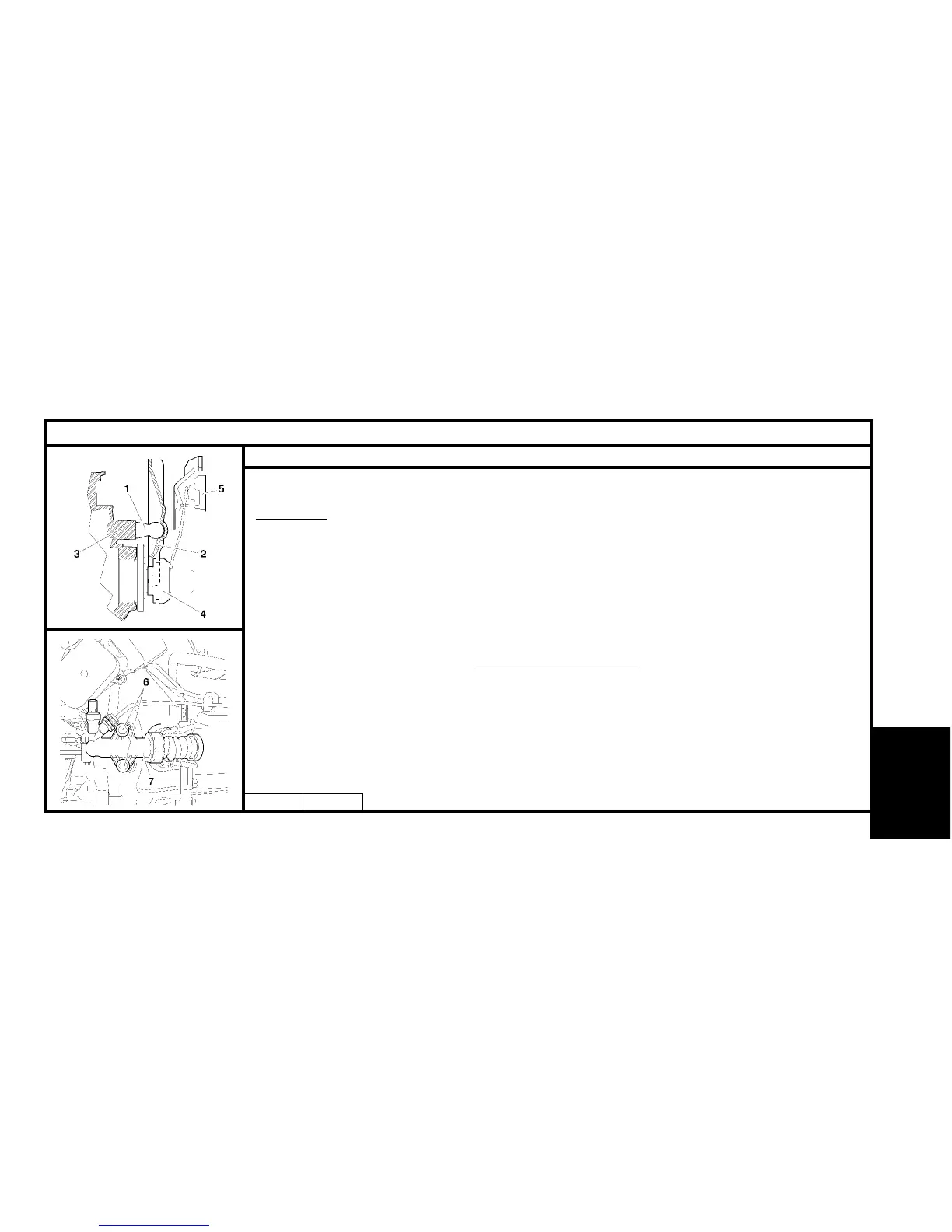

Description.
The declutch control has a declutch fork mounted on a ball-joint.
(1) The ball-joint is screwed into the clutch casing
(2) Declutch fork.
(3) Clutch casing.
(4) Bearing.
(5) Clutch plate.
The clutch control slave cylinder (7) is fixed by two screws (6) onto the exterior of the clutch casing.
T
ightening torques (m.daN).
- Fixing of clutch plate/engine flywheel : 2 ± 0.2
- Fixing of engine flywheel/crankshaft
Pre-tightening : 1.7 ± 0.1
Angular tightening : 70° ± 5°
B2BP047C B2BP04QC
