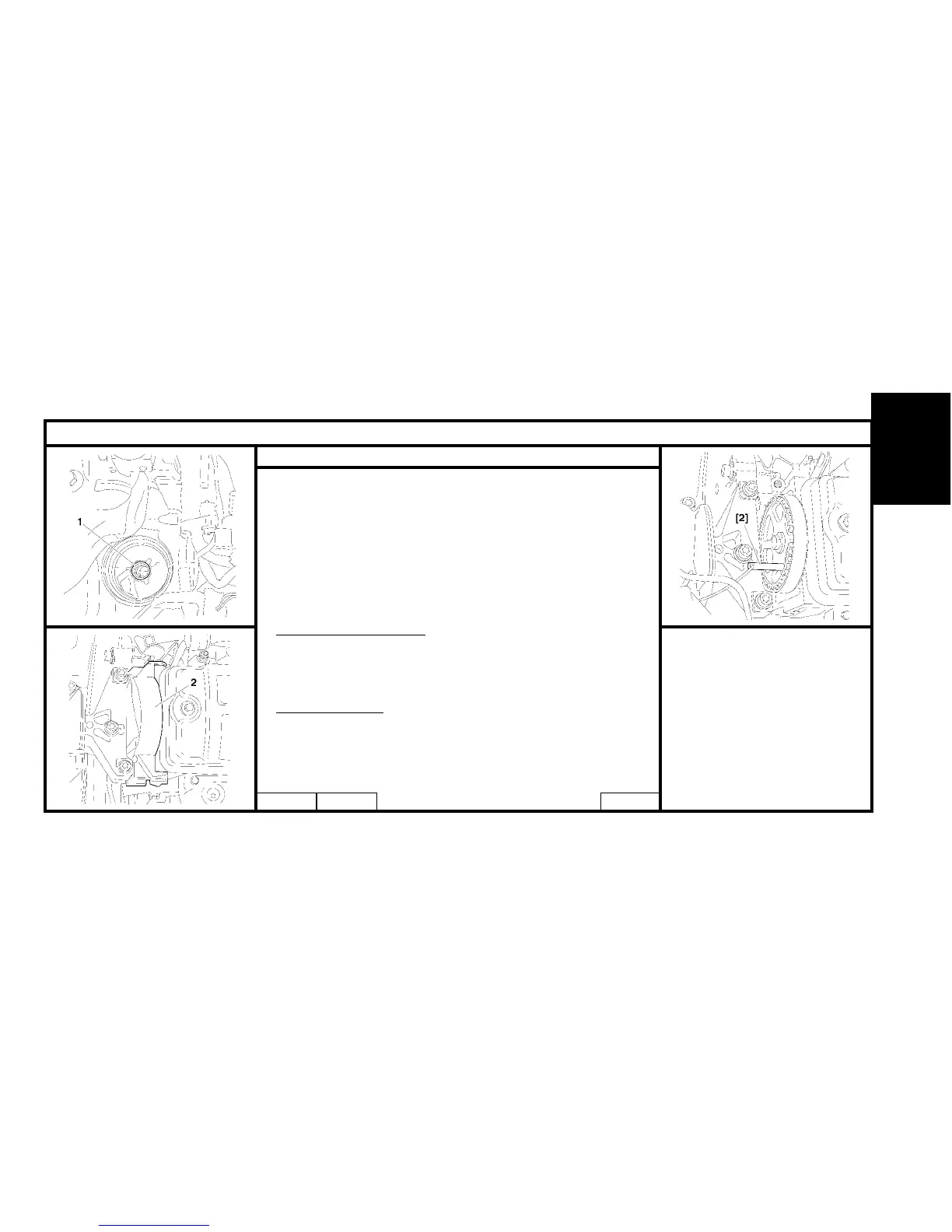

CHECKING AND SETTING THE VALVE TIMING
Engines : HFX - KFV - NFU
B1BP2M7C B1BP2M9C
B1BP2M8C
Tools.
[1] Engine flywheel peg : 4507-T.A
[2] Camshaft pulley peg : 4507-T.B
[3a] Camshaft peg : 4533-TA.C1
[3b] Camshaft peg : 4533-TA.C2
[4] Dynamic tensioner roller pin : 4200-T.H
[5] Belt retaining pin : 4533-T.AD
[6] Pliers for removing plastic pins : 7504-T.
Checking the valve timing.
Engines HFX - KFV - NFU
Raise and support the front RH side of the vehicle.
Disconnect the battery positive terminal.
Engage 5th gear.
Remove the oil filter (1).
HFX – KFV engine
Remove :
The timing top casing (2).
Turn the wheel to rotate the engine (normal direction of rotation).
Peg the camshaft pulley, using tool [2].
ENGINE
