AXLE GEOMETRY

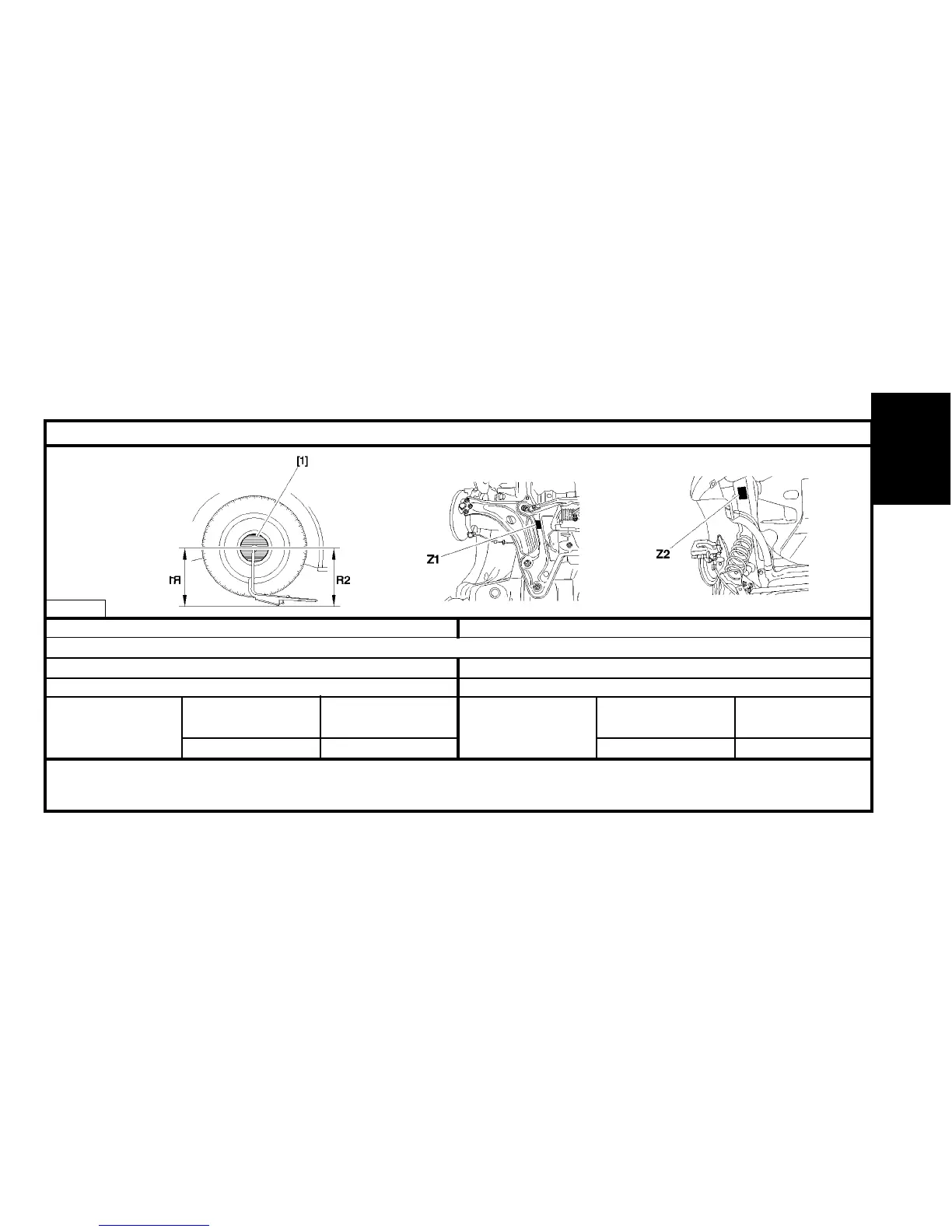

Measure the radius of the front wheel R1 - Calculate dimension H1 = R1 – L1
Z1 = Measuring zone underneath the front subframe.
[1] Gauge for measuring the wheel radius, 4 bolts, tool 8006-T
Measuring rear heightMeasuring front height
Z2 = Measuring zone underneath the rear sill.
Measure the radius of the rear wheel R2 - Calculate dimension H2 = R2 + L2
(*) = CRD : Difficult road conditions.
Definition for a type of vehicle whose axles and suspensions are adapted for driving on rough roads.
Compress the suspension to obtain the calculated values. The height difference between the two axle dimensions should be less than 10 mm.
Value at reference
height
(+ 6 - 8 mm)
All types
(except CRD) (*)
CRD vehicles (*)
All types
(except CRD) (*)
CRD vehicles (*)
L1 = 142.5 mm
L1 = 132.5 mm
Value at reference
height
(+ 10 - 6 mm)
L2= 52 mm
L2= 62 mm
AXLES
SUSPENSION
STEERING
183
B3CP07SD
