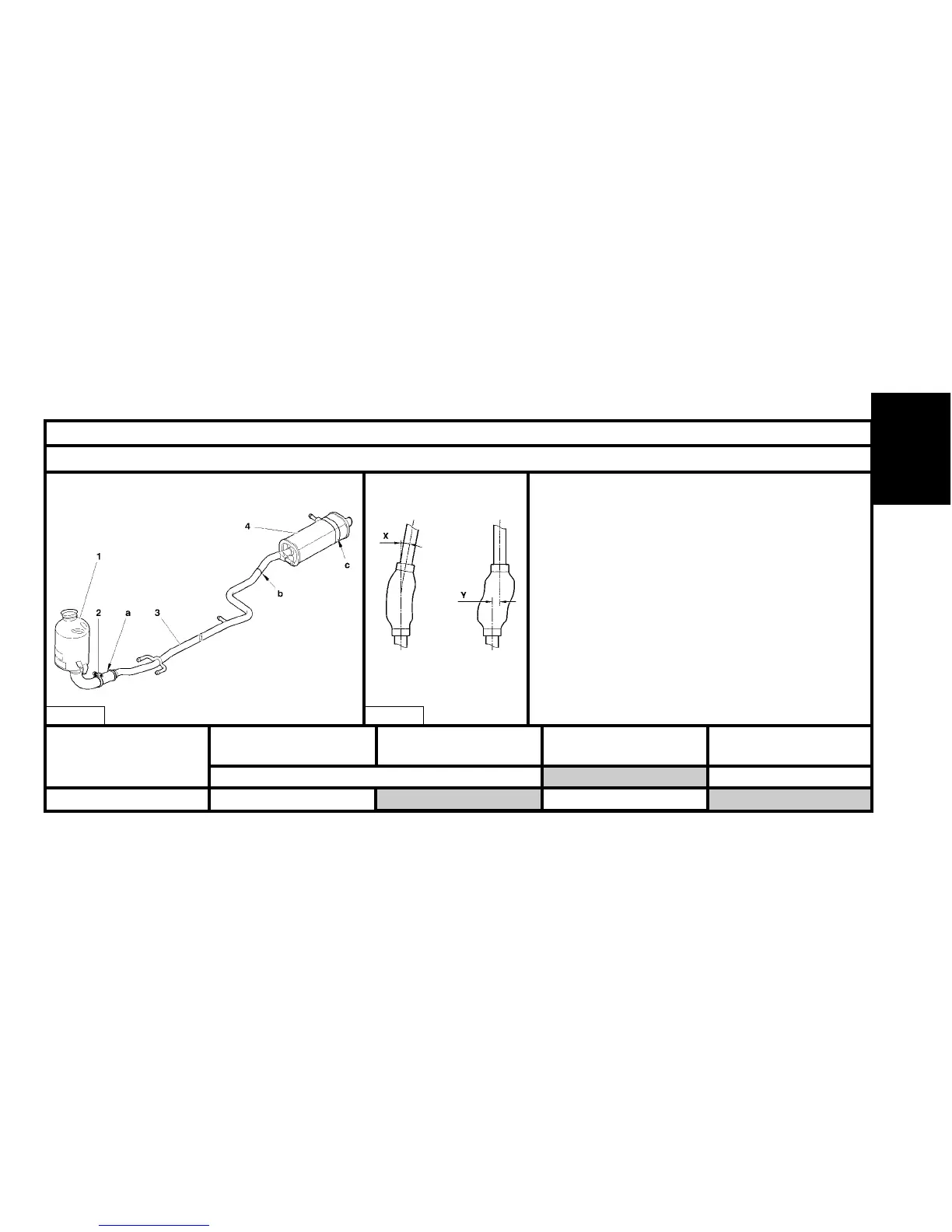

EXHAUST SPECIFICATIONS
Engines : 8HY – 8HV
Flexible pipe
Respect the precautions to be taken when operating on a
vehicle.
The flexible pipe must not come into contact with corrosive
products.
Do not distort the flexible pipe by more than 20° angular (X),
20 mm axial, 25 mm shear (Y) (flexible pipe not fitted).
Do not distort the flexible pipe by more than 3° angular (X),
0 mm axial, 3 mm shear (Y) (flexible pipe in place).
WARNING : Non-respect for these precautions will result in
a reduction in the lifetime of the flexible pipe. It is thus
essential to disconnect or remove the exhaust line in any
operation necessitating the lifting of the power unit.
ENGINE
«a» : Cutting zone (Marked by burrs).
B1JP03ND B1JP02JC
8HY–8HV
TR PSA K213
Engine types
(1)
Catalytic converter
(4)
Clip
(2)
Intermediate pipe
(3)
Rear silencer
Tighten to 2,5 ± 0,3
Tighten to 2,5 ± 0,3
PSA 4177-PSA 4179
