SPECIAL FEATURES : AIR CONDITIONING SYSTEM (R 134.a)
Changing the filtering/drying cartridge
Tools.
[1] Charge station : (according to workshop equipment)
[2] TORX adaptor : TORX 70 FACOM.
[3] Inertia extractor : 1671-T. Toolkit 4114-T
[4] Endpiece Ø 20 : 1671-T.D20.
[5] Set of plugs : (-).0188.T.
[6] Circlip pliers : FACOM.
Removing
Depressurise the aircon circuit, using tool [1].
Remove the grille.
At «a», remove the pin and the plastic cover.
Unclip the condenser at «b» and «c», using a screwdriver.
Tilt the condenser towards the front.
Lift and release the condenser.
Clean the area around the cap (3).
Remove the plastic cap (3), using tool [2].
Remove the safety circlip (4), using tool [6].
Position the tool [3] and [4] in the aperture of the cartridge (5).
Extract the cartridge from the reservoir (6), using tool [3] and [4].
Block the reservoir (6), using tool [5].

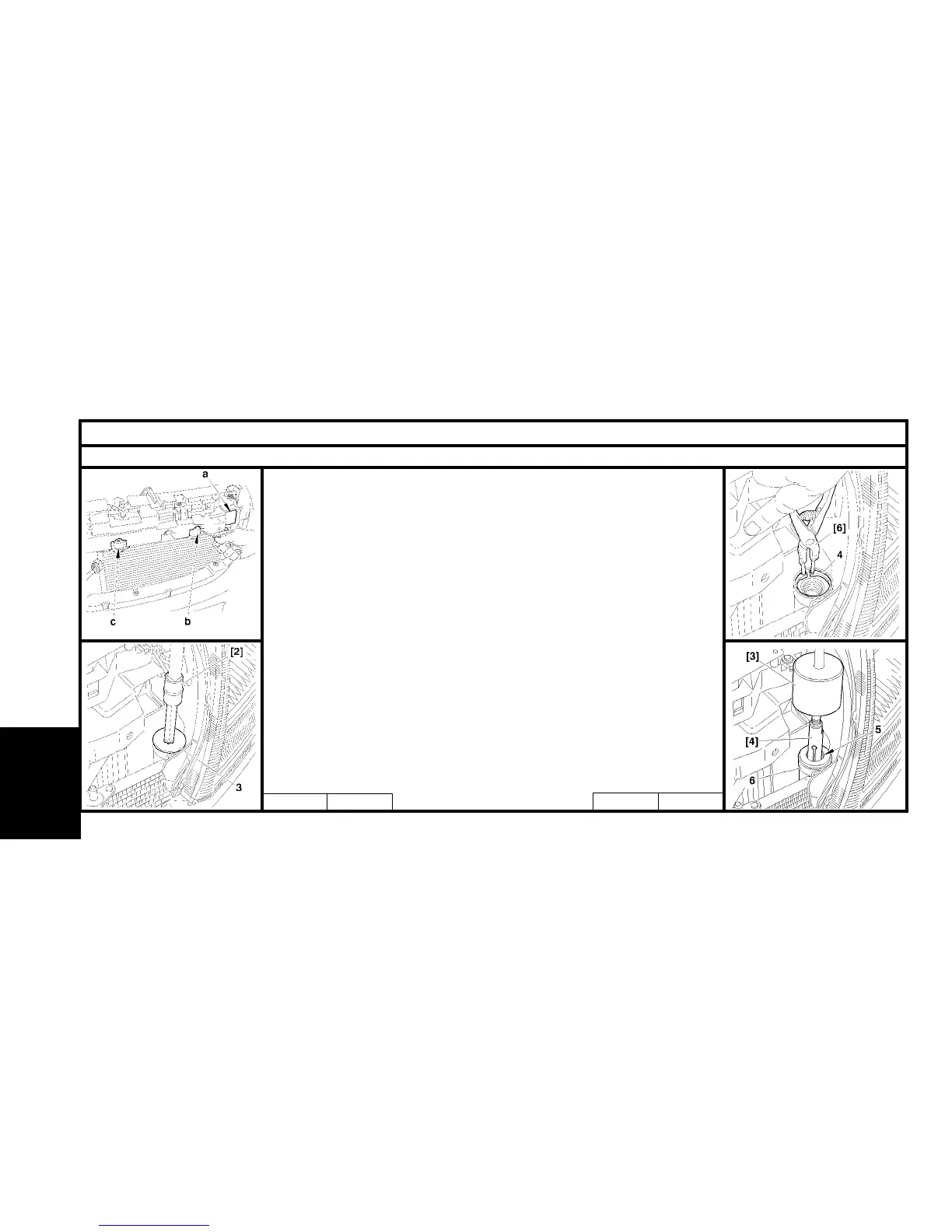

C4AP163C C4AP164C
C4AP166CC4AP165C
