MA/5 GEARBOX

Engines : HFX - KFV - NFU - 8HX - 8HW

Draining – filling – level

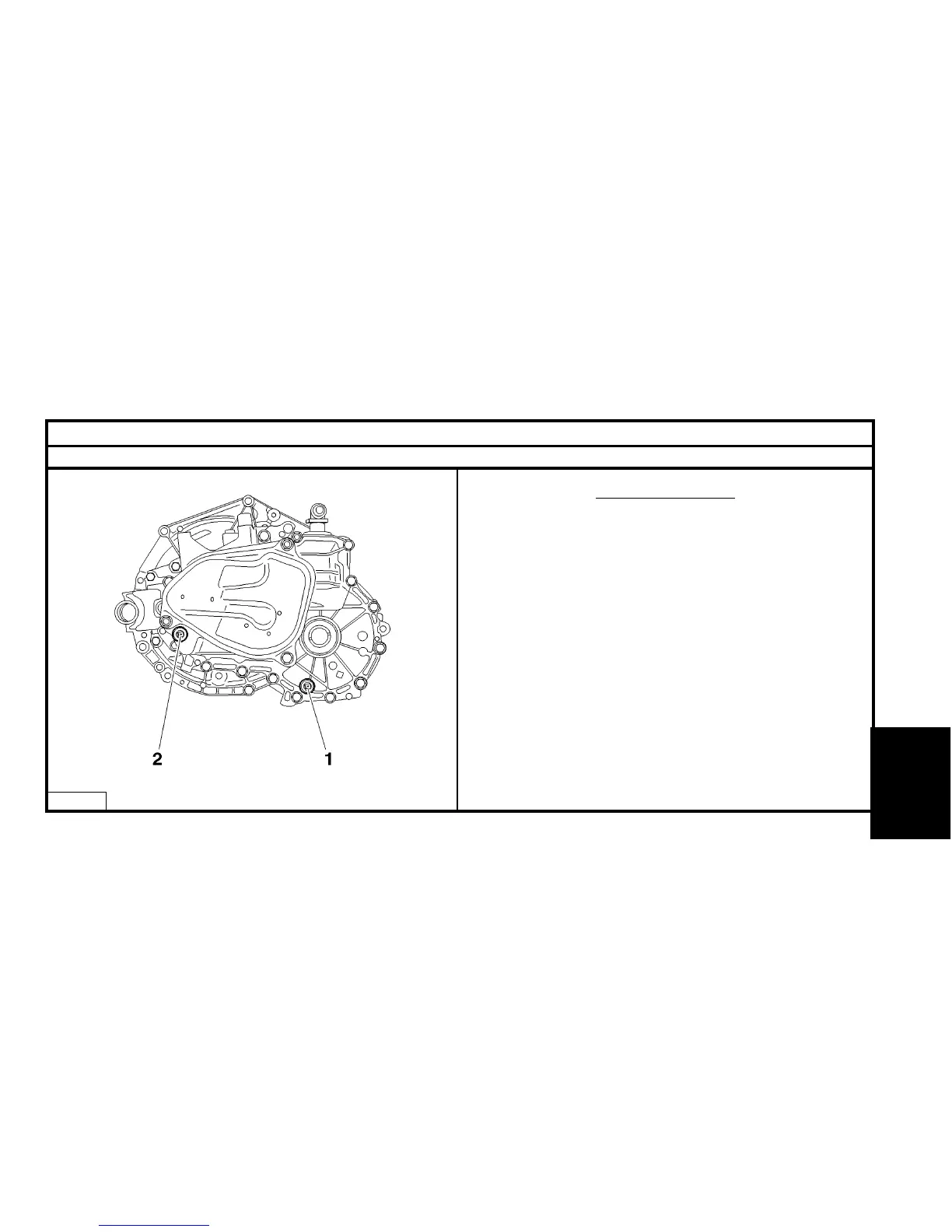

(1) Gearbox drain plug.

(2) Filling and level cap.

Oil quality.

Refer to the manufacturer’s instructions.

Oil quantity.

After draining : 2 Litres.

Draining intervals.

«Lubricated for life »

Check the oil level: Every 37 500/40 000 miles.
