CITROEN C3 2002 User Manual

69
CHECKING AND SETTING THE VALVE TIMING
Engines : 8HX - 8HW
B1BP2LXC
Tools.
[1] Pliers for removing plastic pegs : 7504-T.
[2] Lever for detensioning the dynamic tensioner roller : (-).0194.E
[3] Engine flywheel setting peg :.(-).0194.C
[4] Camshaft setting peg : (-).0194.B.
[5] Crankshaft and high pressure pump setting peg : (-).0194.A.
Preliminary operations.
Remove:
- The front RH wheel.
- The front RH splash-shield, using tool [1].
- The clips of the electrical harness on the upper timing cover.
- The accessories belt, using tool [2] (see corresponding operation).
Check ing the setting.
Disconnect the battery negative cable.

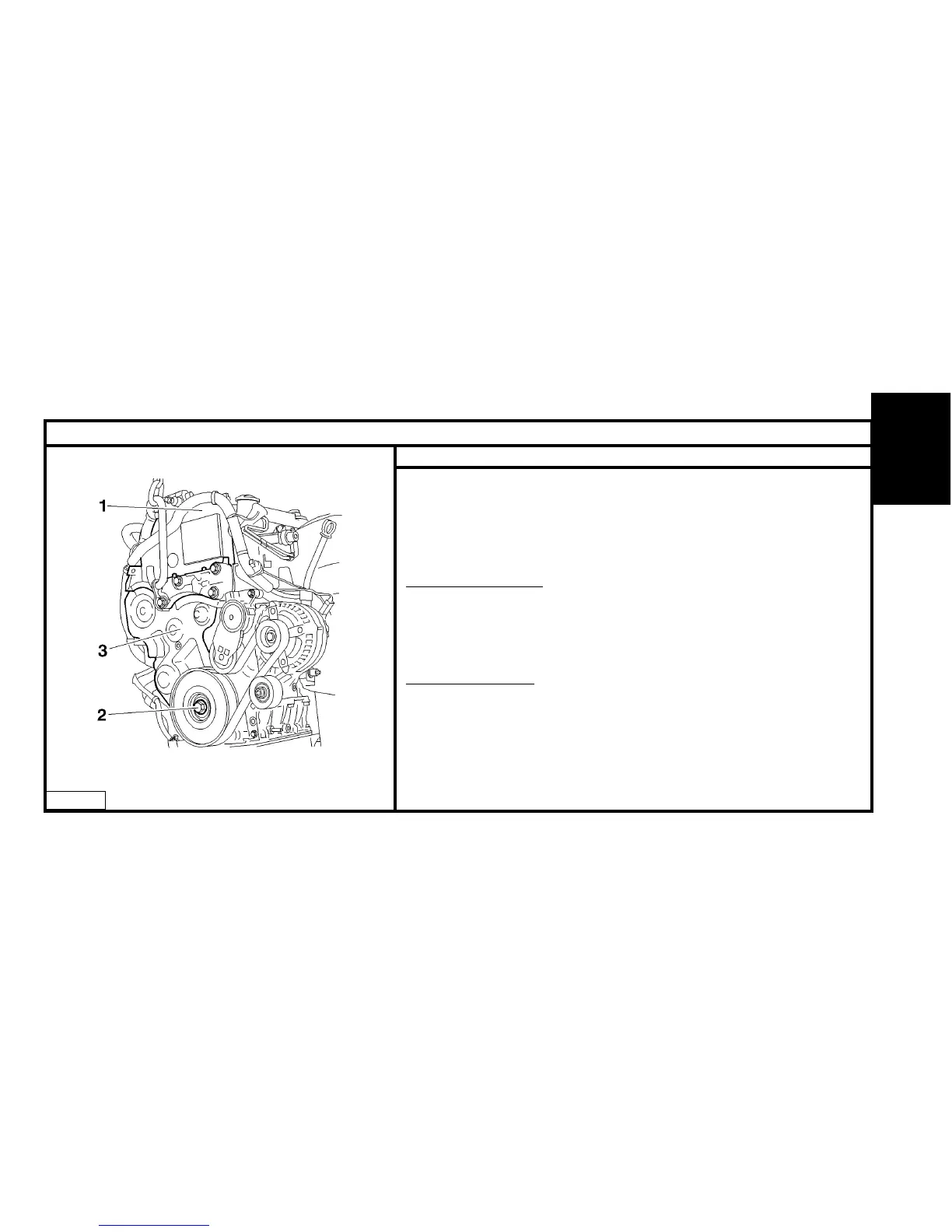

Remove the upper timing cover (1).
Rotate the engine using the screw (2) of the crankshaft pulley.
NOTE : The locking hole is located under the crankshaft bearing cap cover.
Undo the screw (2).
Detension the auxiliary drive belt dynamic tensioner roller, using tool [2].
ENGINE

CITROEN C3 2002 Specifications

General

Brand	CITROEN
Model	C3 2002
Category	Automobile
Language	English

Summary

GENERAL

Identification of Vehicles

Details vehicle identification markers like chassis stamp, data plate, paint code, and serial numbers.

OPERATIONS TO BE CARRIED OUT AFTER A REPAIR

GENERAL SPECIFICATION: LIFTING AND SUPPORTING THE VEHICLE

Front lifting

LUBRICANTS – TOTAL recommended oils

S.A.E. Norm - Table for selection of engine oil grade

Provides a table for selecting engine oil grades based on S.A.E. norm and temperature.

ENGINE SPECIFICATIONS

Engine type

Lists various engine types like HFX, KFV, NFU, 8HX, 8HW, 8HY, 8HV.

Cubic capacity (cc)

Specifies the cubic capacity for each engine type, ranging from 1124 to 1587 cc.

SPECIAL FEATURES : TIGHTENING TORQUES (m.daN)

CHECKING AND SETTING THE VALVE TIMING

Checking the valve timing

Details the procedure and tools for checking valve timing on HFX-KFV-NFU engines.

PETROL INJECTION

Make - Injection type

Lists the make and type of injection system for different petrol engines (e.g., Magnetti Marelli, Sagem, Bosch).

SAFETY REQUIREMENTS : HDi DIRECT INJECTION SYSTEM

Safety requirements

Emphasizes high pressures (1350 bars) and precautions like no smoking near the circuit.

AL 4 AUTOMATIC GEARBOX

AXLE GEOMETRY

Measuring front height

Details how to measure front height, including calculations for H1.

SUSPENSION

Front axle

Lists tightening torques and specifications for front axle suspension components.

Rear axle

Lists tightening torques and specifications for rear axle suspension components.

FEATURES OF ELECTRIC POWER STEERING

Steering column

BRAKE SPECIFICATIONS (WITHOUT ABS)

BRAKE SPECIFICATIONS (WITH ABS)

FR (Front) Disc

BLEEDING AND FILLING THE BRAKING SYSTEM

Draining, refilling

CHECKING THE EFFICIENCY OF THE AIR CONDITIONING SYSTEM

Checking TEMPERATURES
