SUSPENSION

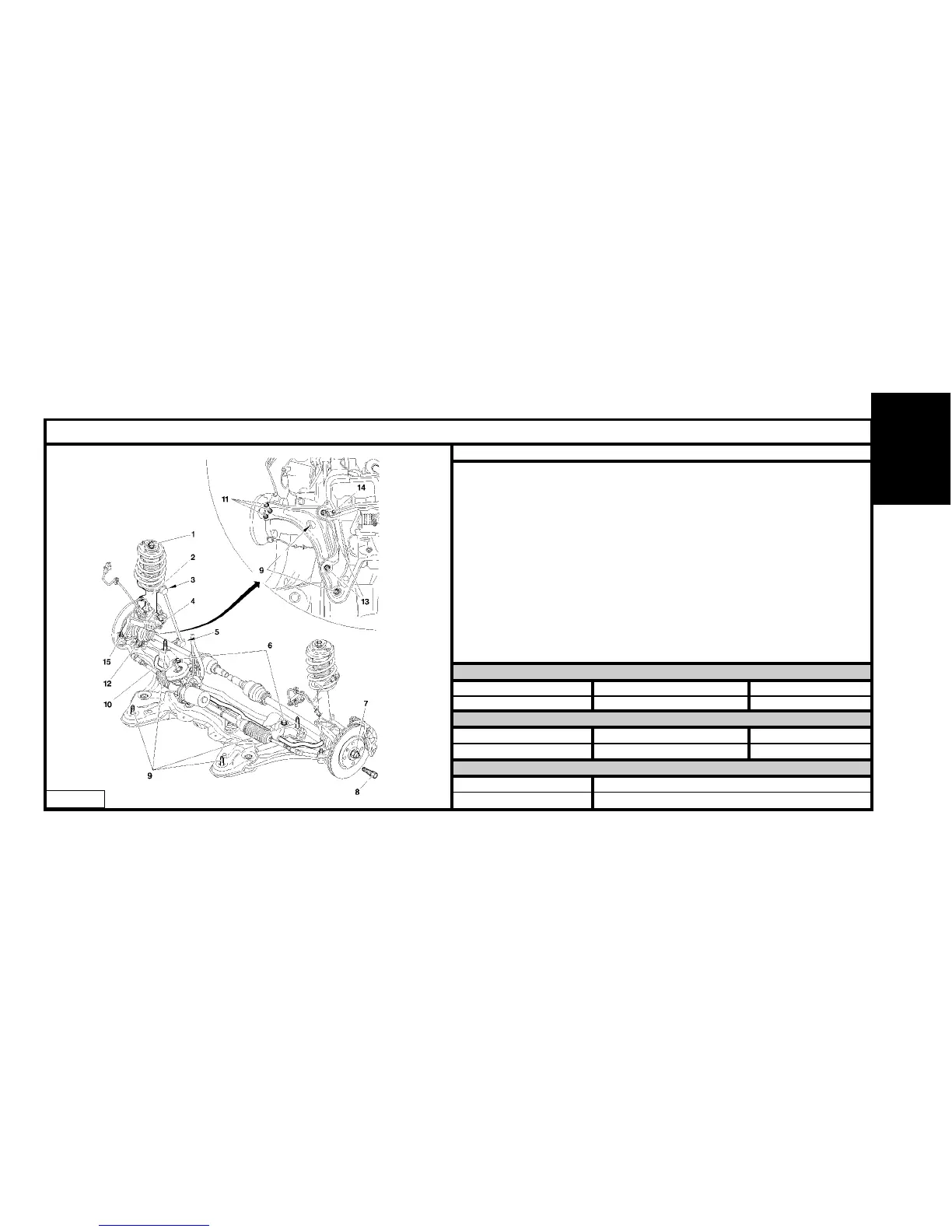

Front axle
(1) Suspension leg on bodyshell fixing nut : 6.5 ± 0.6
(2) Damper :
(3) Anti-roll bar link rod upper ball-joint : 4.5 ± 0.5
(4) Suspension leg pivot : 5.4 ± 0.5
(5) Anti-roll bar link rod lower ball-joint : 4.5 ± 0.5
(6) Anti-roll bar bearing fixings on bodyshell : 8 ± 0.8
(7) Hub nut : 24.5 ± 0.5
(8) Wheel bolt : 9 ± 1
(9) Subframe on bodyshell fixing screw : 9.2 ± 0.9
(10) Anti-roll bar :
(11) Pivot lower ball-joint fixing on lower arm : 4 ± 0.4
(12) Pivot lower ball-joint fixing : 6.6 ± 0.7
(13) Lower arm front and rear mounting fixing : 14 ± 1.4
(14) Stabiliser bar screw : 6.6 ± 0.7
(15) Steering ball-joint fixing : 8 ± 0.8
Anti-roll bars
Engines Diameter (mm) Colour
All Types 19 Blue
Pivot
Engines Diameter of bearing Type
All Types 72 In U (Cast-iron)
Damper
Engines Damping law
All Types R 59 M
