3. General Cautions
1. Do not open the case. There are no user- serviceable
parts inside. If you drop anything into the unit during
installation, consult your dealer or an authorized
Clarion service center.
2. Use a soft, dry cloth to clean the case. Never use
a rough cloth, thinner, benzine, or alcohol etc. For
tough dirt, apply a little cold or warm water to a soft
cloth and wipe off the dirt gently.
4. Cautions on Installation
1. Prepare all articles necessary for installing the
source unit before starting.
2. This model features an operation panel that slides
forward.
On some types of cars, the operation panel may
make contact with the dashboard or gearshift
lever, in which cause it cannot be installed. Before
installing, check that the unit will not hamper
operation of the gearshift lever or obstruct your view
before selecting the installation location. (Figure 2)

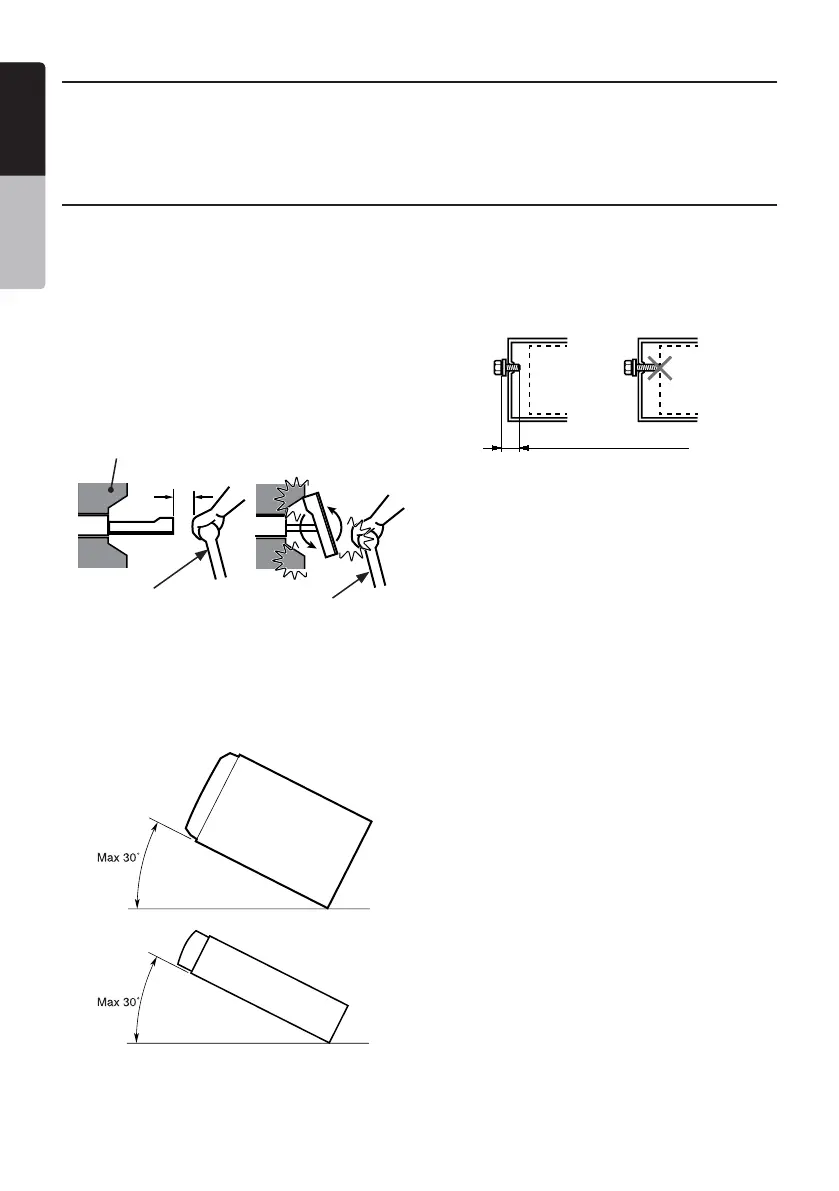

3. Install the unit within 30° of the horizontal plane.
(Figure 3)
4. If you have to do any work on the car body, such as
drilling holes, consult your car dealer beforehand.
5. Use the enclosed screws for installation. Using
other screws can cause damage. (Figure 4)
NX501E
NZ501E
Figure 3
NZ501E
Figure 2
Gearshift lever
(Check that it does not
touch the LCD)
Dashboard
Gearshift lever
Figure 4
Chassis Chassis
Damage
Max. 8 mm (M5 screw)
To Next Page
