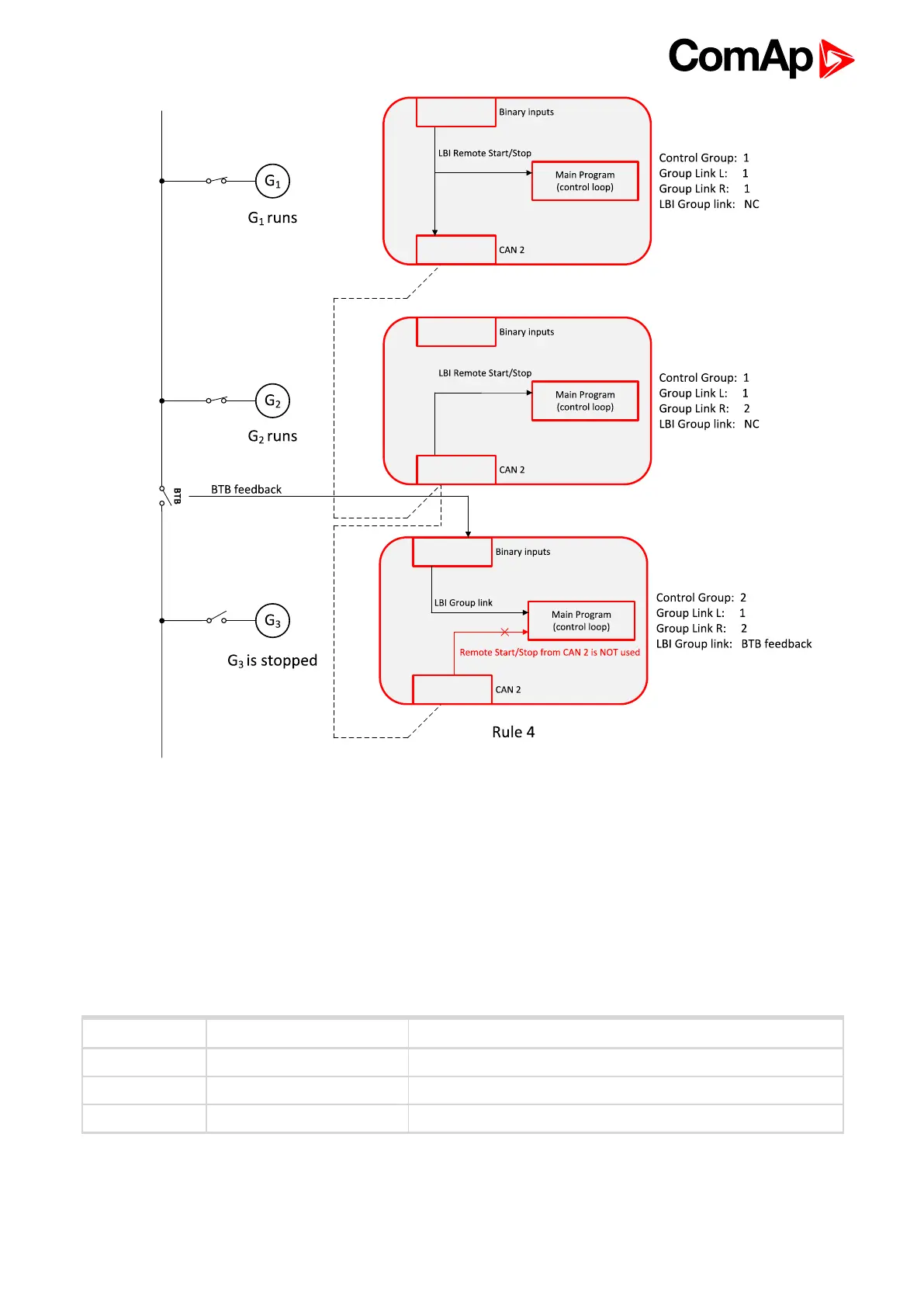

5. LBI function can be configured with multiple controllers, which transmit through CAN2 bus state of the
function. OR function applies to the function evaluation in controllers, in which the function is not configured.
It means that function is activated by shared signal coming from any controller (rule 4. applies).
5.4.6 Regulation loops
Regulation loops overview
Regulation loops overview
Loop type Related applications Related setpoints
Frequency MINT, SPtM, MCB, MGCB
Frequency Gain (page 202), Frequency Int (page 202)
Voltage MINT, SPtM, MCB, MGCB
Voltage Gain (page 203), Voltage Int (page 203)
Angle regulation MINT, SPtM, MCB, MGCB
Angle Gain (page 203)
Speed, Frequency, Load sharing, Load regulation loops have one common output = Speed request. The value of
this output is always composed from the contribution of each of the regulation loops.
