InteliMains 210 Global Guide
18

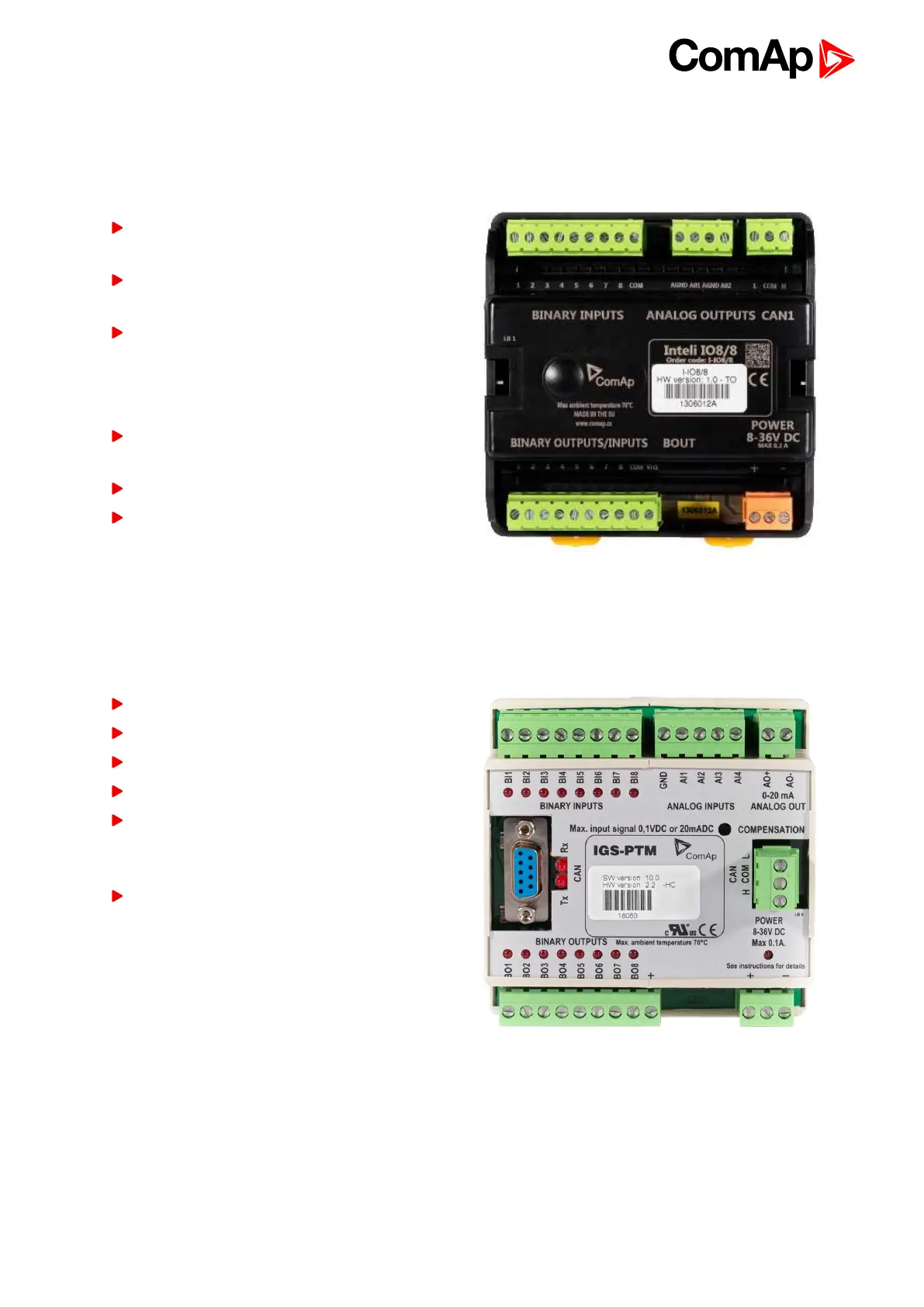

2.6.2 Inteli IO8/8
The unit offers the user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, and 2 analog
outputs, or 16 binary inputs, 0 binary outputs and 2 analog outputs via switches inside the controller.
Configuration 8/8
8 Binary inputs (options: pull up or pull down
logic)
8 Binary outputs (options: Low side switch (LSS)
or High side switch (HSS))
2 Analog outputs (options: voltage (0-10V),
current (0-20mA) and PWM (5V, adjustable
frequency 200Hz-2,4kHz))
Configuration 16/0
16 Binary inputs (options: pull up or pull down
logic)
0 Binary outputs
2 Analog outputs (options: voltage (0-10V),
current (0-20mA) and PWM (5V, adjustable
frequency 200Hz-2,4kHz))
2.6.3 IGS-PTM
The unit offers the user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, 4 analog
inputs and 1 analog outputs.
Configurable 8 binary and 4 analog inputs
Configurable 8 binary and 1 analog output
LEDs indicate the state of binary inputs/outputs
Measures values from Pt100 and Ni100 sensors
Analog inputs (resistance range 0-250 Ohms,
voltage range 0-100mV, current range 0-20mA -
selectable via jumper)
UL certified
