InteliMains 210 Global Guide
44
Connection using WinScope

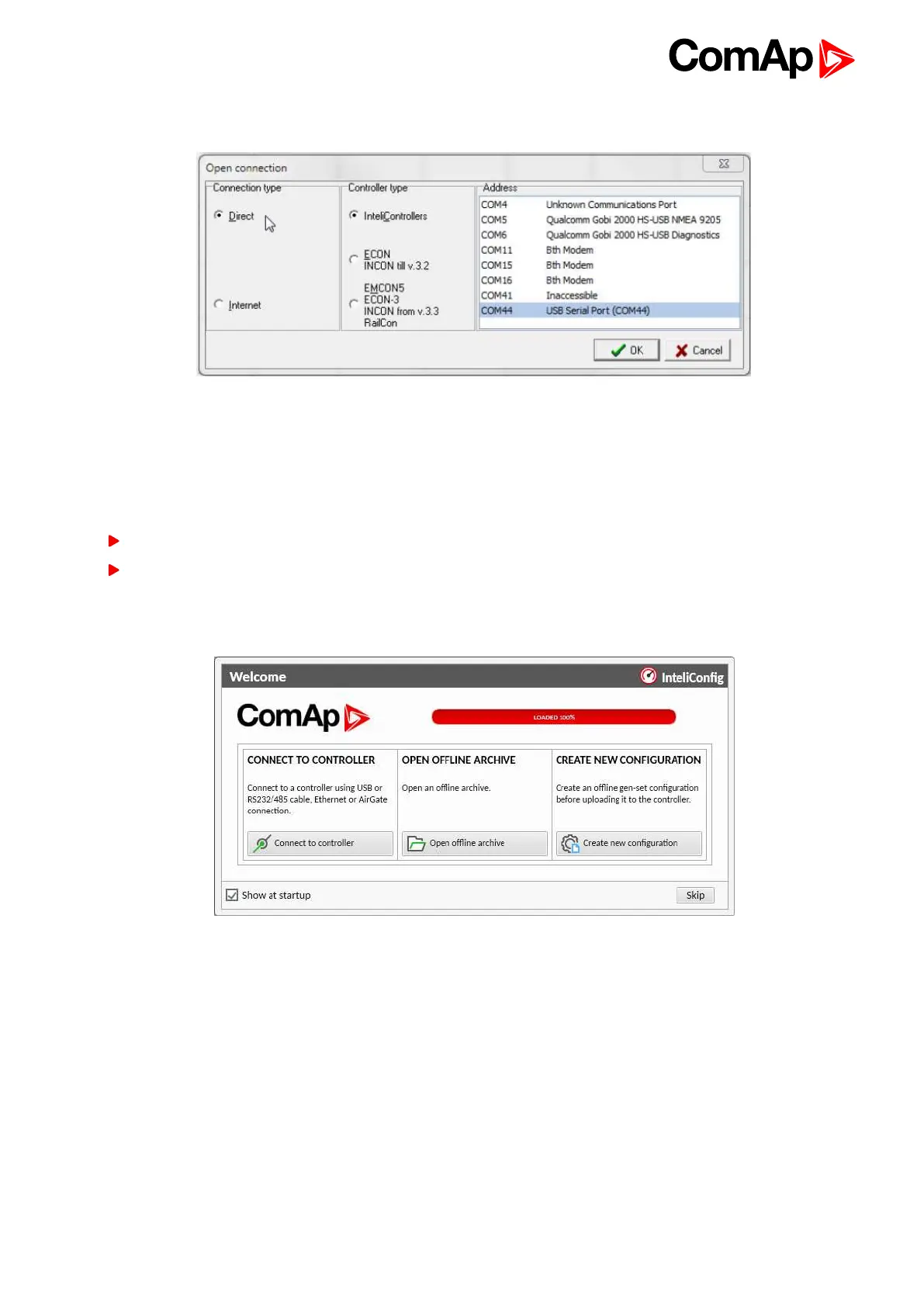

Image 5.3 WinScope screen - select direct connection
5.2.2 RS232/RS485
It is possible to connect to the controller using RS232 or RS485 direct connection (serial port or USB to
RS232/RS485 converter may be used). The following settings need to be checked in the controller:
COM1 Mode (page 263) = Direct
Controller Address (page 181) has to be set to the same value as in the PC tool
Connection using InteliConfig
Image 5.4 First screen of InteliConfig - select connect to controller
