4.2 Controller installation

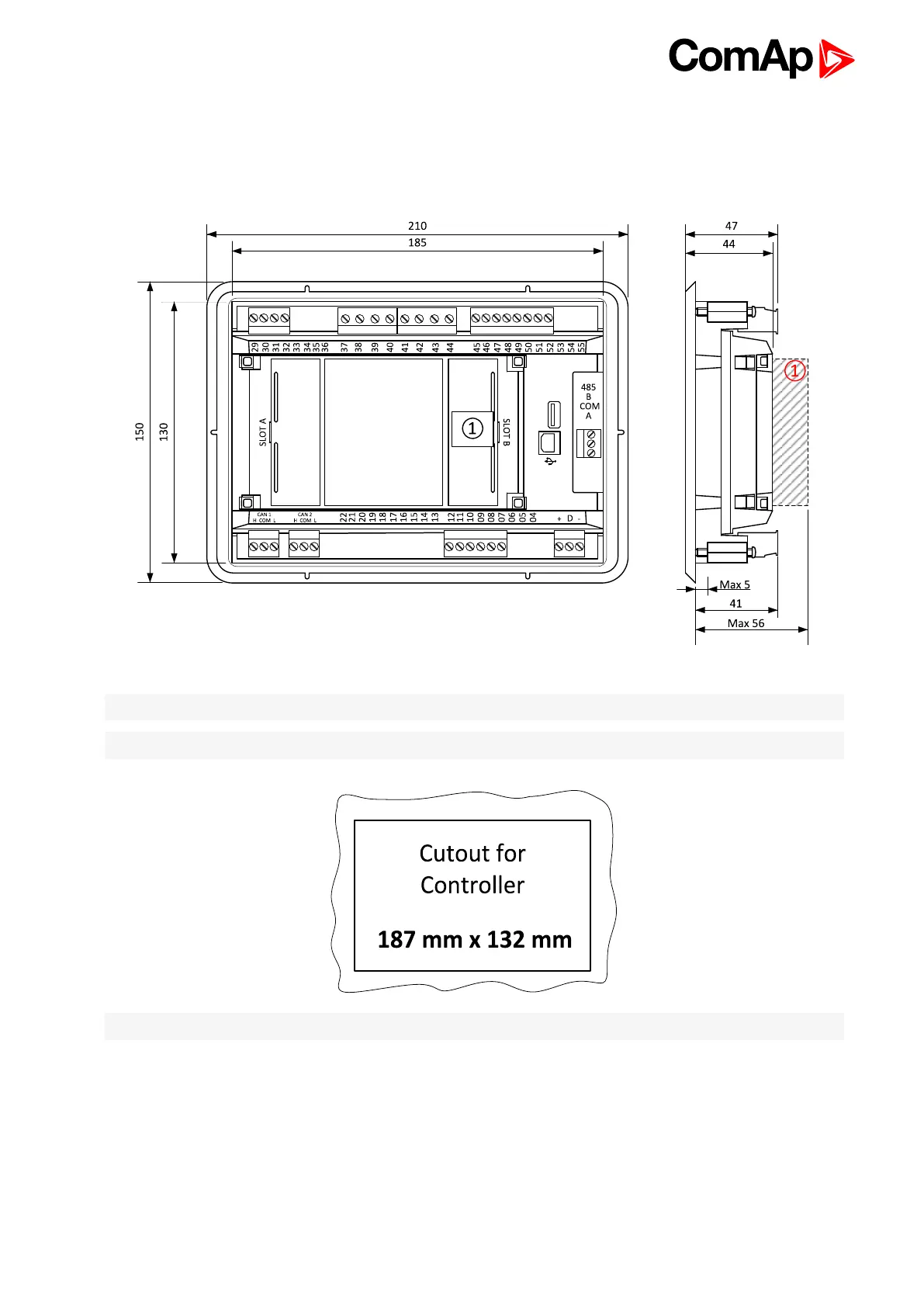

4.2.1 Dimensions
① Plug-in module
Note: Dimension x depends on plug-in module
Note: Dimensions are in millimeters.
Note: Cutout is in millimeters.
4.2.2 Mounting
The controller is to be mounted onto the switchboard door. Requested cutout size is 187 x 132 mm. Use the
screw holders delivered with the controller to fix the controller into the door as described on pictures
below.Recommended torque for holders is 0.15N·m.
