InteliMains 210 Global Guide
54
BTB ON. Green LEDs are on if BTB is closed and Bus is healthy. If Bus is not healthy and BTB
is closed than middle LED is on. It is driven by BTB CLOSE/OPEN output or by BTB feedback
signal.
Bus Left status indicator. There are two states - Bus Left OK (indicator is green) and Bus Left
failure (indicator is red). Green LED is on if Bus Left is present and within limits. Red LED starts
blinking when the Bus Left failure occurs. After FAULT RESET button is pressed, goes to steady
light (if an alarm is still active) or is off (if no alarm is active).
Graphic B/W display, 132x64 pixels.
5.3.2 Display screens and pages structure
The displayed information is structured into "pages" and "screens". Use PAGE button to switch over the pages.
The page Measurement consists of screens which display measured values like voltages, current, oil
pressure etc., computed values like i.e. gen-set power, statistic data and the alarm list on the last screen.
The page Setpoints contains all setpoints organized to groups and also a special group for entering
password.
The page History log shows the history log in the order that the last record is displayed first.

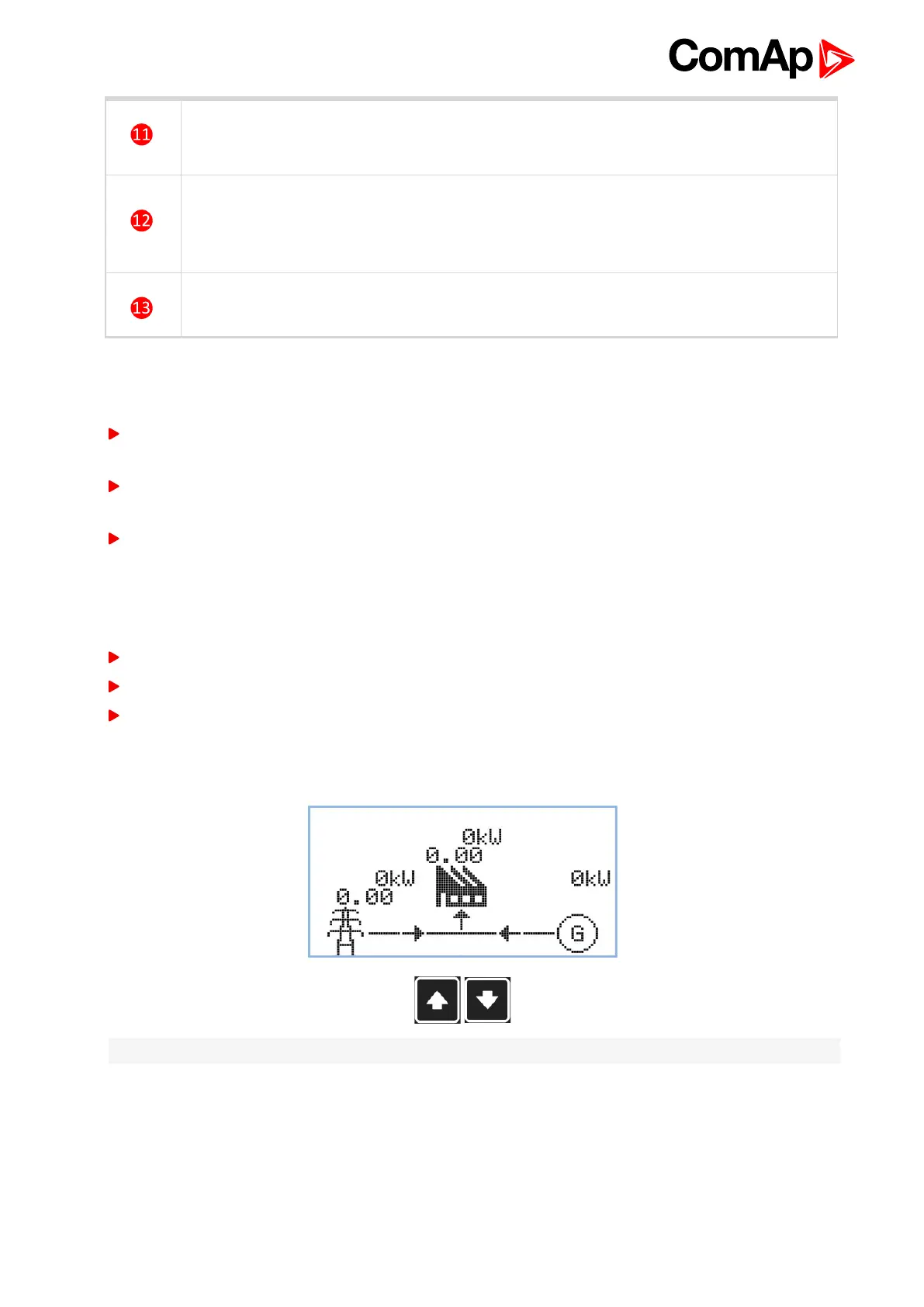

Main Screen
Symbols
Padlock - active when LBI ACCESS LOCK is active
R - active when there is active remote connection to controller
Exclamation mark - active when there is any alarm in alarmlist
Measurement Screens
Note: Use Up and Down button to move between measurement pages.
