Other functions

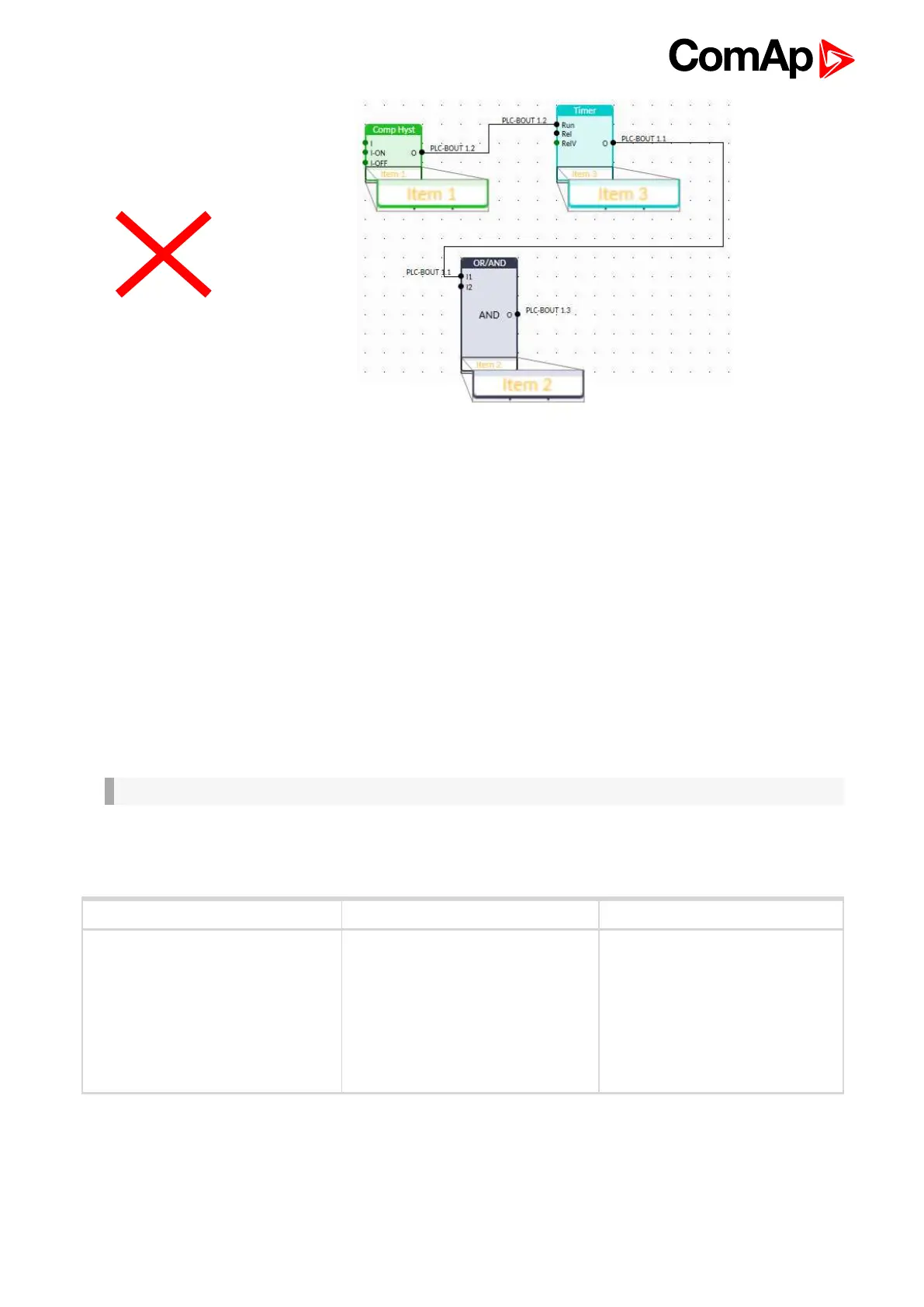

Consistency check
Use this function to check if all inputs and outputs of PLC block are connected.
Delete whole content of sheet
Use this function to delete the whole content of sheet (including blocks, wires, inputs, outputs, etc...).
Hints
Use this function to enable or disable quick hints for blocks (controller help is not affected by this function).
PLC monitor
PLC monitor is a powerful tool for monitoring your PLC. Just click on PLC monitor button on main InteliConfig
page to see you PLC. Active inputs and outputs have blue color. Also wires with active signals have blue color.
IMPORTANT: It is not possible to edit PLC in PLC monitor tool.
5.4.18 Alternate configuration
In controller are 3 sets of configuration.
Configuration set 1 Configuration set 2 Configuration set 3
Nominal Frequency 1 (page 294)
Nominal Voltage Ph-N 1 (page 294)
Nominal Voltage Ph-Ph 1 (page 295)
Nominal Current 1 (page 295)
Connection Type 1 (page 295)
Nominal Frequency 2 (page 296)
Nominal Voltage Ph-N 2 (page 296)
Nominal Voltage Ph-Ph 2 (page 297)
Nominal Current 2 (page 297)
Connection type 2 (page 297)
Nominal Frequency 3 (page 298)
Nominal Voltage Ph-N 3 (page 298)
Nominal Voltage Ph-Ph 3 (page
299)
Nominal Current 3 (page 299)
Connection type 3 (page 299)
Configuration sets can be changed via logical binary input ALTERNATE CONFIG 2 (PAGE 401) and logical binary
input ALTERNATE CONFIG 3 (PAGE 401).
