Cub Cadet 7530 Maintenance Manual

5 Transmission
71
5.5 Assembly and Installation of Rear PTO
1. Clean each part and assemble.
2. Make sure that snap rings and spring pins are securely assembled.
3. Apply oil to the O-ring and needle bearing for assembly.
4. Apply lithium grease to the oil seal for assembly.

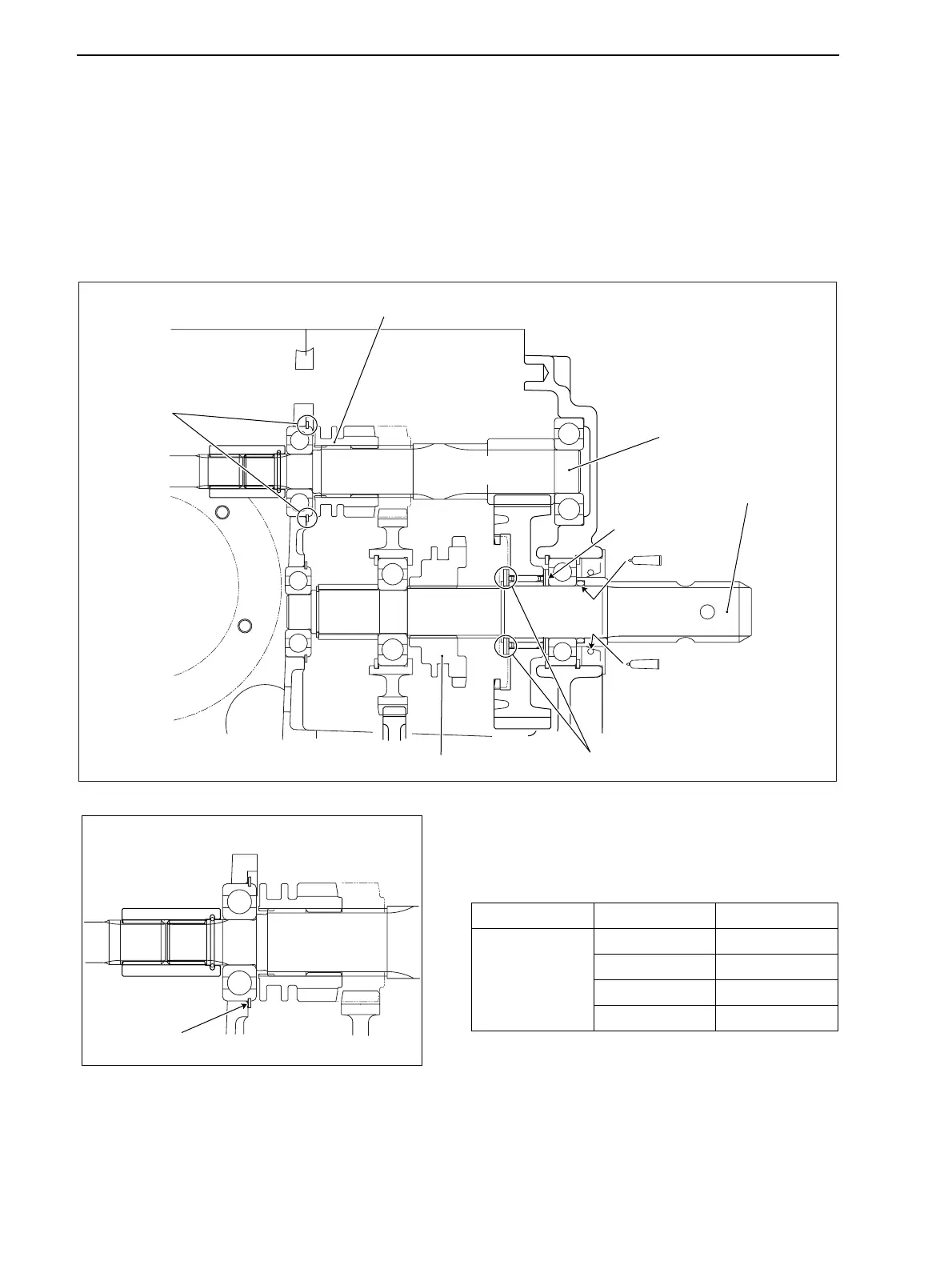

5. Assemble as shown in the drawing for the spur gears with specified mounting direction (edgy or chamfered
side).
6. Adjust the endplay shown in the drawing to be
within 0.05 to 0.20mm {0.002 to 0.008in} with
liner "A".
(Unit: mm {in})
Note) * use only for HST specification.
Item Thickness Parts No.
Liner "A"
0.15 {0.006} 0731 0002 001*
0.2 {0.008} 0731 0002 002*
0.4 {0.016} 0731 0002 004*
1.0 {0.039} 0731 0002 010
46T
19T
33T
44T
160.08
0.02-0.86
+0.2
-0.24
Clearance
10T
160.3
+0.4
0
Partsmeasurement
Componentmeasurement
Clearance 0.25-1.02
61.5
+0.4
+0.3
61.5
+0.05
+0.62
Partsmeasurement
Componentmeasurement
Liner"A"
Liner"B"
Liner"C"
MIDPTOchange
RearPTOshaft
RearPTOchange
PTOdriveshaft
Grease
Oil
GZ3W24-035
Liner"A"
GZ3W24-036
