6 Rear Axle and Brake
81
6 Rear Axle and Brake

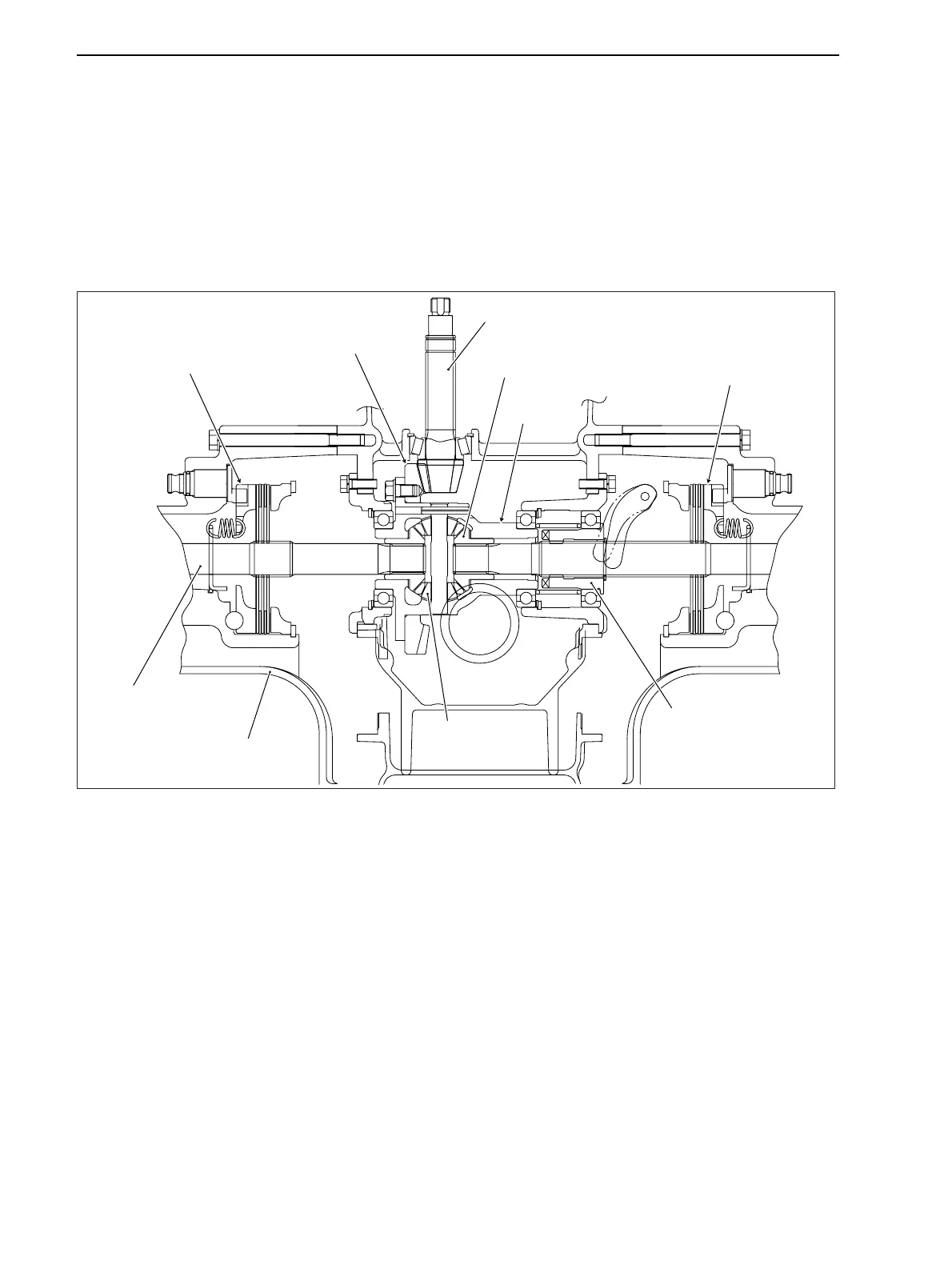

6.1 Structure of Rear Axle and Brake
The drive is transmitted from the pinion shaft to the axle shaft via spiral bevel gear (differential ring gear),
differential pinion, differential side gear, and final gear.
The differential lock device can be locked by operating the sleeve on the right of differential case in foot-operating
jaw clutch.
Wet type brake is applied for the brake.
60106010 6010
32205
Pinionshaft6T
Sidegear
Differential
case
BrakeRH
Hanggear35T
BrakeLH
Sleeve
Differential
pinion
Rearaxlecase
Differentialshaft
GZ3W25-001
