Rear Axle and Brake 6
88

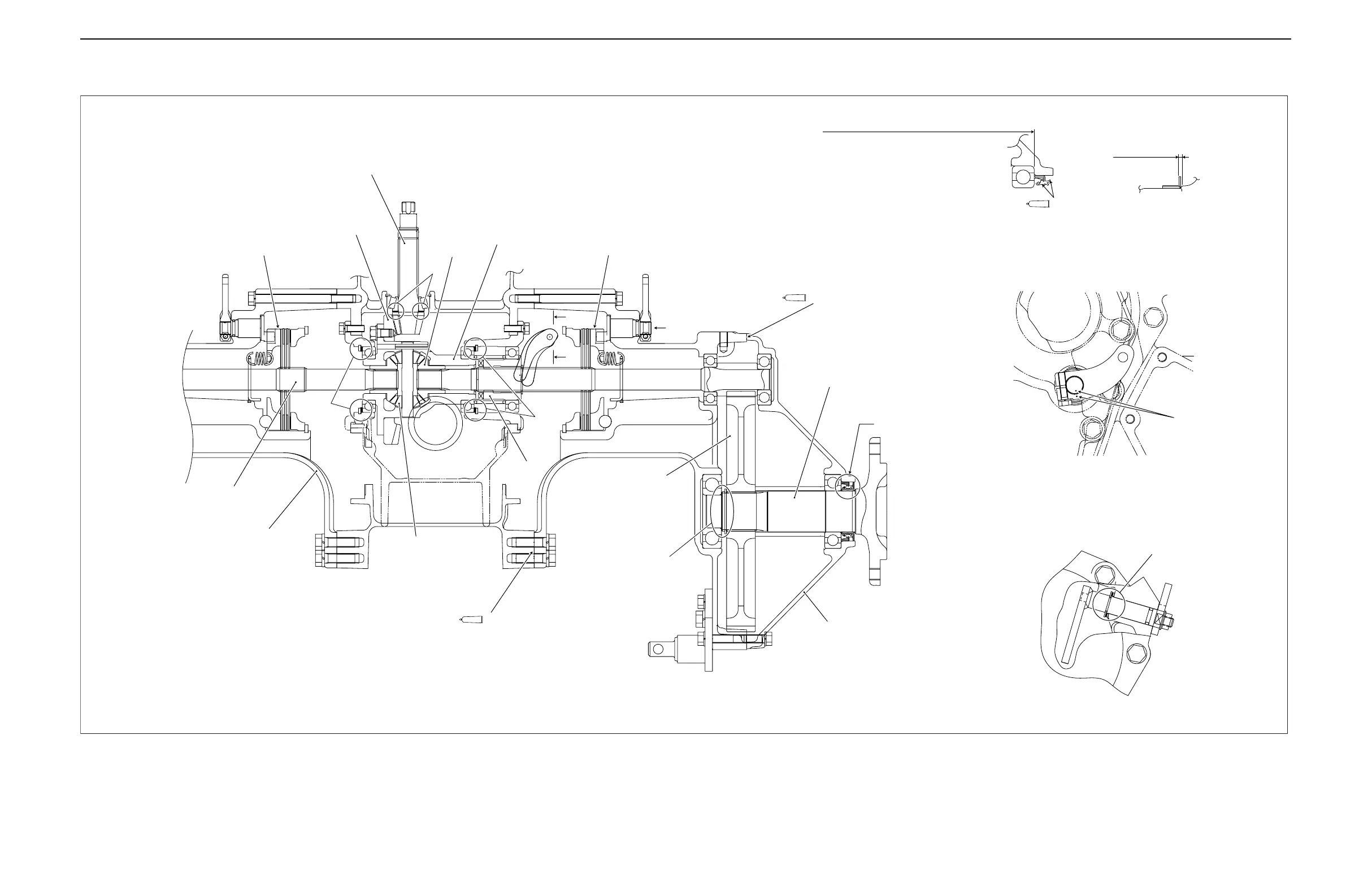

6.5 Assembly and Installation of Rear Axle and Brake
Follow the procedure for removal and disassembly of rear axle in the reverse order for assembly and installation.
Ringgear35T
Sidegear
Differentialcase
BrakeRH
Pinionshaft6T
BrakeLH
"B"
"C"
"E"
Z
Y
X
Z
"A"
Differentialshaft
Differentialpinion
Sleeve
Finalgear
Axlecover
Rearaxle
Rearaxlecase
Matchmark
"D"
ZtoZ
Y
X
Packing
Packing
Shaftside
1mm{0.039in}
Grease
GZ3W25-013
Caseside
Pressfittoflushoilsealendandbearingsideface.
