Cautionary Items at Operation 2
15

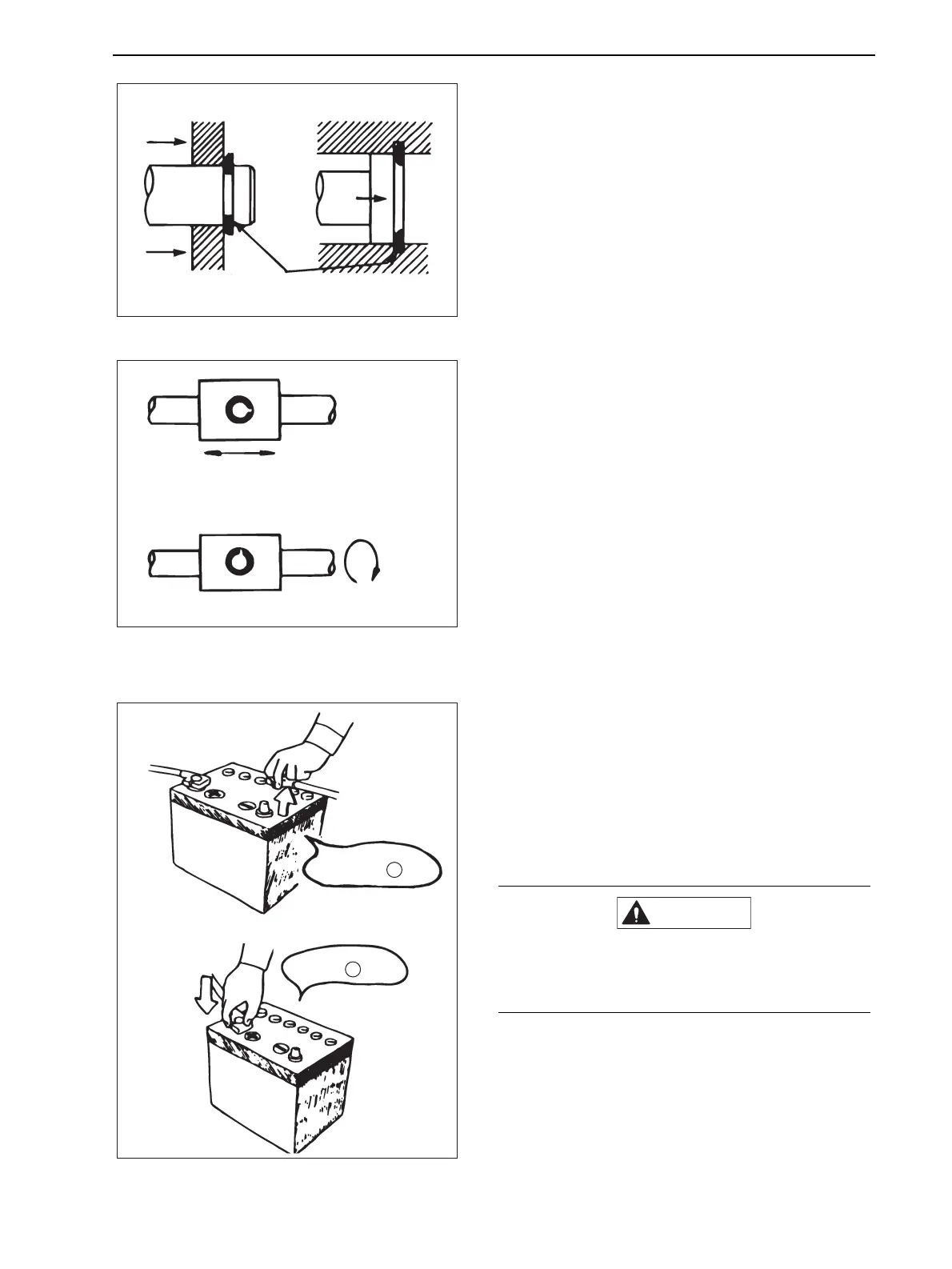

6. Mount C-rings for shaft and hole, as shown in the
figure, toward the flat face of the C-rings to the
same direction which the force is received.
7. Drive the spring pins, as shown in the figure,
toward the split (joint) to the same direction which
the force is received.
8. Change with new split cotter pins and make sure
split them completely to prevent from coming off.
9. Tighten with specified torque for the parts specified
using the torque wrench.
Reference) Refer to the list for tightening
torque.
2.2 Cautionary Items at Handling
Electrical Equipment and
Electrical Wiring
Make sure the safety and take cautions for the below
items at handling of electrical equipment and electrical
wiring in order to prevent the equipment and peripheral
equipment from damaging.
• Disconnect the negative cable first when
disconnecting the battery cable and connect the
positive cable first when connecting.
• Inspect the electrical wiring for the damage or
looseness of junction once a year.
W
ARN
I
N
G
Make sure to turn off the starter switch and
disconnect the battery negative cable before
starting the inspection of junction.
GS7W1-003
For shaft For hole
Flat face directs to direction of
receiving force.
GS7W1-004
For parallel motion
For rotation
GS7W1-005
At Disconnection
Disconnecting
Disconnect - first.
Connect + first.
At Connection
Setting
