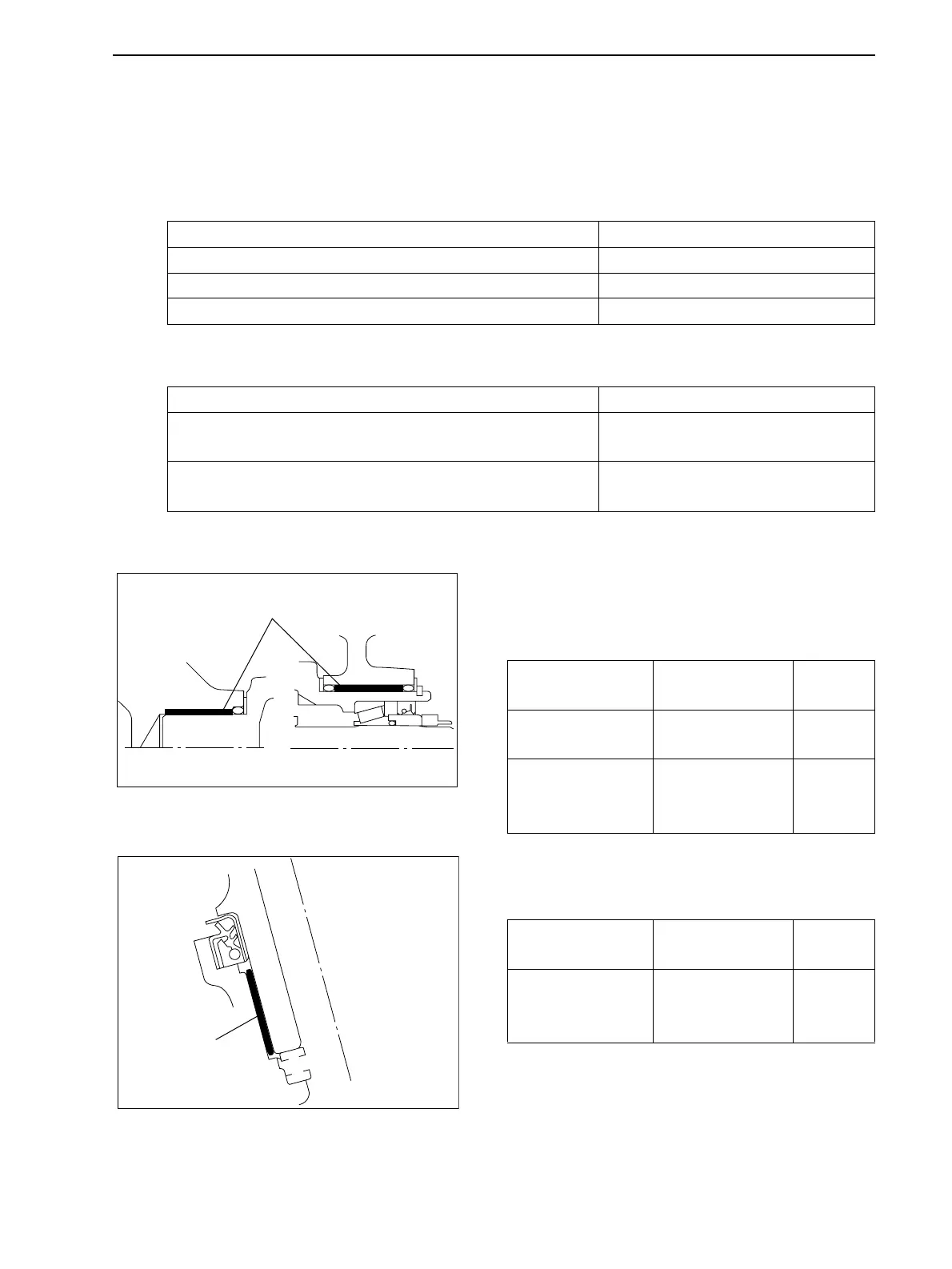

7.4 Inspection and Adjustment of Front Axle
7.4.1 Backlash
1. Inspect the backlash for pinion gear and lateral clearance of deferential case and change or adjust the ones
exceeding the referential value.
(Unit: mm {in})
2. Inspect the backlash for bevel gear and adjust the ones exceeding the referential value.
(Unit: mm {in})
7.4.2 Clearance of Bush
1. Inspect the clearance of the bush for front and rear
bracket and change the ones exceeding the usable
limit.
(Unit: mm {in})
2. Inspect the clearance of the bush for final case and
change the ones exceeding the usable limit.
(Unit: mm {in})
Item Referential Value
Backlash for pinion gear and side gear 0.10 to 0.30 {0.004 to 0.012}
Lateral clearance of deferential case 0 to 0.10 {0 to 0.004}
Backlash for pinion shaft and deferential ring gear 0.25 to 0.35 {0.01 to 0.014}
Item Referential Value
Backlash for deferential shaft bevel gear 14T and kingpin shaft
bevel gear (top) 18T
0.20 to 0.40 {0.008 to 0.016}
Backlash for axle shaft bevel gear 32T and kingpin shaft bevel
gear (bottom) 12T
0.20 to 0.40 {0.008 to 0.016}
Item Referential Value
Usable
Limit
Clearance bet. holder
and front bracket
0.03 to 0.065
{0.0012 to 0.0026}
0.20
{0.008}
Clearance bet. holder
and bush for rear
bracket
0.03 to 0.08
{0.0012 to 0.003}
0.20
{0.008}
Item Referential Value
Usable
Limit
Clearance bet.
kingpin case and
bush
0.03 to 0.08
{0.0012 to 0.003}
0.20
{0.008}
Clearance
GS7W3-205
Clearance
GS7W3-206
