Transmission 5
52
5Transmission

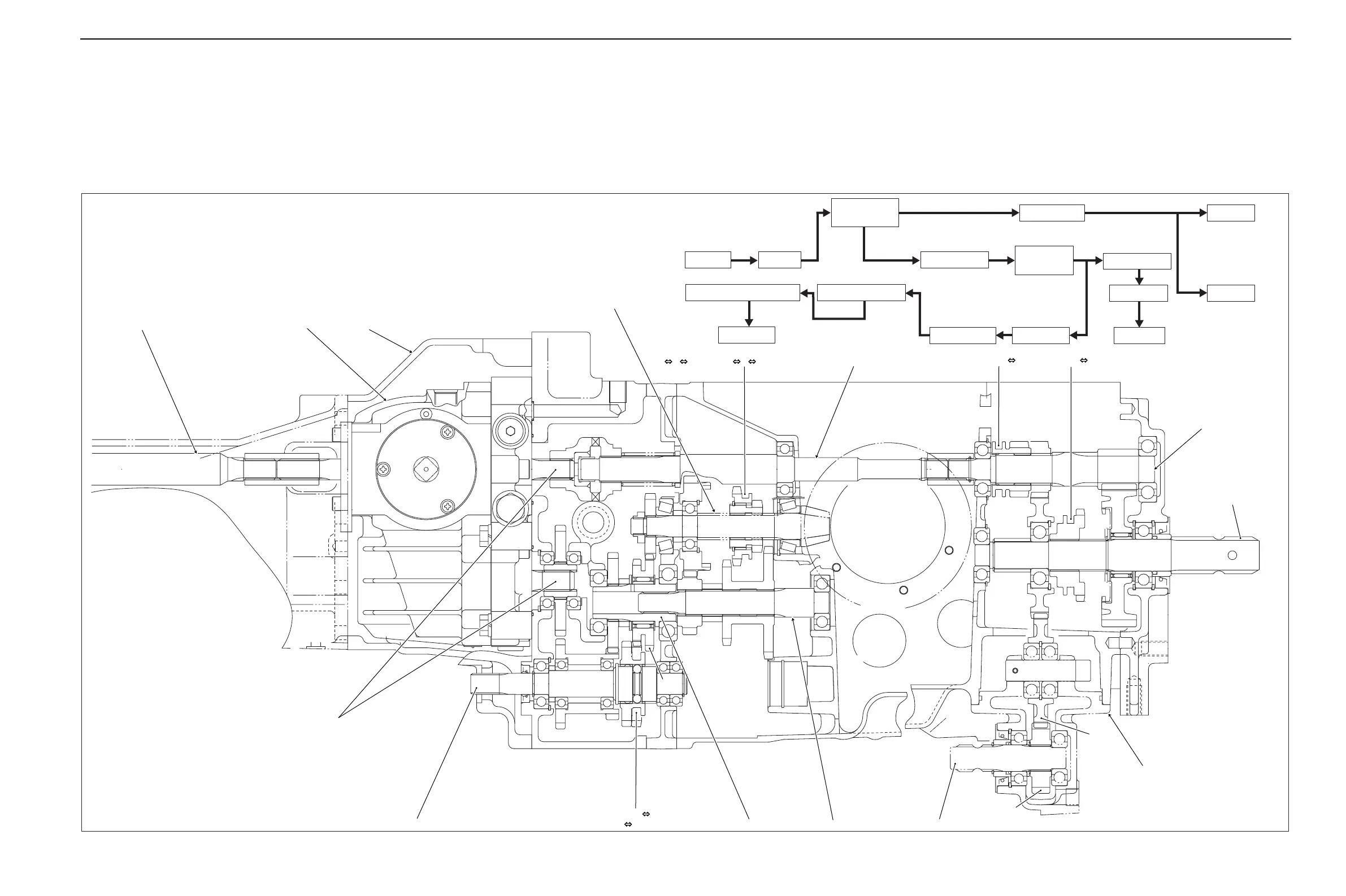

5.1 Transmission Assembly Outline
5.1.1 7532
• The main transmission is forward/reverse infinitive transmission and range transmission is 3-range transmission.
• PTO gearing: 1-stage rear PTO and 1-stage MID PTO.
25T
Sub gearing
Low N Intermediate N High
MID PTO
OFF ON
Rear PTO
OFF ON
Rear PTO shaft
Shaft
PTO drive shaft
Transmission case
MID PTO shaft
Shaft
4WD shaft
Sub shaft
Pinion shaft
Engine
Front wheel 2
nd
and 3
rd
deceleration Front wheel 1
st
deceleration
Clutch 1
st
deceleration
Sub gearing
(3-stage)
PTO clutch Rear PTO
MID PTO
Front differential
Rear differential
Final Gearing
Rear wheel4WD change
HST unit
(Main gearing)
Front Wheel
Drive shaft HST HST case
10T
46T
41T
19T
33T
44T
30T
34T
25T
30T
35T
31T
25T
32T
23T
14T
36T
22T
40T
18T
OFF ON
2WD 4WD change
HST output shaft
GZ3W24-001
