Clutch 3
33
3.4 Removal and Disassembly of
Clutch
Follow the following procedure for removal of the clutch.

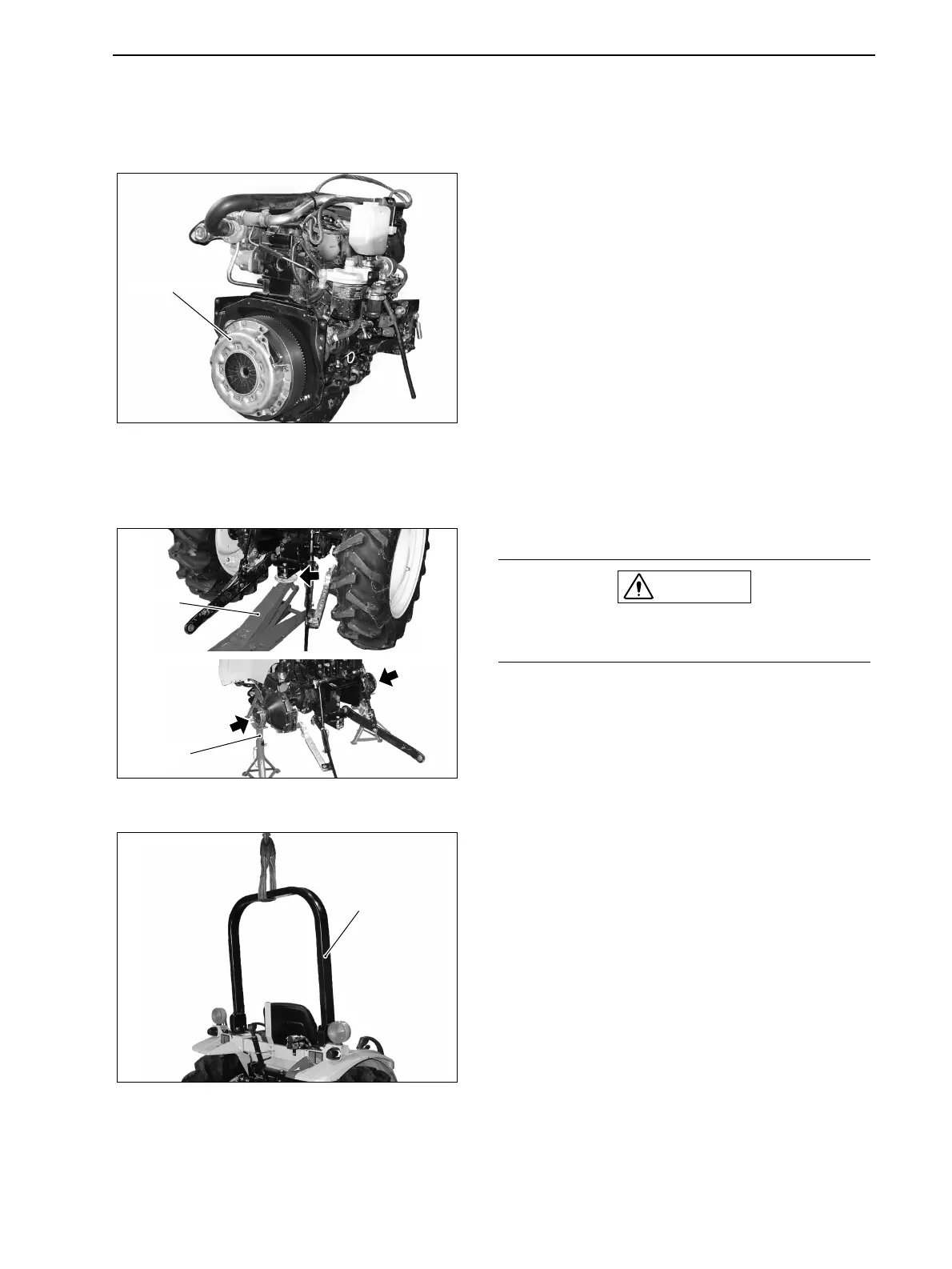

1 Removal of Clutch Assembly
After removing the engine assembly, remove the clutch
assembly (clutch cover and clutch disc) by removing
fixing bolts. (M8×20 6 bolts)
2 In order to facilitate the removal and installation
of clutch housing, remove the tire, sheet and
fender.
1. Remove the tire by removing fixing bolts.
Reference) Jack-up point is as shown in the
photo.
2. Remove the protection frame.
CAUTION
Hang the upper part of the protection guard to
prevent the stumbling and falling off.
Clutchassembly
GZ3W22-005
Jack
Stand
GZ3W22-006
Protectionframe
GZ3W22-007
