D-Link DSL-3900 User Manual

20D-Link DSL-3900 User Manual
Section 4 - Conguration
Conguration

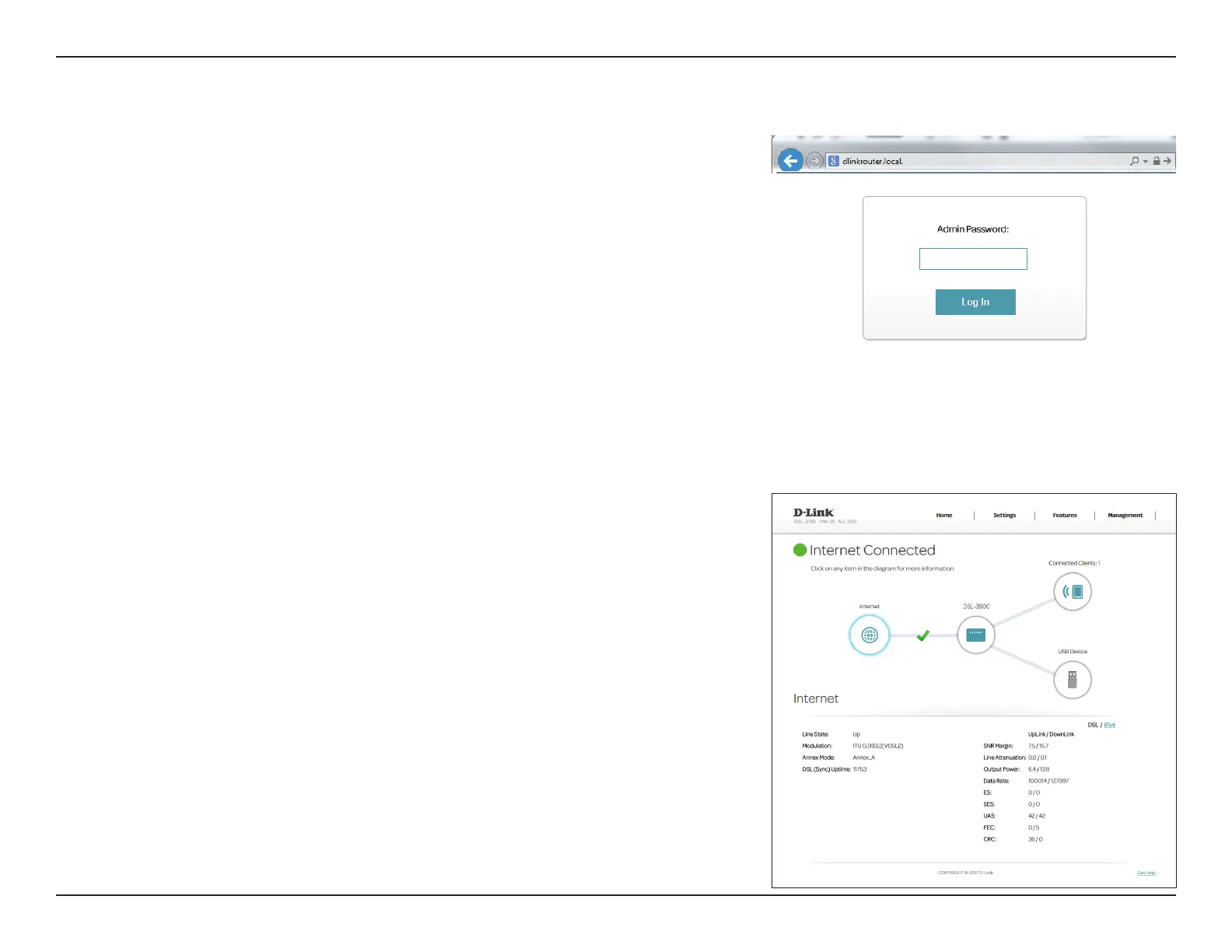

Input the default password as what is printed on the product label sticker
on the bottom. If you previously followed the Setup Wizard (see page 13),
please use the admin password you entered during the wizard. Click Log In to
proceed.
Note: If you cannot remember your password and cannot log in, press the reset
button (see page 5) to restore the router to its default settings.
To access the conguration utility, open a web browser such as Internet
Explorer and enter http://dlinkrouter.local./
Windows and Mac users may also connect by typing the IP address of the
router (by default this is http://192.168.1.1) in the address bar.
Home
The Home page displays the current status of the router in the form of an
interactive diagram. There are four main sections: Internet, D-Link, Connected
Clients, and USB Device. You can click each icon to display information about
each section at the bottom of the screen. The menu bar at the top of the
page will allow you to quickly navigate to the Settings and Management
functions. You may quickly jump back Home at any time.
Note: The system will automatically log out after a period of inactivity.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
