Section 4 - Conguration

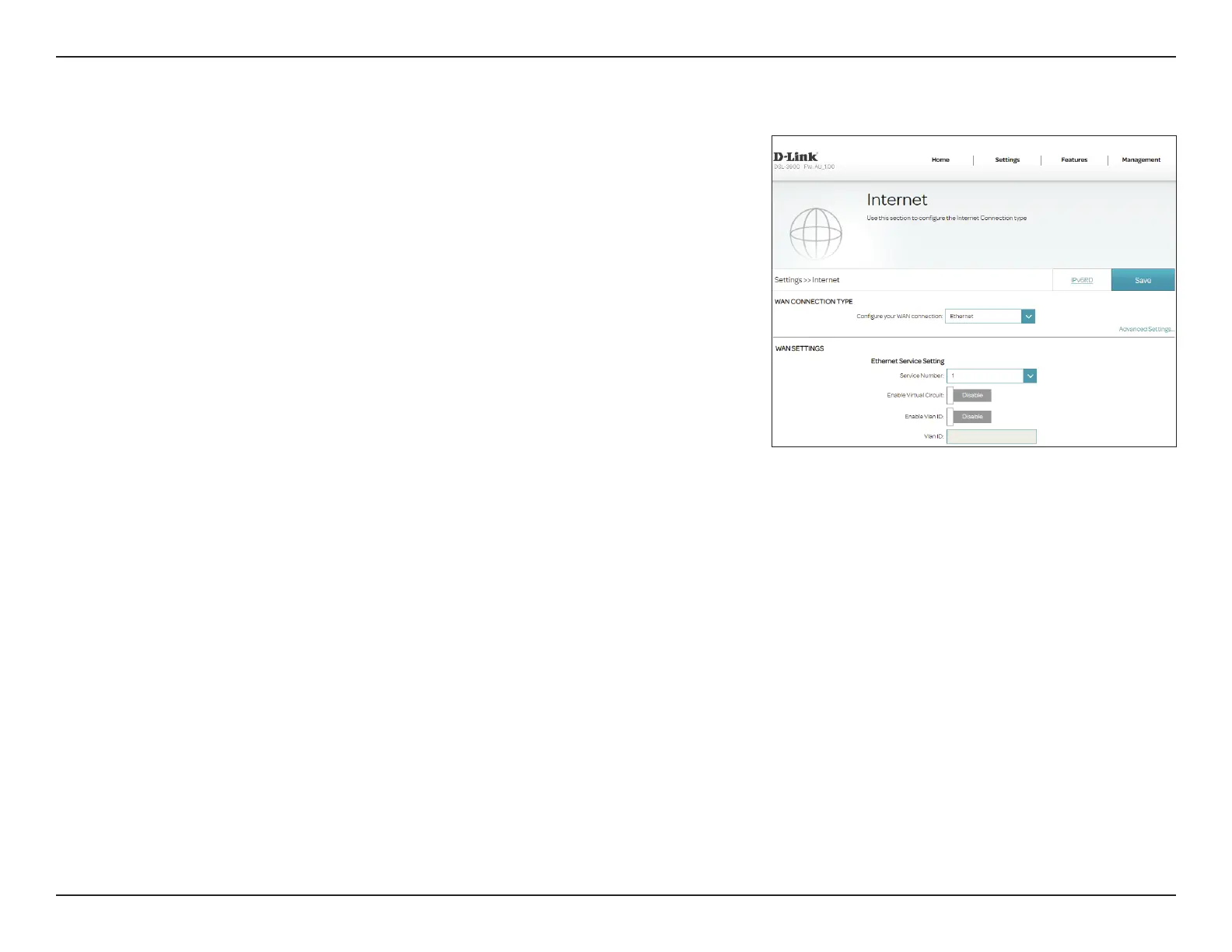

Ethernet
Your DSL-3900 is equipped with a multi-purpose Gigabit Ethernet LAN/WAN port which
can be used to connect to the Internet. This port may be used to connect to other Ethernet
based networks. In order for your DSL-3900 to use Ethernet, you must congure the Ethernet
Settings and your WAN Settings.
Congure your
WAN connection:
Select Ethernet to congure Ethernet connection settings.
WAN Settings
Service Number: Select a service number from the drop-down menu, or to create a
new service number, click Add.
Enable Virtual
Circuit
Enable or disable virtual circuit, also referred to as VLAN tagging.
Enable Vlan ID Enable or disable Vlan ID.
VLAN ID: Enter the VLAN ID. The value should be 0, or 0-4079.
Proceed to IPv4 Settings on page 32 or IPv6 Settings on page 83.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
