D-Link DSL-3900 User Manual

23D-Link DSL-3900 User Manual
Section 4 - Conguration
DSL
Line State: Displays the current status of the data link connection to your ISP.
Modulation: Displays the current DSL standard in use.
Annex Mode: Displays the current Annex mode in use.
DSL (Sync)
Uptime:
Displays the DSL connection uptime.
SNR Margin: Displays the Signal-to-noise margin.
Line Attenuation: Displays the current signal attenuation.
Output Power: Displays the output power of the DSL modem.
ES, SES, UAS, FEC,
CRC:
These error correction counts are used for diagnostic purposes. If
you are having trouble with your ISP, these values may provide useful
information for technicians.

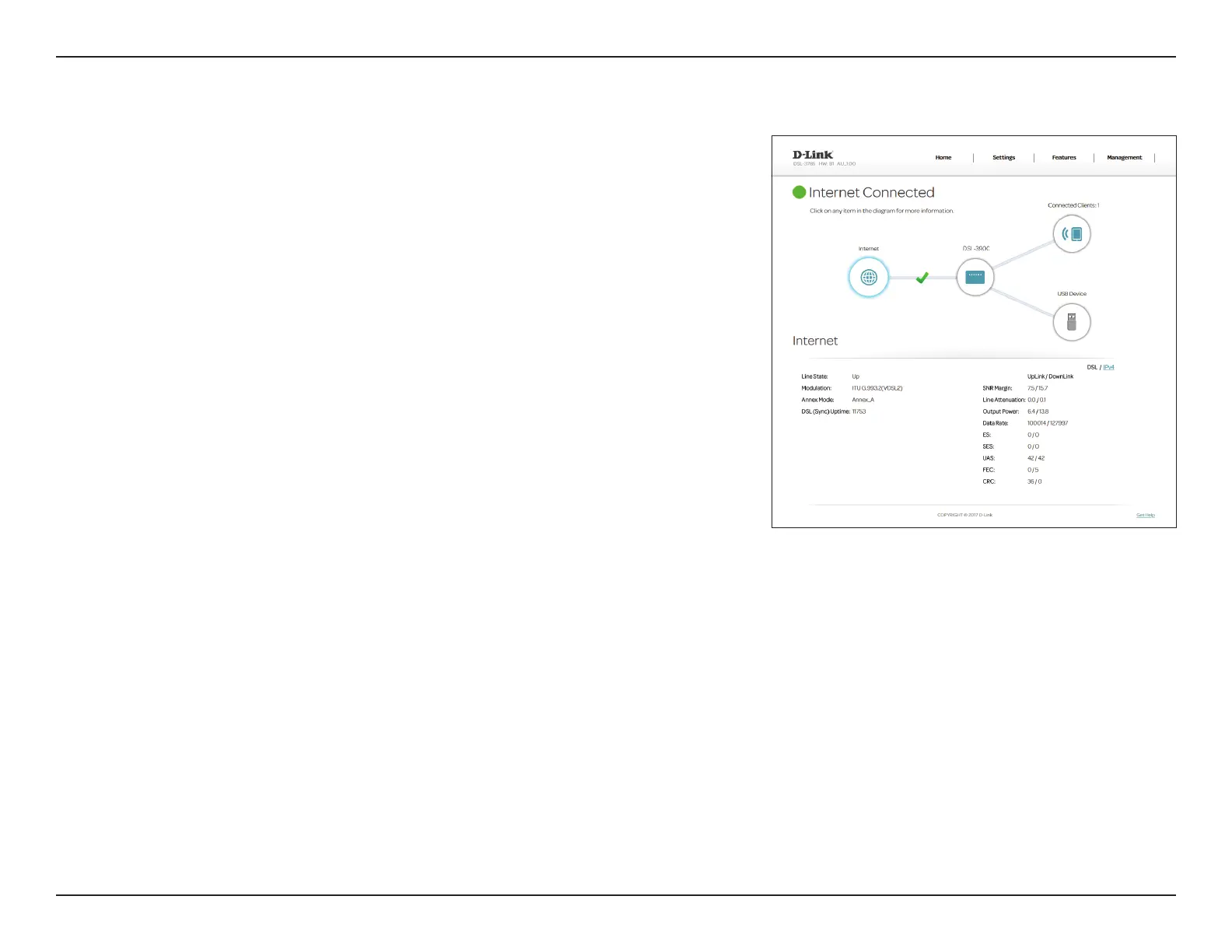

DSL
Click the DSL button to see the DSL port connection information. The DSL tab
displays information regarding the DSL data connection.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
