D-Link DSL-3900 User Manual

63D-Link DSL-3900 User Manual
Section 4 - Conguration

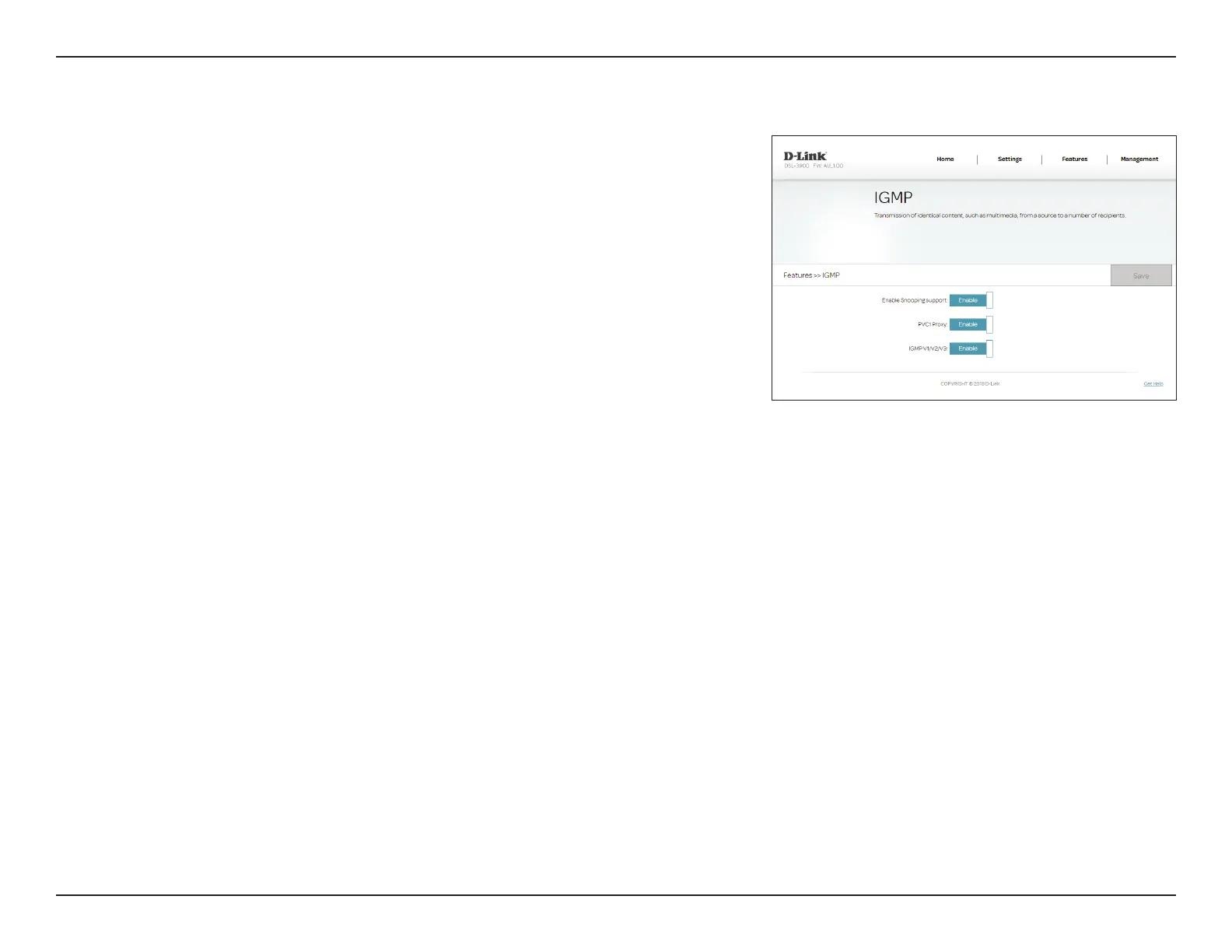

IGMP
Enable IGMP
Snooping:
Enable or disable Internet Group Management Protocol
(IGMP) snooping to build multicast tables.
PVC1 Proxy: Enable or disable PVC1 Proxy.
IGMP V1/V2/V3: Enable or disable IGMP V1/V2/V3.
Click Save when you are done.
The Internet Group Management Protocol (IGMP) Transmission allows for
the transmission of identical content, such as multimedia, from a source to a
number of recipients.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
