D-Link DSL-3900 User Manual

49D-Link DSL-3900 User Manual
Section 4 - Conguration

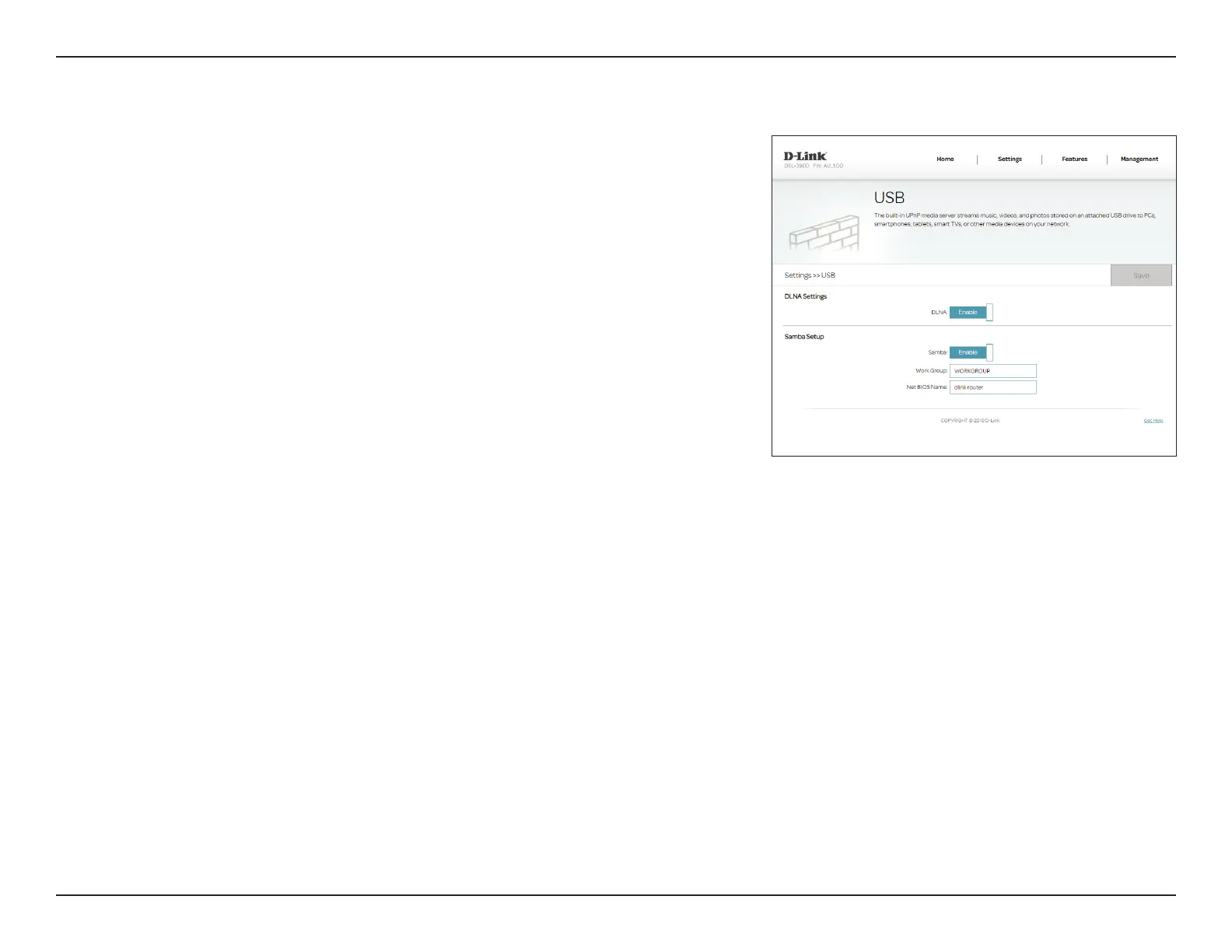

USB
This page will allow you to set up access to les on an external USB device
plugged into the router. You can do this through the local network. To access
this page, click USB from the Settings menu on the bar on the top of the
page.
DLNA Settings
DLNA: Enable or disable the DLNA media server functions, allowing
connected DLNA clients access to media les over the network.
Samba Setup
Samba: Enable or disable Windows File Sharing, or Samba. Computers and
devices which support Samba will be able to access the les on the
USB device connected to this router.
Work Group: Enter the Windows workgroup name.
Net BIOS Name: Enter the name for this device as you wish it to appear on your
network.
Click Save when you are done.
For information on how to access your USB drive from a Windows-based PC
refer to Connect and Share a USB Storage Device on page 73.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
