D-Link DSL-3900 User Manual

40D-Link DSL-3900 User Manual
Section 4 - Conguration

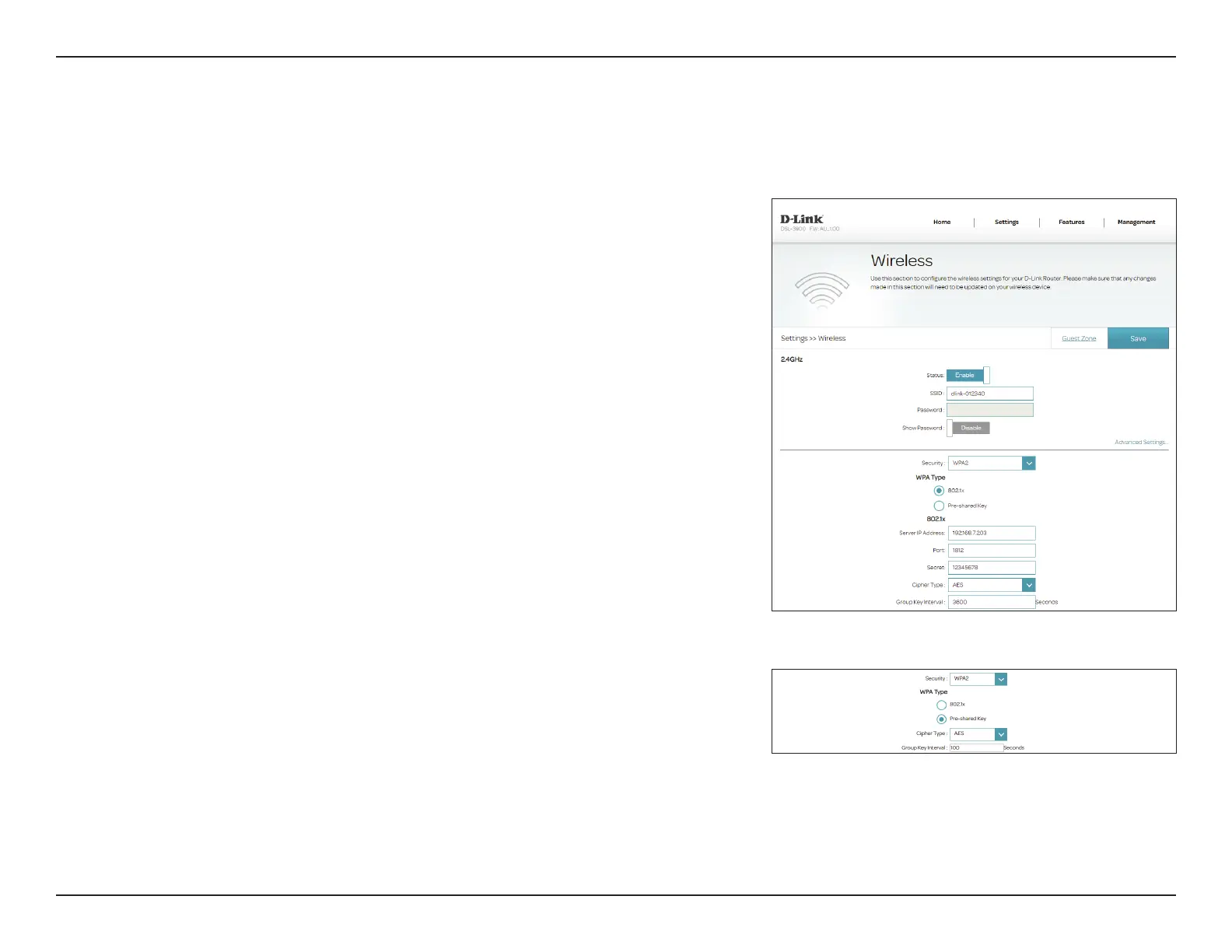

Advanced Settings
Clicking Advanced Settings allows you to manually congure security,
wireless radio operation, and schedule settings.
Security: Choose None, WEP-64Bit, WEP-128Bit, WPA2, or WPA/WPA2.
WPA2
Using WPA2 with AES encryption is recommended. Using it you can be
reasonably assured that your wireless connection is secure.
Security: WPA2
WPA Type
If you select 802.1x the following options are available:
Server IP Address: Enter the IP address of the RADIUS Server.
Port: Enter the port used by the RADIUS Server.
Secret: Enter the secret used by the RADIUS Server.
Cipher Type: Select either AES or Both (AES/TKIP). AES is recommended.
Group Key
Interval:
Enter the Group Key Interval. The default is 100 seconds.
If you select Pre-shared key the following options are available:
Cipher Type: Select either AES or Both (AES/TKIP). AES is recommended.
Group Key
Interval:
Enter the Group Key Interval. The default is 100 seconds.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
