Section 4 - Conguration

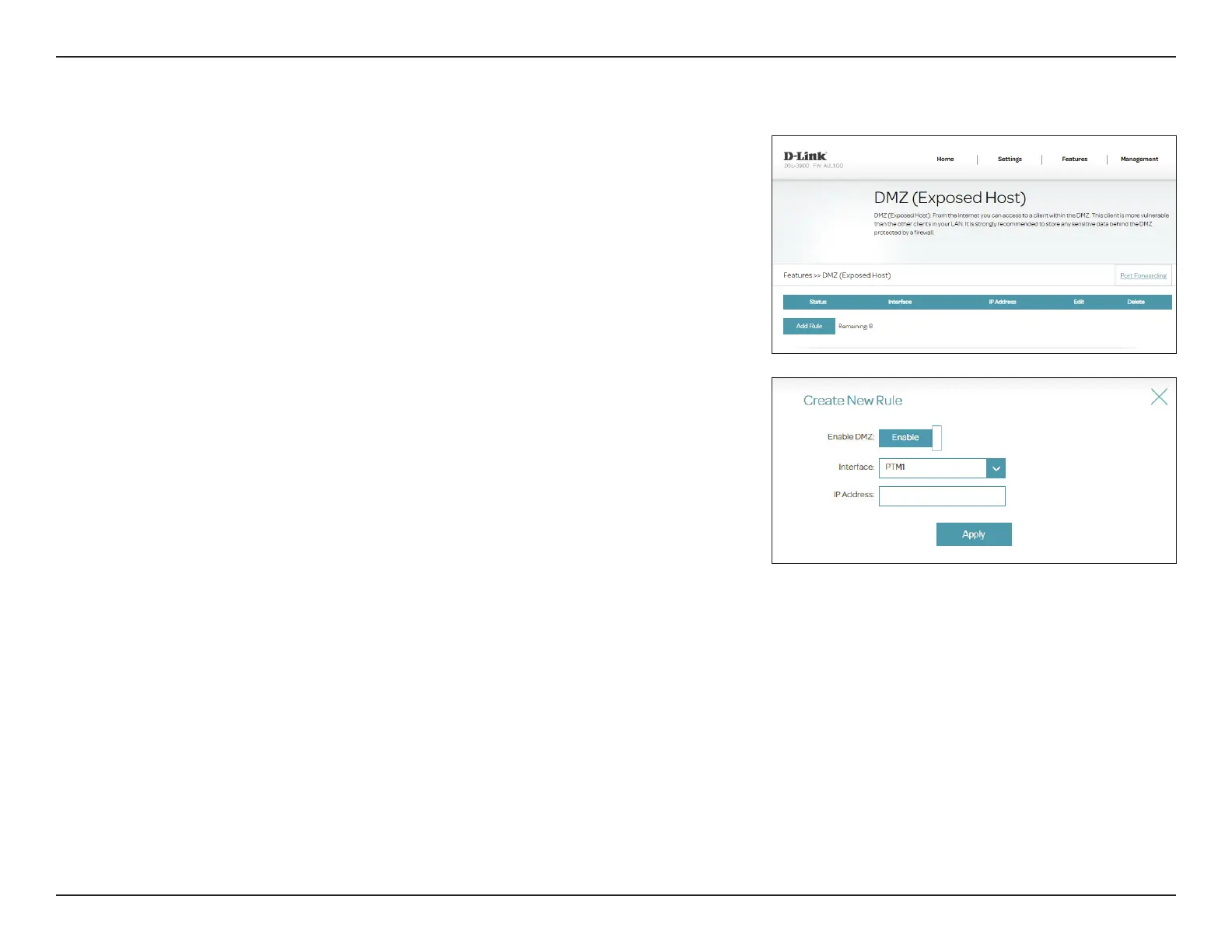

DMZ (Exposed Host)
This page allows you to manually congure the router’s DMZ settings. To
access this page, click Port Forwarding from the Features menu on the
bar on the top of the page and click DMZ (Exposed Host). Since some
applications are not compatible with NAT, the device supports the use of a
DMZ IP address for a single host on the LAN. This IP address is not protected by
NAT and it is visible on the Internet with the correct type of software.
Note: Any client PC in the DMZ is exposed to various types of security risks. If
you use DMZ, take measures (such as client-based virus protection) to protect
the remaining client PCs on your LAN from possible contamination through
DMZ.
The devices currently placed in the DMZ are displayed in the table. You may
place up to 8 devices in the DMZ. If you wish to remove a DMZ rule, click on its
trash can icon in the Delete column. If you wish to edit a DMZ rule, click on its
pencil icon in the Edit column. If you wish to create a new DMZ rule, click the
Add Rule button.
Create New Rule
Enable DMZ: Enable or disable the DMZ rule.
Interface: Select the interface to apply the rule to.
IP Address: Enter the IP address of the computer on your local network that you
want to place in the DMZ.
Click Apply when you are done.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
