D-Link DSL-3900 User Manual

30D-Link DSL-3900 User Manual
Section 4 - Conguration
VDSL
VDSL is one of the latest and fastest home broadband technologies. VDSL uses
the DSL port on your DSL-3900 to connect to the Internet. In order for your
DSL-3900 to use VDSL, you must congure the ATM VC Settings and your WAN
Settings.

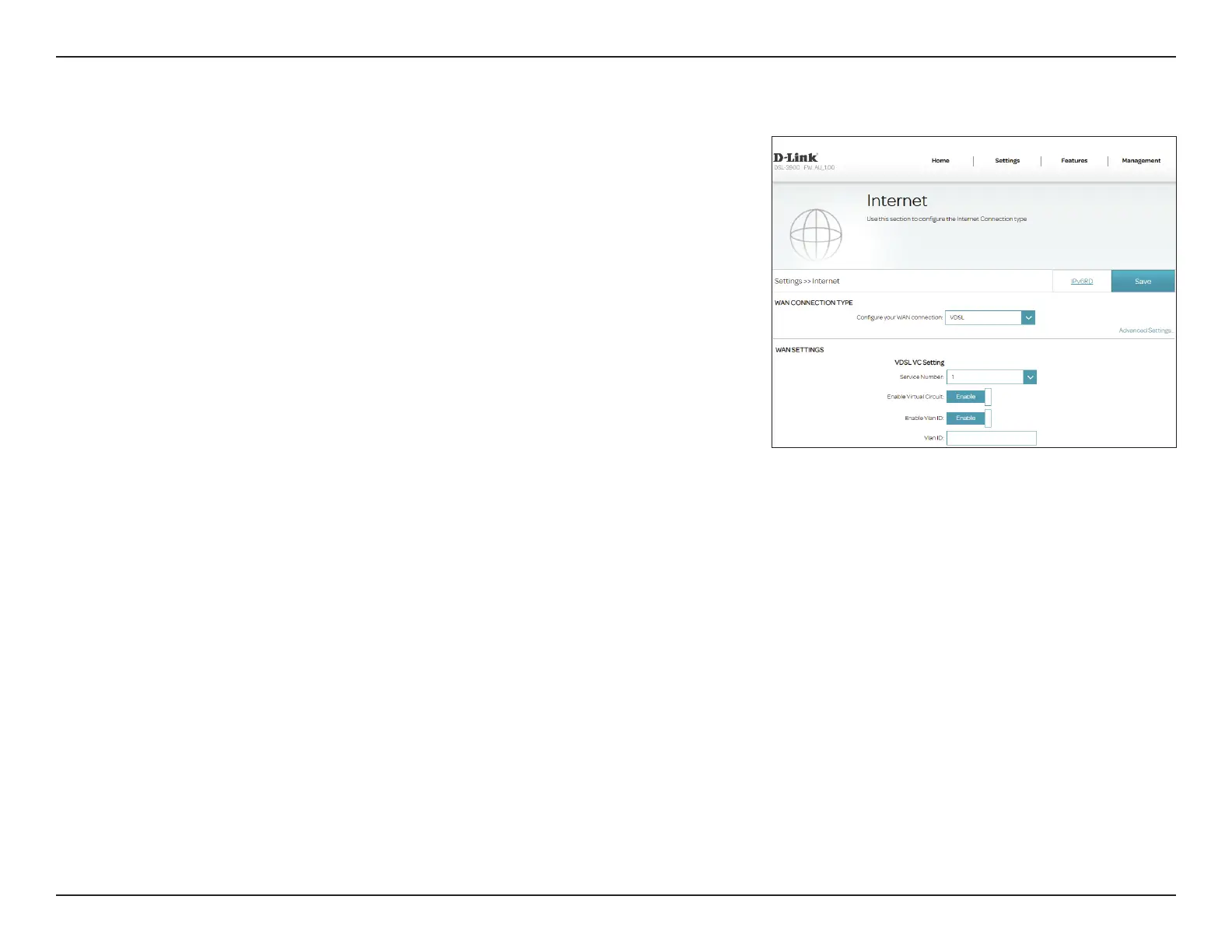

Congure your
WAN connection:
Select VDSL to congure ADSL connection settings.
If you click on Advanced Settings, the following WAN Settings are available:
VDSL VC Setting
Service Number: Select the service number from the drop-down menu. If no service
has previously been added, or you wish to add a new one, select Add.
Enable Virtual
Circuit:
Select whether to enable or disable this Virtual Circuit.
Enable Vlan ID: Select whether to enable or disable this Vlan ID.
Vlan ID: Enter the VLAN ID. Enter a value from 10 - 4096. The default value is
835.
To set your IPv4 connection parameters of WAN Settings, refer to WAN
Settings on page 32.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
