Section 4 - Conguration

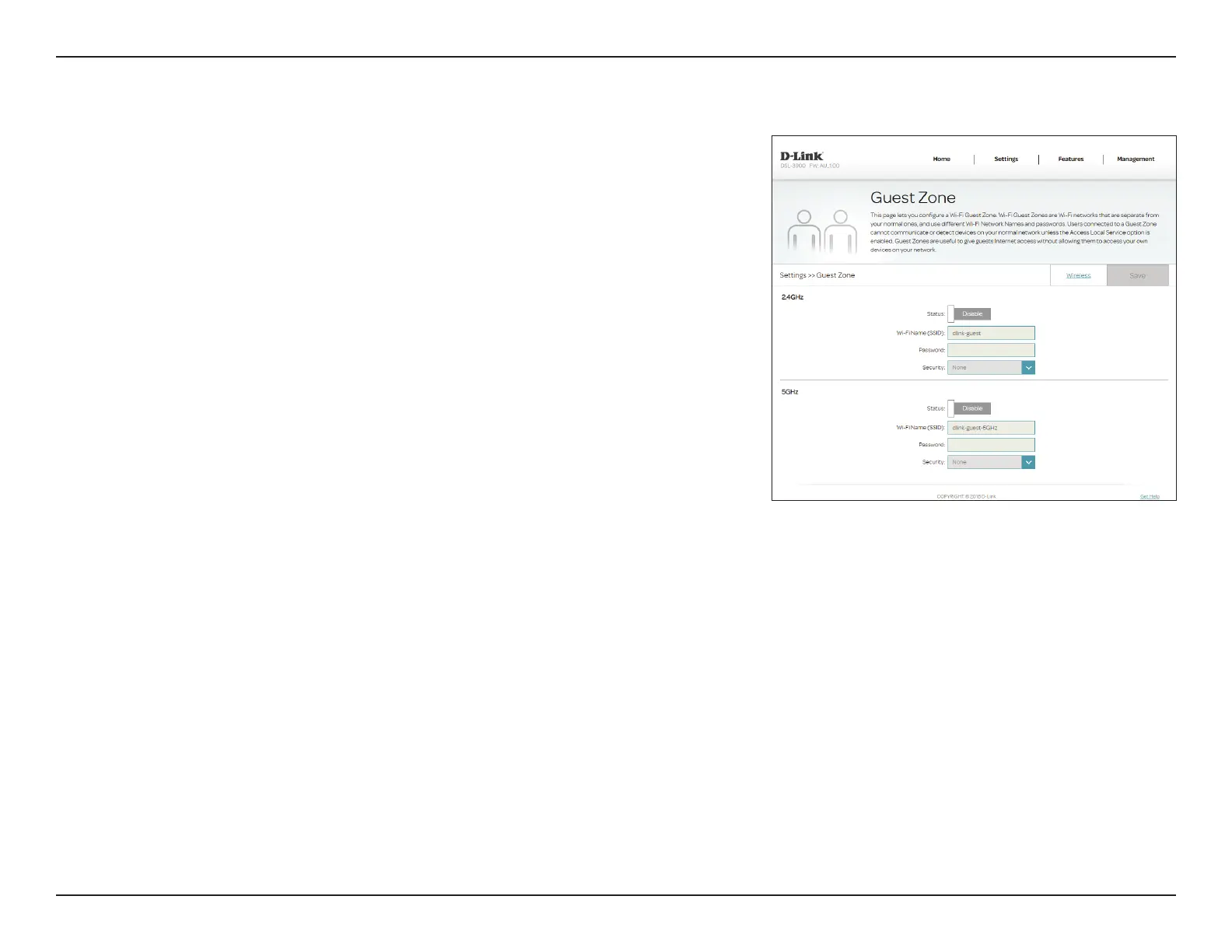

Guest Zone
The Guest Zone feature will allow you to create wireless networks that can be
used by guests to access the Internet. These zones will be separate from your
main wireless network. You may congure dierent zones for the 2.4 GHz and
5 GHz wireless bands. To access this page, click Wireless from the Settings
menu on the bar on the top of the page and click Guest Zone.
2.4 GHz / 5 GHz
Status: Enable or disable the selected SSID.
Wi-Fi Name (SSID): Enter a wireless network name (SSID) that is dierent from your main
wireless network.
Password: Create a password to use for wireless security. Wireless clients will
need to enter this password to successfully connect to the guest zone.
Security: Choose None, WPA2, or WPA/WPA2.
Click Save when you are done.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
