D-Link DSL-3900 User Manual

52D-Link DSL-3900 User Manual
Section 4 - Conguration

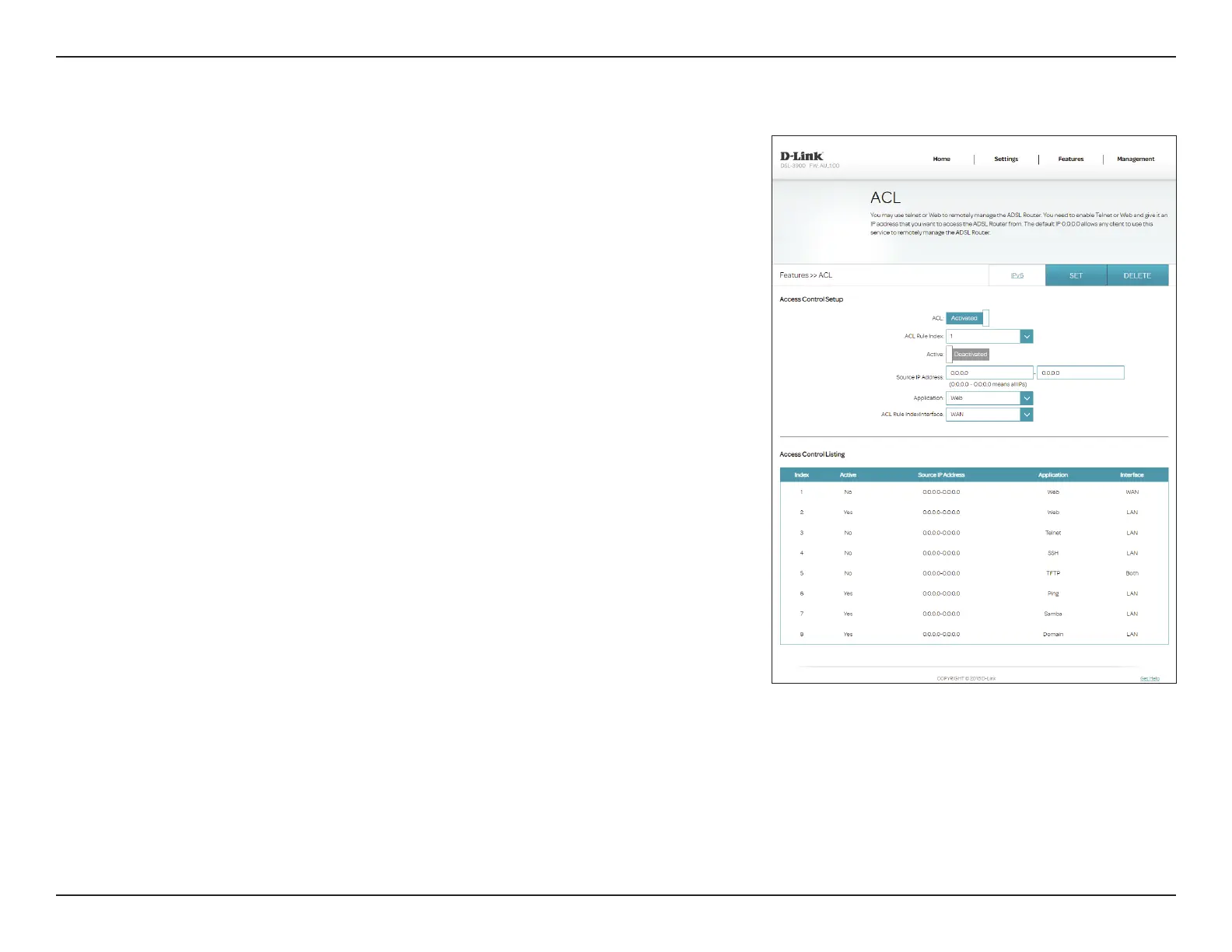

ACL
The Access Control List (ACL) page allows you to enable or disable various
services from being used on the LAN or WAN side. To access this page, click
ACL from the Features menu on the bar on the top of the page.
Access Control Setup
ACL: Activate or deactivate ACL.
ACL Rule Index: The ACL Rule Index number. Chose from 1 to 16.
Active: Activate or deactivate the individual ACL rule.
Service IP address: Enter the IP address range to apply the rule to.
Application: Select a pre-dened service.
ACL Rule
IndexInterface:
Select the interface from the drop down menu to apply this access
control list rule to.
Access Control Listing
A list of the currently dened Access Control List rules is displayed here. Click
the ACL Rule Index number from the drop-down menu above to modify one.
Click SET when you are done. Click DELETE to remove one from the index.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
