D-Link DSL-3900 User Manual

36D-Link DSL-3900 User Manual
Section 4 - Conguration
PPPoA
Select PPPoA if your ISP provides and requires you to enter a PPPoA username
and password in order to connect to the Internet. For ADSL connections only.

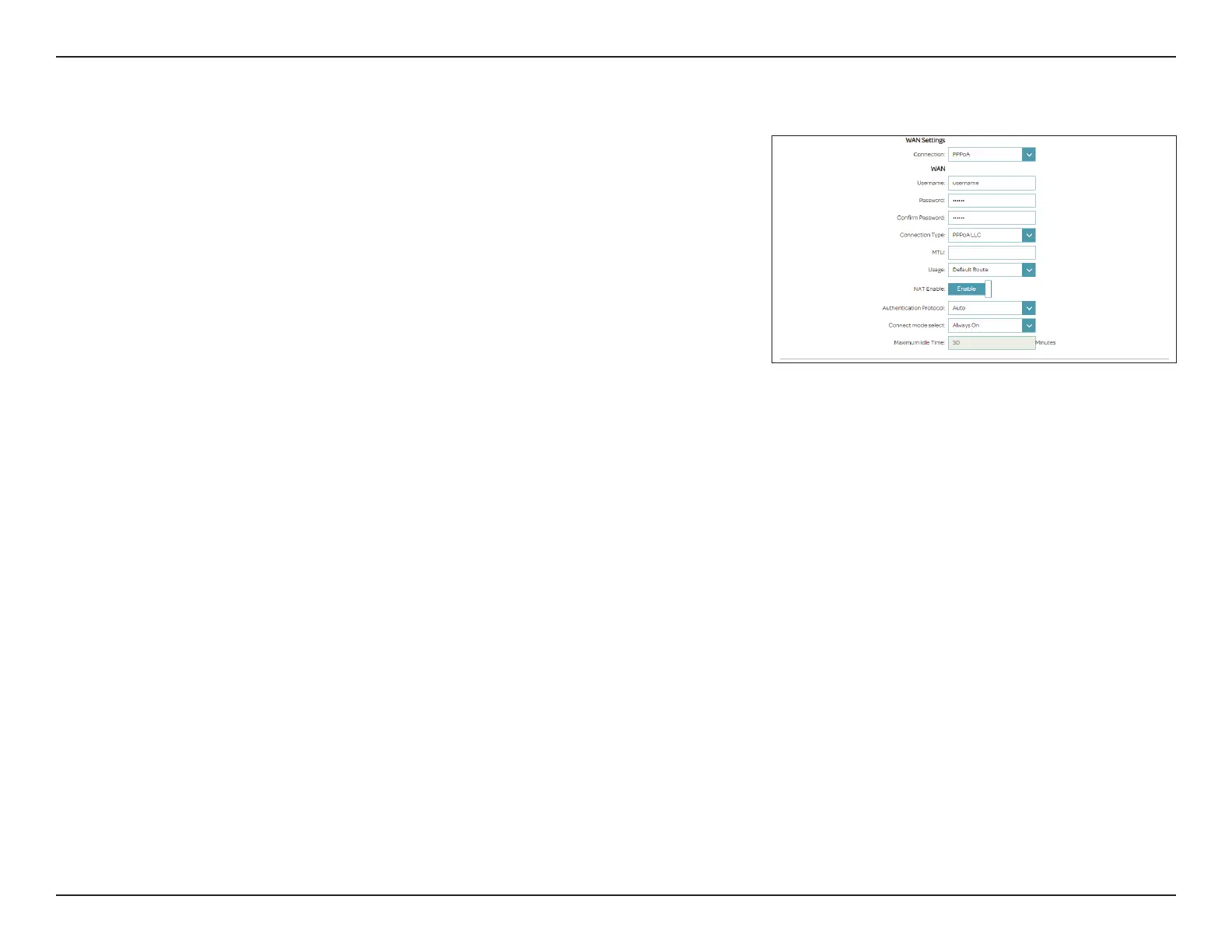

WAN Settings
Connection: Select PPPoA.
Username: Enter the username provided by your ISP.
Password: Enter the password provided by your ISP.
Conrm Password: Enter the password provided by your ISP again.
Connection Type: Select PPPoA LLC or PPPoA VC-Mux.
MTU: Maximum Transmission Unit - you may need to change the MTU for
optimal performance with your ISP.
Usage Select Default Route or None.
NAT Enable: Enable or disable Network Address Translation.
Authentication
Protocol:
Select the authentication protocol your ISP uses. The options are
Auto, PAP, or CHAP.
Connect mode
select:
Set the connection to be Always-on, Connect-On-Demand, or
Manual.
If you selected Connect-On-Demand, the following option is available:

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
