D-Link DSL-3900 User Manual

46D-Link DSL-3900 User Manual
Section 4 - Conguration

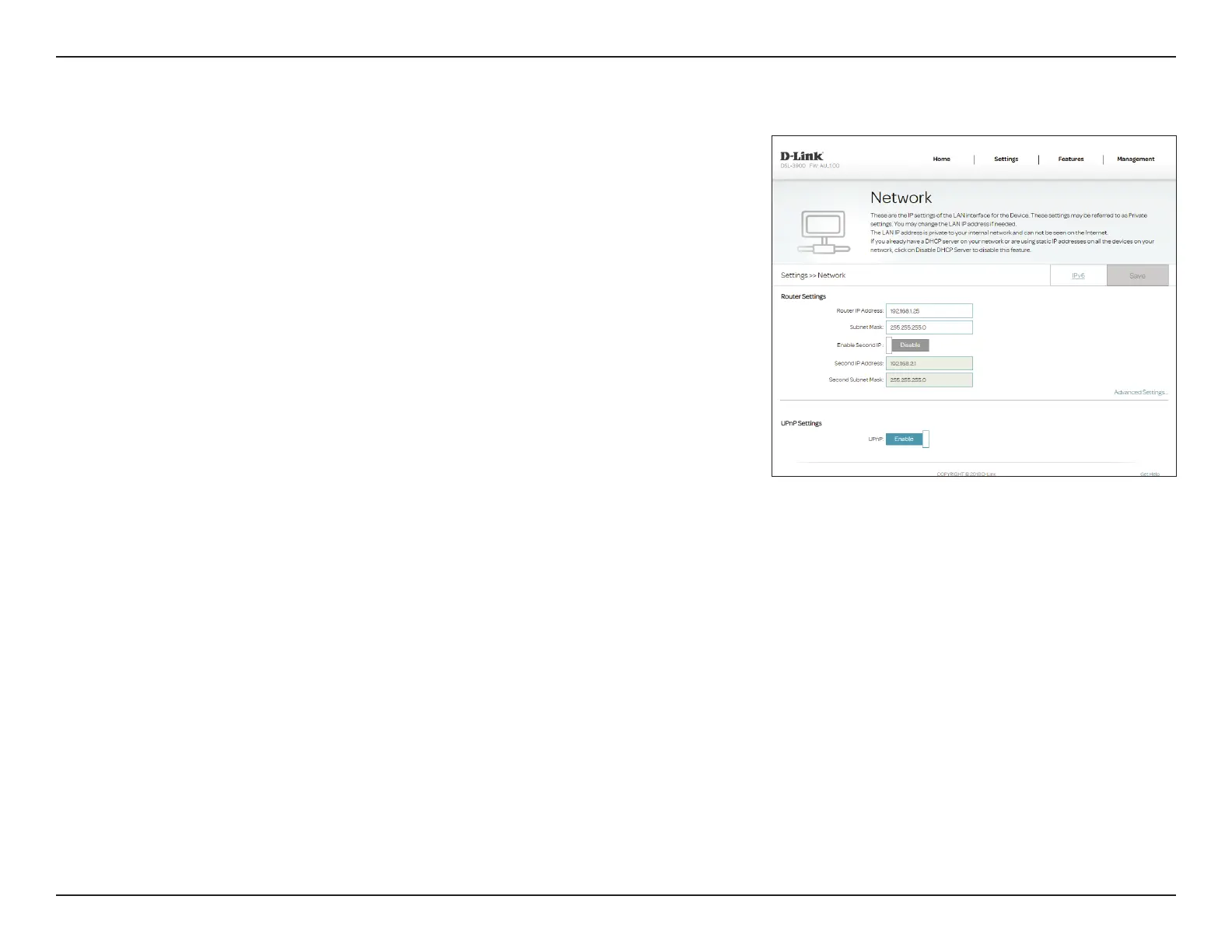

Network
Router Settings
Router IP Address: Enter the IP address of the router for this interface. The default IP
address is 192.168.1.1.
If you change the IP address, once you click Save, you will need
to enter the new IP address in your browser to get back into the
conguration utility.
Subnet Mask: Enter the subnet mask of this interface. The default subnet mask is
255.255.255.0.
Enable Second IP: Enable or disable the dual LAN IP capability of this router. The default
setting is Disabled.
Second IP
Address:
Enter the second IP address of the router for this interface. The default
IP address is 192.168.2.1.
Second Subnet
Mask:
Enter the second subnet mask of this interface. The default subnet
mask is 255.255.255.0.
UPNP Settings
UPNP: Enable or disable UPNP.
Click Save when you are done or click Advanced Settings.
This section will allow you to change the local network settings of the router
and to congure the DHCP settings. To access this page, click Network from
the Settings menu on the bar on the top of the page.

D-Link DSL-3900 Specifications

General

Ethernet WAN	Yes
SIM card slot	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (max)	2600 Mbit/s
WLAN data transfer rate (first band)	800 Mbit/s
WLAN data transfer rate (second band)	1753 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2
Processor cores	2

Weight and Dimensions

Depth	45.5 mm
Width	258.8 mm
Height	184.1 mm
