14D-Link ShareCenter DNS-340L User Manual
Section 1 - Product Overview

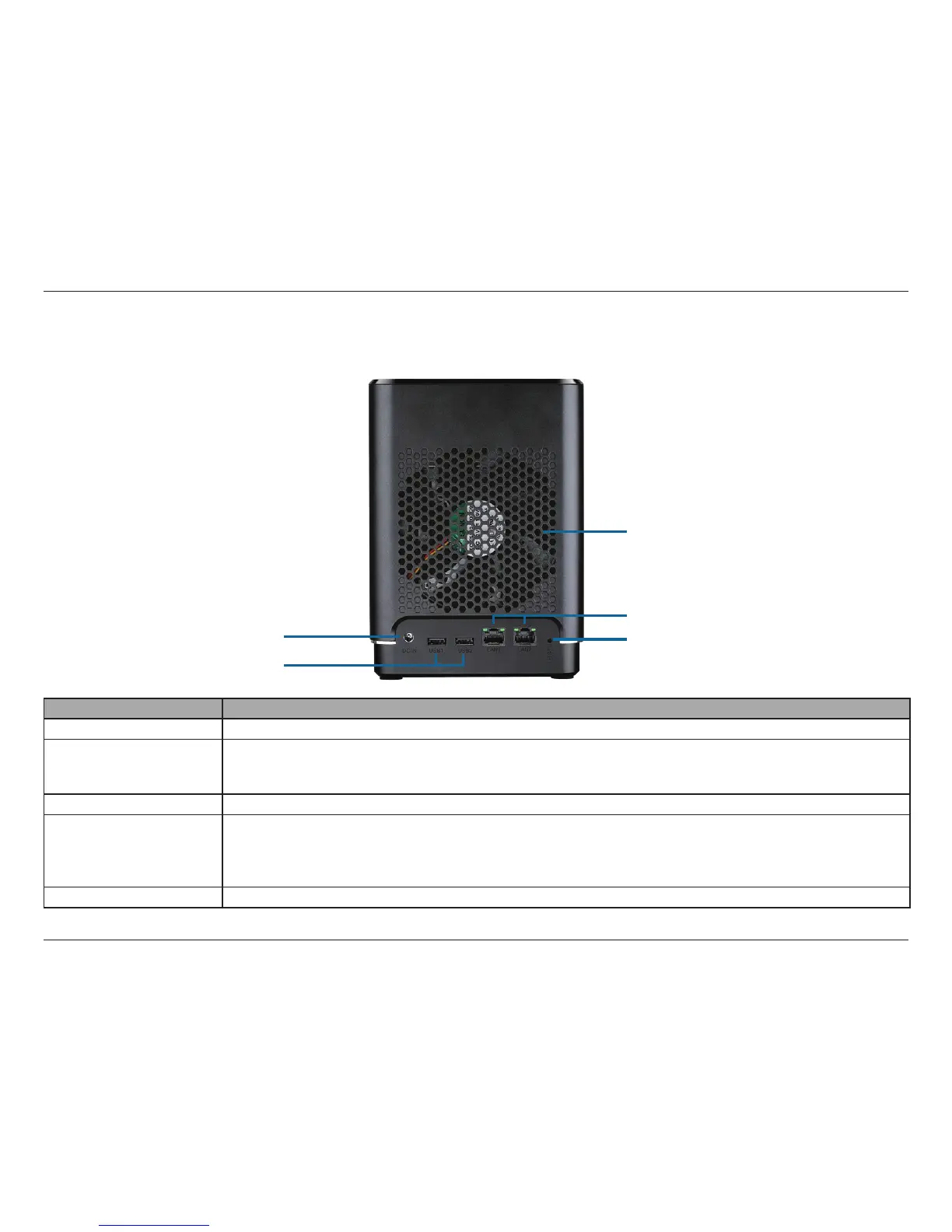

Rear Panel
Cooling Fan/Outlet
Power Receptor
Gigabit Ethernet Port
USB Ports
COMPONENT DESCRIPTION
Power Receptor Connect the supplied power cord to the receptor.
Cooling Fan/Outlet
The cooling fan cools the hard drives and features speed control. When the unit is rst powered on, the fans
rotate at a low speed, when the temperature inside the unit rises above 49 °C it will start to rotate at a higher
speed. Do not cover or obstruct this outlet.
USB Port Two USB 2.0 (type A) connectors. The USB Host port is for Printers, USB storage, or USB UPS monitoring.
Gigabit Ethernet Ports
Use the Gigabit Ethernet ports to connect the ShareCenter to your local network. The port is equipped with 2 LEDs.
The LED on the left will illuminate solid green for a good connection and will blink during data transmission. If this
LED is o, check the connection/cable to the device you are connecting to. The LED on the right will light solid for a
Gigabit connection and will remain o when connected to a 10/100 Mbps device.
Reset Button Press and hold this button for more than 5 seconds to reset it to its factory defaults.
Reset Button
To Next Page
