Daikin Altherma HT Service Manual

Field Setting ESIE09-08B
106 Test Operation
3.2 Field Setting from Outdoor Unit
Caution Capacity Setting after changing the main outdoor PC Board (A1P) to spare parts PC Board
When you change the main PC Board (A1P) to spare parts PC Board, please carry out the
following setting.
Please Attach the Capacity Setting Adapter corresponding to Capacity Class (ex. 112, 140, 160) in connector X51A.
(See Below)
Capacity Setting Adapter
1
2
3
Capacity Class
4 (112)
5 (140)
6 (160)
CAPACITY SETTING ADAPTER (for 11kW/J112)
CAPACITY SETTING ADAPTER (for 14kW/J140)
CAPACITY SETTING ADAPTER (for 16kW/J160)

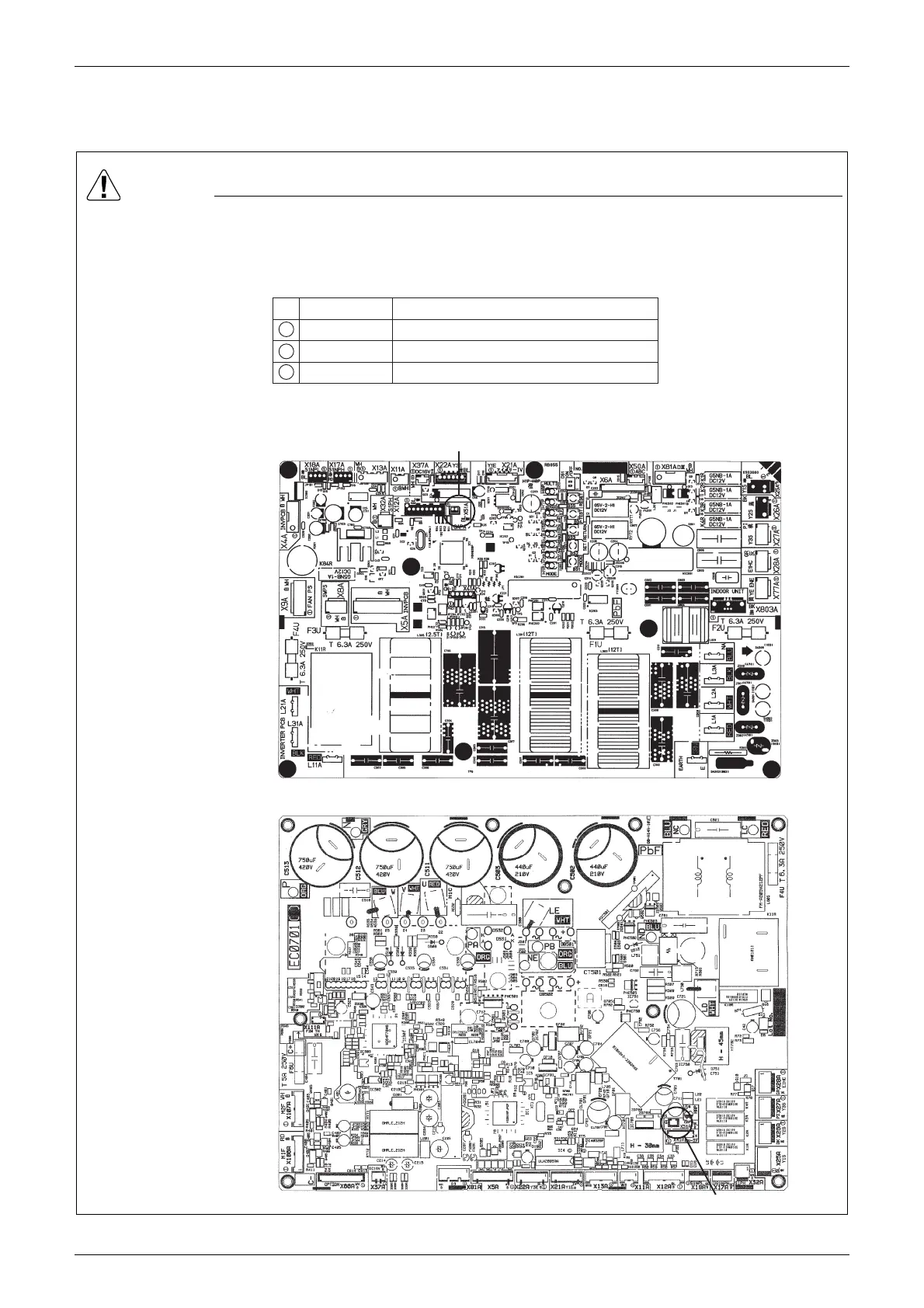

Position of Attaching the Capacity Setting Adapter
ERRQ 011/014/016 AAY1
ERSQ 011/014/016 AAY1
ERRQ 011/014/016 AAV1
ERSQ 011/014/016 AAV1
Note
X51A
X51A

Daikin Altherma HT Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-410A
Water Outlet Temperature	Up to 80°C
Operating Temperature Range	-20°C to 35°C
Power Supply	3-phase, 400V
Energy Efficiency Class (Heating)	A++
