ESIE09-08B External Backup Heater Kit
Appendix 257

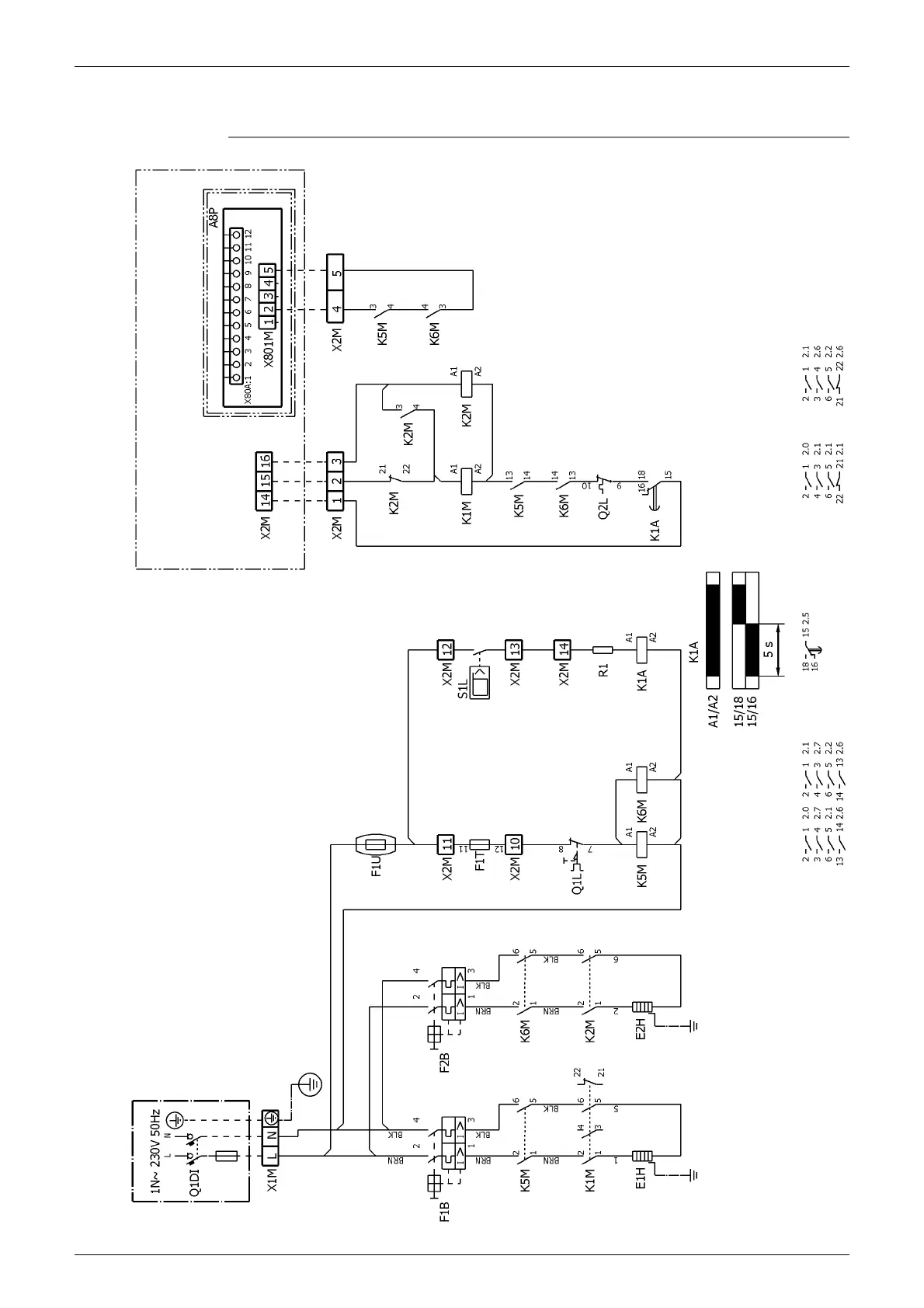

7.9 Wiring Diagrams
EKBUHAA6V3
Power supply
Indoor unit
Option demand PCB
Common
BUH step 1 (3kW)
BUH step 2 (6kW)
