Daikin Altherma HT Service Manual

PCB Layout for EKHBRD 011/014/016 AA/AB/AC/AD V1/Y1 ESIE09-08B
40 Refrigerant Circuit

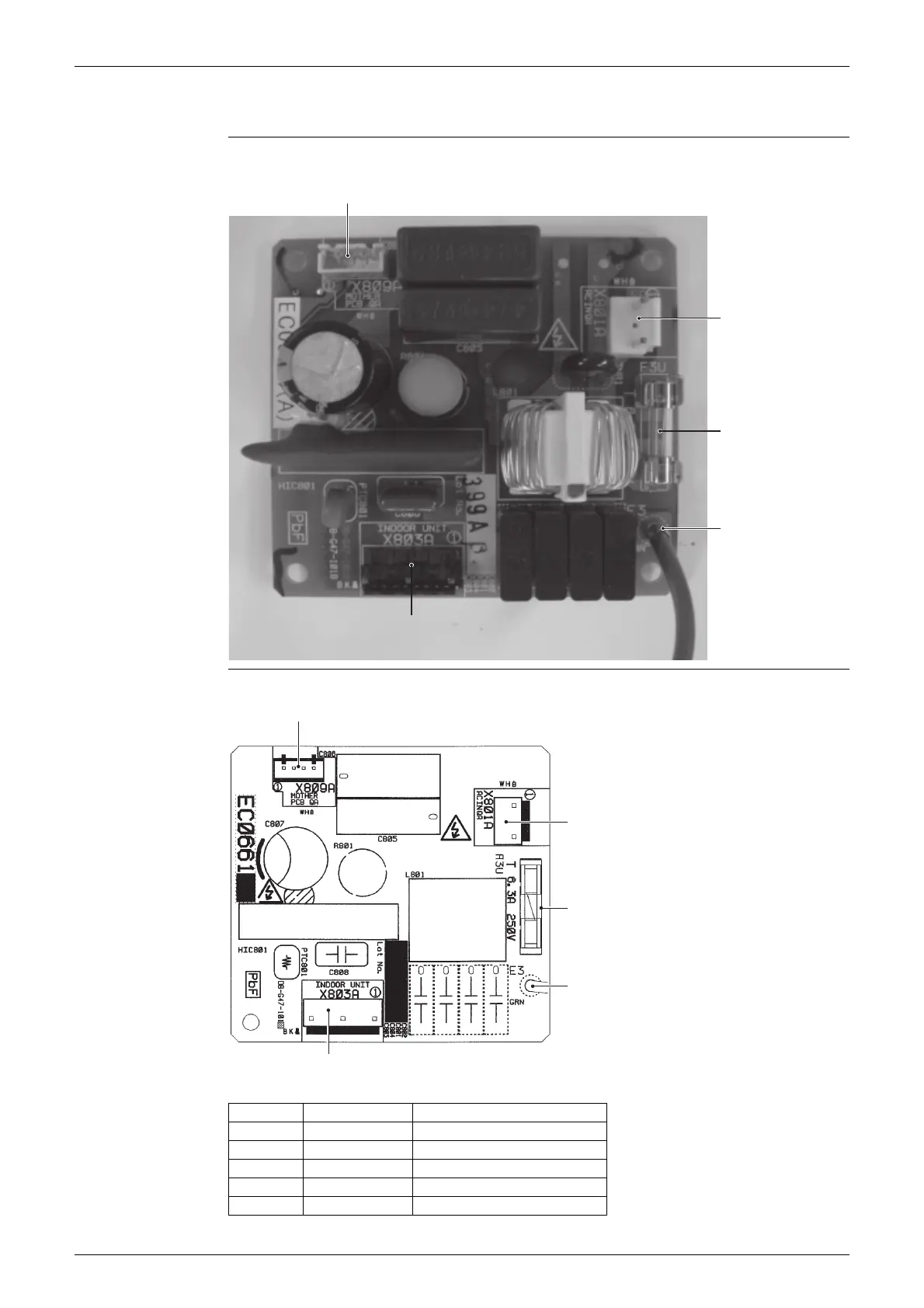

2.5 QA PCB - A5P
QA PCB - single phase
QA PCB - A5P
white
X809A
X801A white
Fuse F3U
6,3A 250V
Green
black
X803A
X809A
X801
A
X803A
F3U
E3
Connector Color Connected to - function
X801A White X2M [8 - 9] by V5C
X803A Black X27A of main PCB A1P
X809A White X9A of invertor PCB A4P
F3U - Fuse 6,3A / 250V
E3 Green Earth

Daikin Altherma HT Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-410A
Water Outlet Temperature	Up to 80°C
Operating Temperature Range	-20°C to 35°C
Power Supply	3-phase, 400V
Energy Efficiency Class (Heating)	A++
